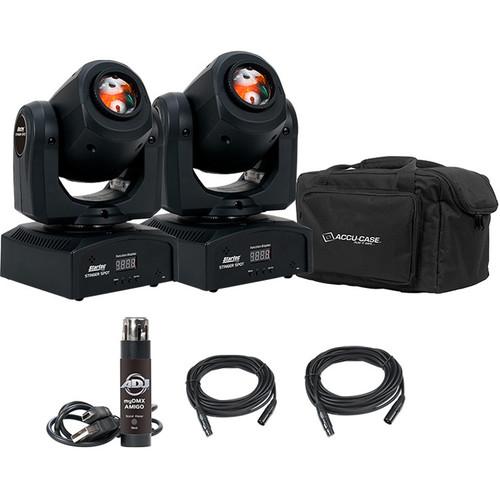

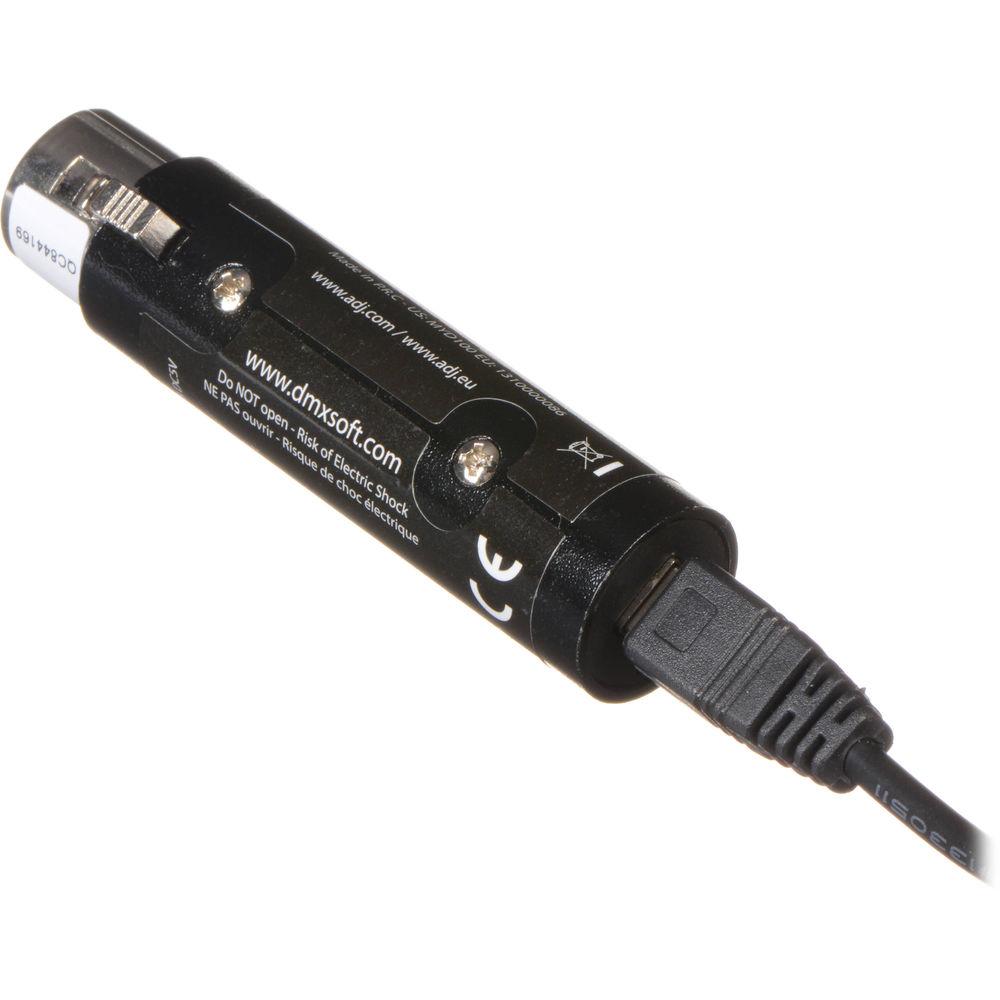

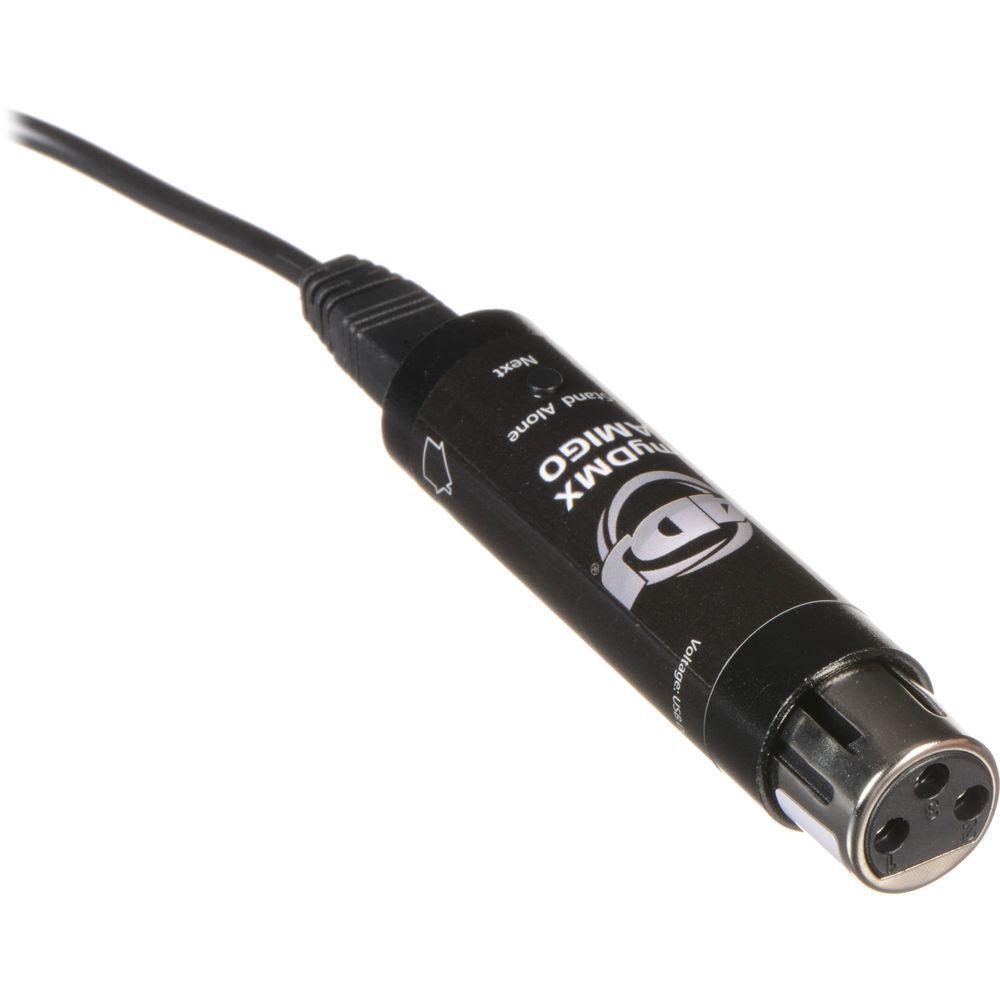

Product description The Stinger Spot DMX Moving Head Kit from American DJ includes two American DJ LED 10W Stinger Spots, a myDMX Amigo controller, an F4 padded bag for all products, an Accu-Cable 15' 3-pin DMX cable, and a 10' 3-pin DMX cable. This kit can be used by DJs, in small clubs, bars, roller rinks, bowling centers, and other mobile-entertainment applications. - Stinger Spot - Startec Series Mini LED Moving Head Light (Black) The black Stinger Spot - Startec Series Mini LED Moving Head Light from American DJ is designed for lighting installations and live performance applications such as at parties, bars, small venues, and clubs. It features a 10-watt, manual-focus, white LED light source (rated at 50,000 hours) that generates a 13° beam angle, all within a compact, fan-cooled moving head.The color wheel has seven colors (plus white and split colors) and the independent gobo wheel includes seven fixed gobos with shake effect and scroll mode, as well as a spot pattern. It can be dimmed between 0 and 100%, with five selectable dimming curves (standard, stage, TV, architectural, theater). The electronic shutter of the light enables a pulse effect, a variable speed strobe, and a random strobe. The unit has 540° of pan, 210° of tilt, and 8- and 16-bit movement resolutions and inversion modes for both.For controls, the unit features two DMX channel modes (9 and 11 channels) with XLR 3-pin DMX in and out connectors. Multiple units can be connected to create complex lighting installations. The unit also features a sound activation mode that utilizes an internal microphone, as well as an internal show mode with four built-in shows. The LED display on the front panel shows DMX addressing and function settings, controllable via the four-button interface. The Stinger Spot ships with an omega mounting bracket and a power cable.
-
- High-output mini moving head
- LED Source: 10W white LED source (rated at approximately 50,000 hours)
- 7 colors + white
- White
- Red
- Orange
- Yellow
- Green
- Blue
- Light blue
- Pink
- 7 fixed gobos + spot
- Separate color & gobo wheels
- Manual focus
- 3 Operational Modes: DMX, Sound Active, and Internal Show control modes
- 2 DMX channel modes: 9 and 11 channel modes
- 4 built-in shows
- Gobo shake effect
- Gobo scroll mode
- Beam Angle: 13°
- 540° pan / 210° tilt (8- or 16-bit)
- Pan / Tilt Inversion mode
- 5 selectable Dimming Curves (Standard, Stage, TV, Architectural & Theatre)
- Electronic Shutter: Pulse effect; random strobe slow to fast
- Dimming: 0% - 100%
- Fan Cooled
- Linkable: DMX via 3-pin XLR cable
- Power Consumption: 36W
- Multi-Voltage Operation: 100 - 240 VAC, 50/60Hz (automatic switching)
- Omega bracket included

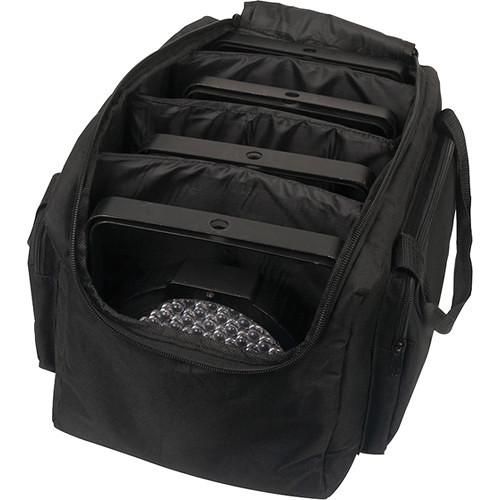

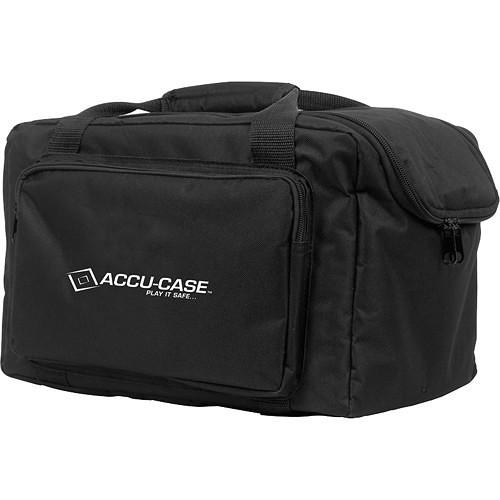

UPC: 818651020243 - Accu-Case F4 Par Bag A soft padded bag designed to hold up to four slim LED par cans, the Accu-Case F4 Par Bag from American DJ features a versatile design for transporting your lights, cables, clamps, or other lighting accessories. Two padded dividers can be removed from the interior to make room for oversized items and exterior zippered pockets can also be used to stow cables or controllers.
- Durable padded gig bag ideal for transporting slim light fixtures, cables, and clamps.
- Accommodates up to four slim LED par cans.
- Two padded dividers may be removed to accommodate other accessories.
- Dual exterior zippered pockets are ideal for holding cables or controllers.

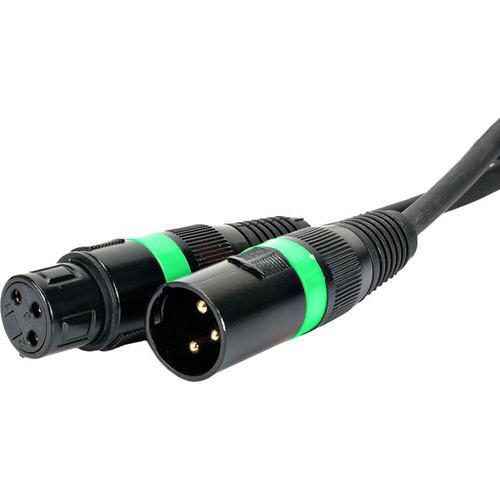

UPC: 819730012586 - Accu-cable 3-pin DMX Cable (15') The 15' American DJ Accu-cable 3-pin DMX Cable is designed for connecting DMX controllers, DMX lights, and other 3-pin DMX512 devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket. UPC: 640282002950
- Accu-cable 3-pin DMX Cable (10') The 10' American DJ Accu-cable 3-pin DMX Cable is designed for connecting DMX controllers, DMX lights, and other 3-pin DMX512 devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket. UPC: 640282090605
In the Box Bundle Items 2 x Stinger Spot - Startec Series Mini LED Moving Head Light (Black) xdfyudyyrevtxeabbzwqsytewb Accu-Case F4 Par Bag Accu-cable 3-pin DMX Cable (15') Accu-cable 3-pin DMX Cable (10')
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Stinger Spot DMX Moving Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Stinger Spot - Startec Series Mini LED Moving Head Light (Black)
| Light Source | 1 x white LED, 10 W | | Life Expectancy | Approximately 50,000 hours | | Beam Angle | 13° | | Dimming | Electronic | | Dimming Range | 0-100% | | Dimmer Curves | 5 x Curves: Standard, stage, TV, architectural, theater | | Shutter/Strobe | Type: electronic
Effects: standard, pulse, random | | Pan Range | 540° | | Tilt Range | 210° | | Pan/Tilt Flip | Yes | | Movement Resolution | 8-bit or 16-bit | | Color Mixing | No | | Color Wheel | 7 x Colors + White: red, orange, yellow, green, blue, light blue, pink
Effects: Split colors, scroll | | Gobo Wheel | 7 x fixed gobos + spot
Effects: Shake, scroll | | Focus Adjustment | Manual | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Sound Active | Yes | | Protocols | DMX | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | DMX Channel Modes | 2 x Modes: 9 and 11 channels | | Power Requirements | 100 to 240 VAC, 50/60 Hz (automatic switching) | | Power Connectors | Input: 1 x IEC
Output: none | | Power Linking | No | | Power Consumption | 36 W | | Duty Cycle | None | | Fuse | 2 A | | Cooling | Fan cooled | | Mounting | Omega bracket | | Working Position | Any safe, secure position | | Dimensions (L x W x H) | 6.8 x 5.8 x 10.8" / 174 x 145 x 273 mm | | Weight | 7.0 lb / 3.2 kg | | | | Box Dimensions (LxWxH) | 13.858 x 13.071 x 10.236" | - Accu-Case F4 Par Bag
| | | Interior Dimensions | 14 x 10 x 9.2" / 35.6 x 25.4 x 23.5 cm | | | | Closure Type | Zipper | | Carry and Transport Options | Handle | | | | Box Dimensions (LxWxH) | 14.9 x 11.7 x 4.2" | - Accu-cable 3-pin DMX Cable (15')
| | | Wire Gauge | 22 AWG | | Conductor Capacitance | 12.8 pF/ft at 1 kHz | | Conductor DC Resistance | 24 Ohms/ft (Up to 1000' / 304.80 m) | | Nominal Impedance | 110 Ohms | | Attenuation | 0.6 dB @ 1 MHz | | | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Number of Conductors | 2 | | Conductor Material | Tinned Copper | | Shielding | 85% Tinned Copper Braid | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | Outer Diameter | 0.09" / 2.29 mm | | Bend Radius | 3.2" / 8.1 cm | | Maximum Pull Tension | 72 lb / 33 kg | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Cable Length | 15' / 4.57 m | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 10.5 x 3.6 x 0.7" | - Accu-cable 3-pin DMX Cable (10')
| | | Wire Gauge | 22 AWG | | Conductor Capacitance | 12.8 pF/ft at 1 kHz | | Conductor DC Resistance | 24 Ohms/ft (Up to 1000' / 304.80 m) | | Nominal Impedance | 110 Ohms | | Attenuation | 0.6 dB @ 1 MHz | | | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Number of Conductors | 2 | | Conductor Material | Tinned Copper | | Shielding | 85% Tinned Copper Braid | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | Outer Diameter | 0.09" / 2.29 mm | | Bend Radius | 3.2" / 8.1 cm | | Maximum Pull Tension | 72 lb / 33 kg | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Cable Length | 10' / 3.05 m | | Weight | 0.3 lb / 0.1 kg | | | | Box Dimensions (LxWxH) | 11.3 x 3.6 x 0.4" |
