User Manual for American DJ Sweeper Beam Quad LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Sweeper Beam Quad LED
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Sweeper Beam Quad LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

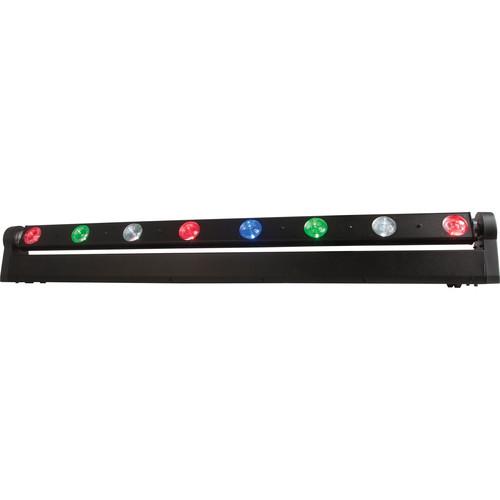

Product description The American DJ Sweeper Beam Quad LED is a lighting fixture with quick sweeping narrow beams combined with an 8-Zone RGBW LED chase. It offers LED pulse and strobe effects. This fixture features eight 8W bright, quad LEDs with a narrow beam angle of 3.4°, 4 DMX channel modes, and a 4-channel LED DMX menu. The Sweeper Beam LED Fixture can be controlled via its own built-in programs, a DMX controller (available separately), or the easy-to-use UC3 Controller (available separately). It is designed for stages, nightclubs, and mobile entertainers. This fixture can also be used in multiples. - Lighting fixture with quick sweeping narrow beams combined with an 8-Zone LED chase
- LED pulse and strobe effect
- Four-button DMX LED display
- Three operational modes including DMX controller, Master/Slave, and Sound Active
- Four DMX channel modes (1, 6, 35, or 39 channels)
- 0 to 100% electronic dimming
- Includes sound-activated built-in programs
- 270° tilt from smooth Stepper Motors
- Extremely long life (50,000 hour rating)
- Includes mounting brackets to mount on a wall or set on the ground
- Safety hook on the rear panel
- Multi-voltage operation of 100 to 240 VAC, 50/60 Hz via the IEC socket
- IEC AC in/out socket on the rear end for daisy-chain power can connect up to 4 units @ 120V and 7 units @ 230V
- Compatible with ADJ UC3 series easy-to-use controllers (available separately)
- Maximum power consumption of 81W
UPC: 819730010568 In the Box American DJ Sweeper Beam Quad LED Fixture Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Sweeper Beam Quad LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Sweeper Beam Quad LED Specs | Compatible With | UC3 series easy-to-use controllers (available separately) | | Number of LEDs | 8 x 8 W RGBW | | Channels | 4 DMX channel modes (1, 6, 35, or 39 channels) | | LED Display | 4-button DMX | | Operational Modes | 3 (DMX controller, Master/Slave, and Sound Active) | | Protocol | DMX-512 | | Dimming Range | 0 to 100% (electronic) | | Effect | LED pulse and strobe | | Tilt | 270° tilt from smooth Stepper Motors | | Life | 50,000 hour-rated | | Beam Angle | 3.4° | | Power | Multi-voltage operation
100 to 240 VAC, 50 / 60 Hz via IEC socket | | Maximum Power Consumption | 81 W | | Dimensions (L x W x H) | 38.5 x 3.0 x 5.3" (97.8 x 7.6 x 13.5 cm) | | Weight | 14.0 lb (6.4 kg) | | | | Package Weight | 13.8 lb | | Box Dimensions (LxWxH) | 41.0 x 7.5 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
