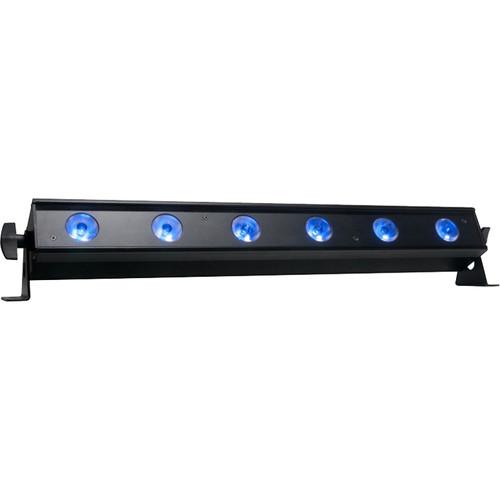

Product description The American DJ UB 6H is a 22.5"-long, RGBAW+UV LED linear fixture designed to produce bright ambient lighting and variable color washes to enhance the atmosphere of your space or mobile light show. With six bright 6W (6-in-1) HEX LEDs and a 40° beam angle, it is well suited for venue up-lighting, dance floor color washing, or setting the mood in a restaurant.The UB 6H offers many creative options such as Auto Run, Program, Sound Active, RGBAW+UV Dimmer, MDX-512, and Static Color modes, as well as 63 built-in color macros, 0-100% dimming, and variable-speed strobe. It can be programmed from its on-board 4-button LED menu, from the ADJ UC IR wireless remote (included), or for precise control, via four DMX channel modes.Other features include flicker-free operation (ideal when used for video applications), three-section pixel control, and an auto-sensing power supply. You can also daisy-chain power for up to 29 fixtures.The UB 6H comes equipped with Quick Align magnetic end-locking technology, which allows for a quick & easy set up and seamless output of light with no breaks of color. A mounting bracket is also included. - 6 x 6W RGBAW+UV (6-in-1) HEX LEDs – rated at approximately 50,000 hours
- 22.5" indoor linear fixture provides vibrant, variable RGBAW+UV (red, green, blue, amber, white, ultraviolet) color mixing for washing stages, walls, and dance floors
- 6 x operational modes: Auto Run, Program, Sound Active, RGBAW+UV Dimmer, Static Color, DMX-512
- 63 x built-in color macros
- Variable LED pulse & strobe effect
- Electronic dimming: 0-100%
- Flicker-free light for use with video applications
- DMX LED display with 4-button menu for easy navigation
- Compatible with ADJ UC IR wireless remote (included) and Airstream IR (free download, transmitter available separately)
- Daisy-chain power for up to 29 fixtures
- Universal auto-sensing power supply
- Quick Align magnetic end-locking allows for seamless output of light with no breaks of color
- Includes brackets for wall/ceiling mounting or to install on the floor for wash effect on walls
UPC: 818651020465 In the Box American DJ UB 6H - RGBAW+UV LED Linear Fixture (22.5") ADJ UC IR Wireless Remote Mounting Bracket IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ UB 6H - RGBAW UV LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ UB 6H Specs | Light Source | 6 x 6 W RGBAW+UV (6-in-1) HEX LEDs | | Life Expectancy | Approximately 50,000 hours | | Colors | RGBAW+UV color mixing (red, green, blue, amber, white, ultraviolet)

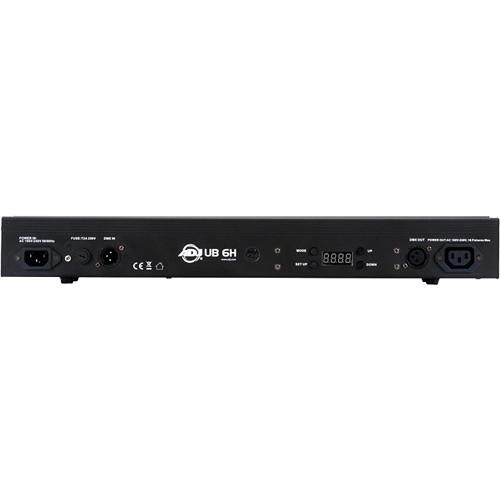

63 x built-in color macros | | Beam Angle | 40° | | Dimming | Electronic: 0-100% | | Operation Modes | Auto Run, Program, Sound Active, RGBAW+UV Dimmer, Static Color, DMX-512 | | Pixel Configuration | 3-section pixel control | | Built-In Programs | LED pulse and strobe effect | | DMX Connectors | Input Connector: 3-pin XLR
Output Connector: 3-pin XLR | | DMX Channel Modes | 4 x DMX Channel Modes: 6, 10, 12 or 18 | | Display/Controls | DMX LED display with 4-button menu | | Wireless Control | ADJ UC IR wireless remote (included)
Airstream IR (free download, transmitter available separately) | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Maximum 29 units | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Consumption (Maximum) | 30 W | | Dimensions (LxWxH) | 22.5 x 2.5 x 3.8" / 57.2 x 6.4 x 9.5 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 24.0 x 6.5 x 5.0" |
