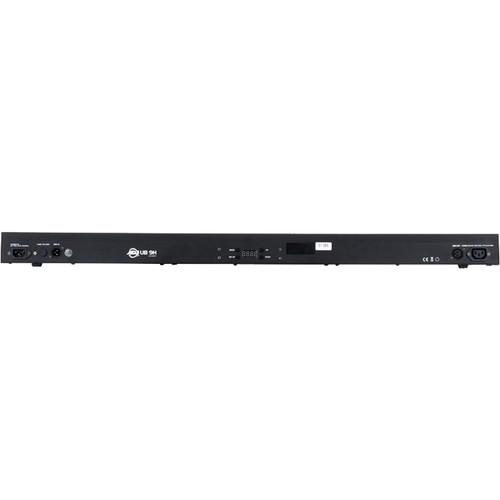

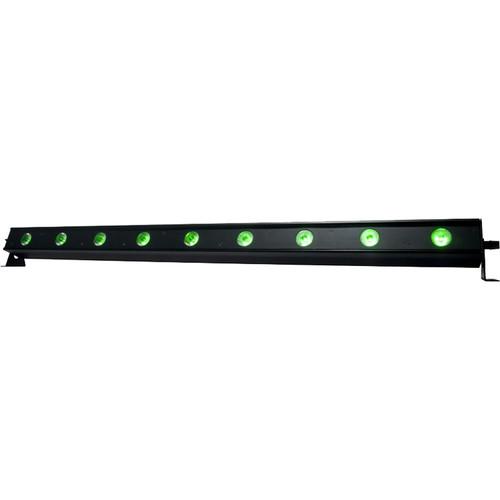

User Manual for American DJ UB 9H - RGBAW UV LED Linear Fixture Click to enlarge the picture
Contents of the user manual for the American DJ UB 9H - RGBAW
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ UB 9H - RGBAW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

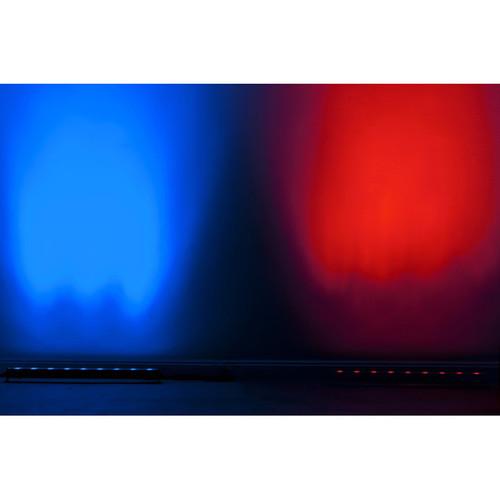

Product description The American DJ UB 9H is a 41.75"-long, RGBAW+UV LED linear fixture designed to produce bright ambient lighting and variable color washes to enhance the atmosphere of your space or mobile light show. With nine bright 10W (6-in-1) HEX LEDs and a 40° beam angle, it is well suited for venue up-lighting, dance floor color washing, or setting the mood in a restaurant.The UB 9H offers many creative options such as Auto Run, Sound Active, RGBAW+UV Dimmer, DMX-512, and Static Color modes, as well as 35 built-in color macros, 0-100% dimming, and variable-speed strobe. It can be programmed from its on-board 4-button LED menu, from the ADJ UC IR wireless remote (included), or for precise control, via six DMX channel modes.Other features include flicker-free operation (ideal when used for video applications), three- or six-section pixel control, and an auto-sensing power supply. You can also daisy-chain power for up to 15 fixtures.The UB 9H comes equipped with Quick Align magnetic end-locking technology, which allows for a quick & easy set up and seamless output of light with no breaks of color. A mounting bracket is also included. - 9 x 10W RGBAW+UV (6-in-1) HEX LEDs – rated at approximately 50,000 hours
- 41.75" indoor linear fixture provides vibrant, variable RGBAW+UV (red, green, blue, amber, white, ultraviolet) color mixing for washing stages, walls, and dance floors
- 5 x operational modes: Auto Run, Sound Active, RGBAW+UV Dimmer, Static Color, DMX-512
- 35 x built-in color macros
- Variable LED pulse & strobe effect
- Electronic dimming: 0-100%
- Flicker-free light for use with video applications
- 3- or 6-section pixel control
- DMX LED display with 4-button menu for easy navigation
- Compatible with ADJ UC IR wireless remote (included) and Airstream IR (free download, transmitter available separately)
- Daisy-chain power for up to 15 fixtures
- Universal auto-sensing power supply
- Quick Align magnetic end-locking allows for seamless output of light with no breaks of color
- Includes brackets for wall/ceiling mounting or to install on the floor for wash effect on walls
UPC: 818651020458 In the Box American DJ UB 9H - RGBAW+UV LED Linear Fixture (41.75") IR Remote for Inno Pocket Spot xcxvsuwdcqfuuaetfxvfrdteaxvxtxdbufu Mounting Bracket IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ UB 9H - RGBAW UV LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ UB 9H Specs | Light Source | 9 x 10 W RGBAW+UV (6-in-1) HEX LEDs | | Life Expectancy | Approximately 50,000 hours | | Colors | RGBAW+UV color mixing (red, green, blue, amber, white, ultraviolet)
35 x built-in color macros | | Beam Angle | 40° | | Dimming | Electronic: 0-100% | | Operation Modes | Auto Run, Sound Active, RGBAW+UV Dimmer, Static Color, DMX-512 | | Pixel Configuration | 3- or 6-section pixel control | | Built-In Programs | LED pulse and strobe effect | | DMX Connectors | Input Connector: 3-pin XLR
Output Connector: 3-pin XLR | | DMX Channel Modes | 6 x DMX Channel Modes: 2, 3, 4, 6, 7, or 11 | | Display/Controls | DMX LED display with 4-button menu | | Wireless Control | ADJ UC IR wireless remote (included)
Airstream IR (free download, transmitter available separately) | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Maximum 15 units | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Consumption (Maximum) | 35 W | | Dimensions (LxWxH) | 41.8 x 2.5 x 3.5" / 106.0 x 6.4 x 8.9 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 43.0 x 14.0 x 11.0" |
