User Manual for American DJ Ultra Hex Bar 12 - LED Linear Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Ultra Hex Bar 12
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Ultra Hex Bar 12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

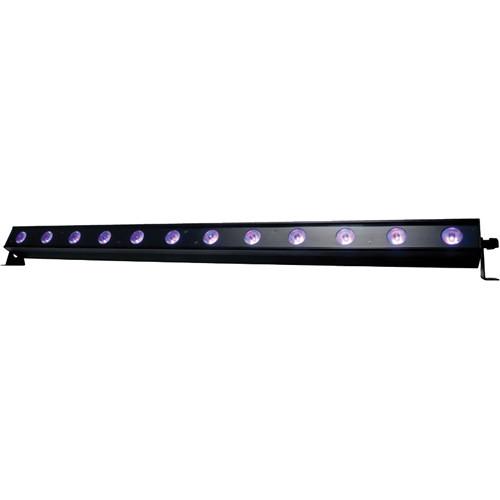

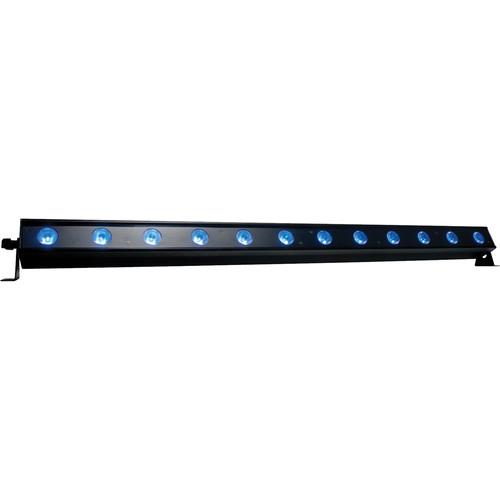

Product description The Ultra HEX Bar 12 from American DJ is a 40" versatile LED linear fixture that has twelve, 10W, 6-in-1 HEX LEDs (RGBAW + UV). The 40° beam angle makes it especially useful for wide washes and its dual mounting brackets also function as floor stands, making it ideal for uplighting applications. The Ultra HEX Bar 12's professional features include: 5 DMX modes (6, 7, 8, 12, & 18 channel), 6 operational modes, 5 dimming curves, flicker-free operation, and a 4-button DMX menu with digital display. Plus, American DJ's patent-pending "Quick Align" system features end-locking magnets, enabling multiple HEX bars to be easily linked end-to-end for seamless output with no breaks of color. You can daisy-chain up to 7 units together via the fixtures built-in IEC in/out power connectors.The Ultra HEX Bar 12 is compatible with the American DJ RFC, easy-to-use, wireless infrared remote. Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs. An AC power cable and two mounting brackets are also included. UPC: 819730015266 In the Box American DJ Ultra Hex Bar 12 - LED Linear Fixture AC Cable 2 x Mounting Brackets Limited 1-Year Warranty Limited 2-Year Warranty on LEDs Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ultra Hex Bar 12 - LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Ultra Hex Bar 12 Specs | LEDs | 40" (102 cm) indoor linear bar with 12 x 10 W ultra-bright, HEX (RGBAW + UV) 6-in-1 LEDs | | Color Mixing | Smooth RGBAW + UV color mixing | | DMX Channel Modes | 5 x Channels: 6, 7, 8 ,12, and 18 channels | | Operational Modes | Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color, and DMX-512 mode | | Beam Angle | 40° | | Flicker Free Operation | Yes, (no flickering on camera) | | Macros | 63 x built-in color macros | | Dimmer Curves | 5 x selectable dim curves (Standard, stage, TV, architectural, & theater) | | Effects | LED pulse and strobe effect | | LCD Display | 2x8" (51 x 203 mm) (character display | | Electronic Dimming | 0 to 100% | | Remote Capable | American DJ RFC remote with RF control up to 30' (10 m) (sold separately) | | LED Life | Rated at approximately 50,000 hours | | Power Draw | 55 W | | Linkable | DMX via 3-pin XLR cable
Power via IEC daisy-chain power link (up to 7 Ultra Hex Bar 12 fixtures) | | Voltage Requirements | Multi-Voltage Operation: 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 40.25 x 2.75 x 4.75" (1020 x 70 x 122 mm) | | Weight | 11 lb (4.74 kg) | | | | Package Weight | 15.15 lb | | Box Dimensions (LxWxH) | 41.0 x 7.25 x 5.5" |
