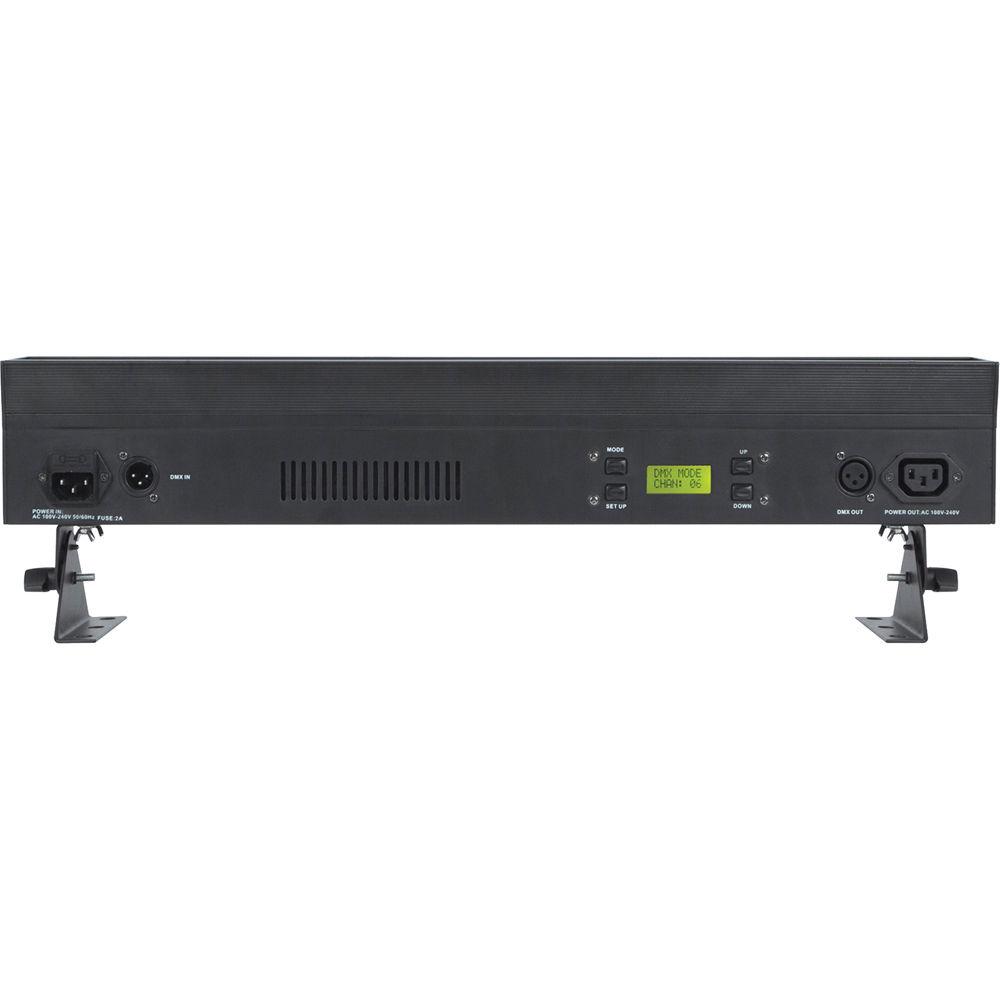

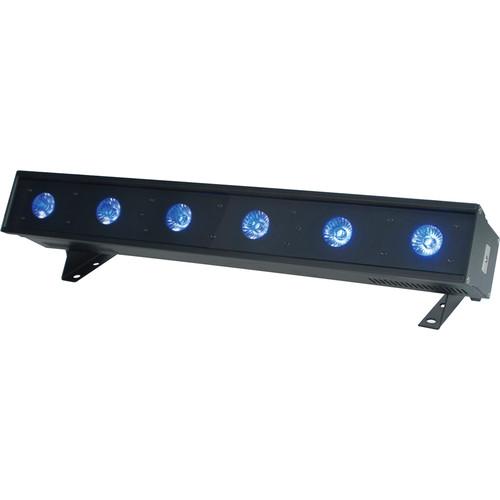

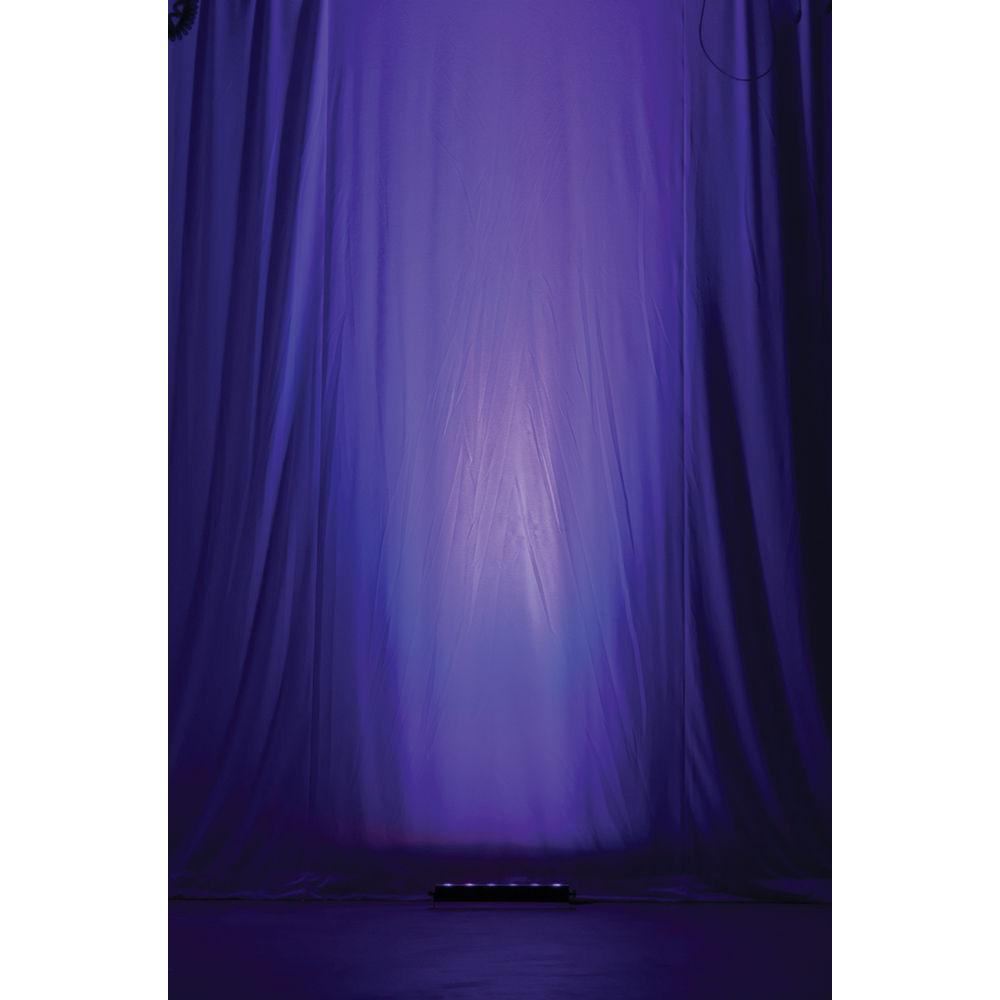

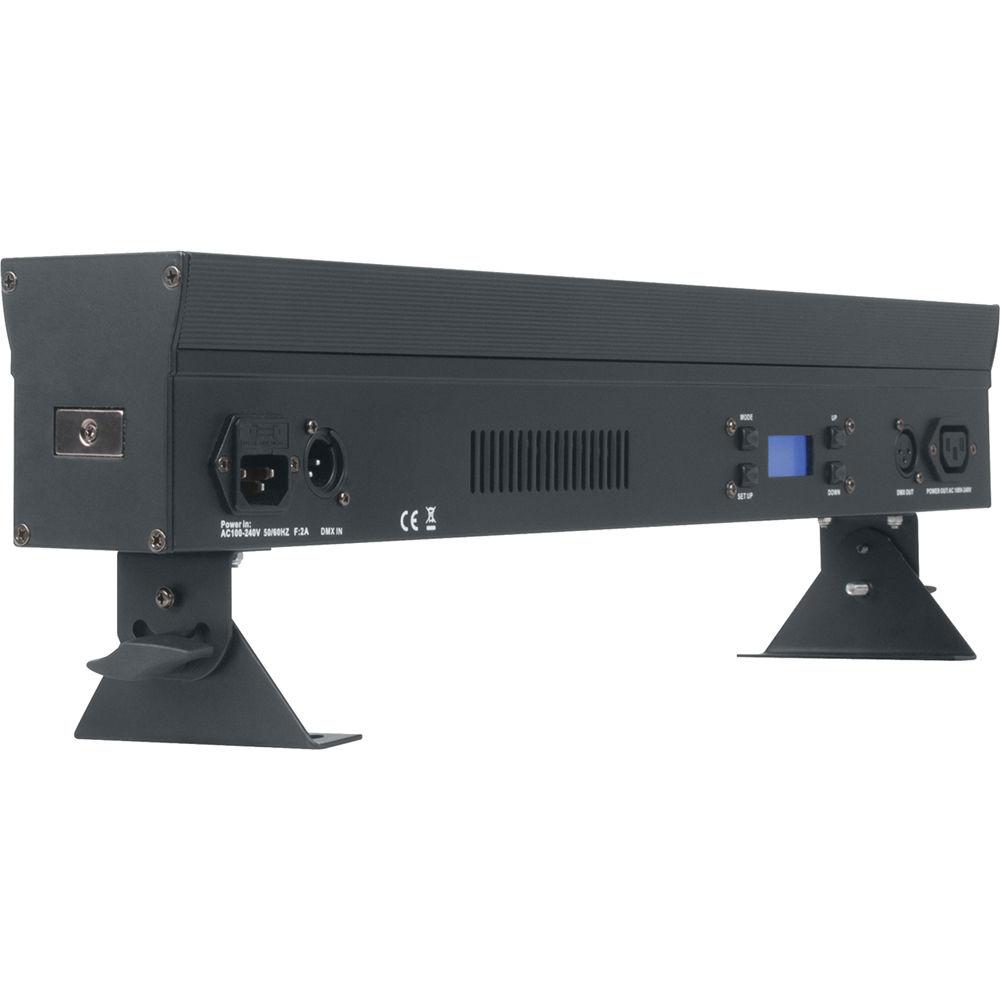

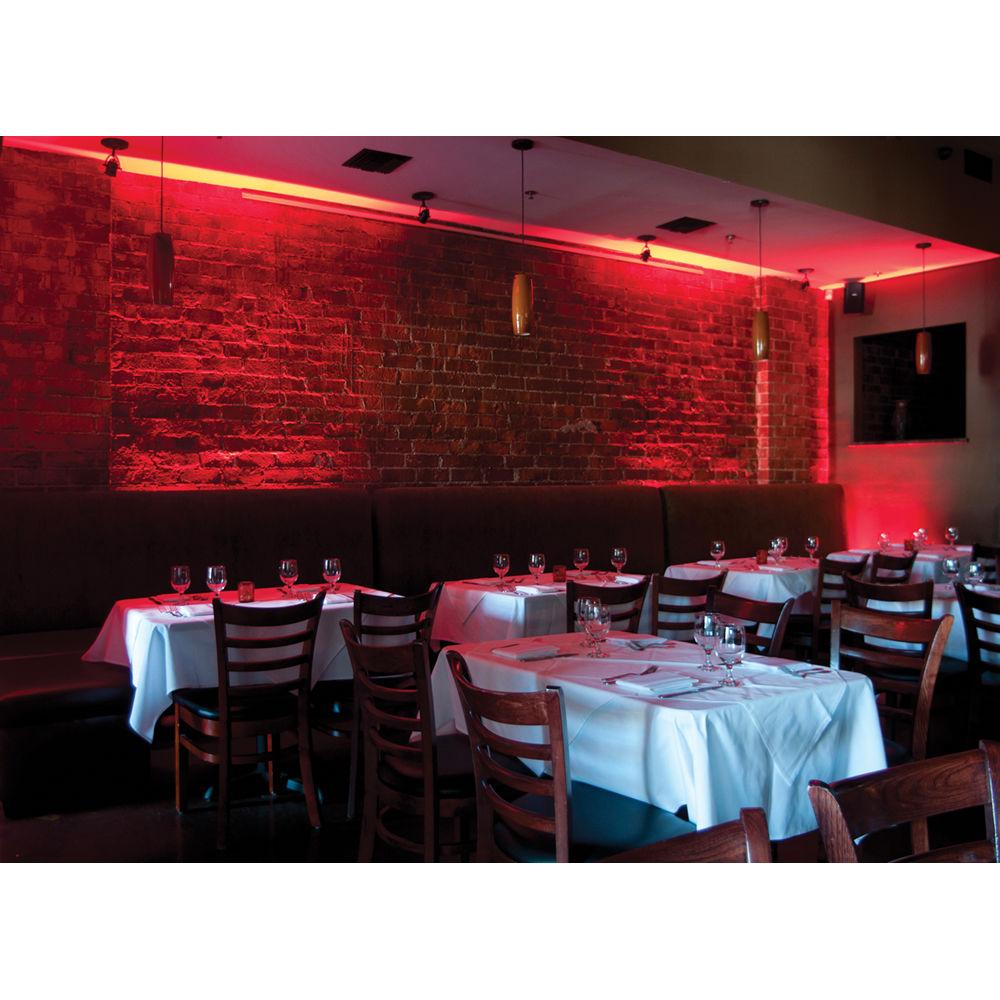

Product description The Ultra HEX Bar 6 from American DJ is a 23" versatile LED linear fixture that has six, 10W, 6-in-1 HEX LEDs (RGBAW + UV). The 40° beam angle makes it especially useful for wide washes and its dual mounting brackets also function as floor stands, making it ideal for uplighting applications. The Ultra HEX Bar 6's professional features include: 5 DMX modes (6, 7, 8, 12, & 18 channel), 6 operational modes, 5 dimming curves, flicker-free operation, and a 4-button DMX menu with digital display. Plus, American DJ's patent-pending "Quick Align" system features end-locking magnets, enabling multiple HEX bars to be easily linked end-to-end for seamless output with no breaks of color. You can daisy-chain up to 12 units together via the fixtures built-in IEC in/out power connectors.The Ultra HEX Bar 6 is compatible with the American DJ RFC, easy-to-use, wireless infrared remote. Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs. An AC power cable and two mounting brackets are also included. UPC: 819730013033 In the Box American DJ Ultra Hex Bar 6 - LED Linear Fixture AC Cable 2 x Mounting Brackets Limited 1-Year Warranty Limited 2-Year Warranty on LEDs Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ultra Hex Bar 6 - LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Ultra Hex Bar 6 Specs | LEDs | 23" (0.5 m) indoor linear bar with 6 x 10 W ultra-bright, HEX (RGBAW + UV) 6-in-1 LEDs | | Color Mixing | Smooth RGBAW + UV color mixing | | DMX Channel Modes | 5 x Channels: 6, 7, 8 ,12, and 18 channels | | Operational Modes | Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color, and DMX-512 mode | | Beam Angle | 40° | | Flicker Free Operation | Yes, (no flickering on camera) | | Macros | 63 x built-in color macros | | Dimmer Curves | 5 x selectable dim curves (Standard, stage, TV, architectural, & theater) | | Effects | LED pulse and strobe effect | | LCD Display | 2x8" (51 x 203 mm) (character display | | Electronic Dimming | 0 to 100% | | Remote Capable | American DJ RFC remote with RF control up to 30' (10 m) (sold separately) | | LED Life | Rated at approximately 50,000 hours | | Power Draw | 55 W | | Linkable | DMX via 3-pin XLR cable
Power via IEC daisy-chain power link (up to 12 Ultra Hex Bar 6 fixtures) | | Voltage Requirements | Multi-Voltage Operation: 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 23 x 4.5 x 6.5" (585 x 110 x 165 mm) | | Weight | 6 lb (2.8 kg) | | | | Package Weight | 34.1 lb | | Box Dimensions (LxWxH) | 31.0 x 14.0 x 11.0" |
