User Manual for American DJ Ultra Hex Par 3 30W LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Ultra Hex Par 3
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Ultra Hex Par 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

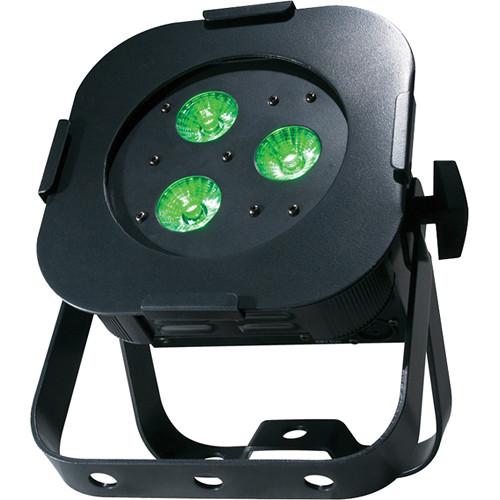

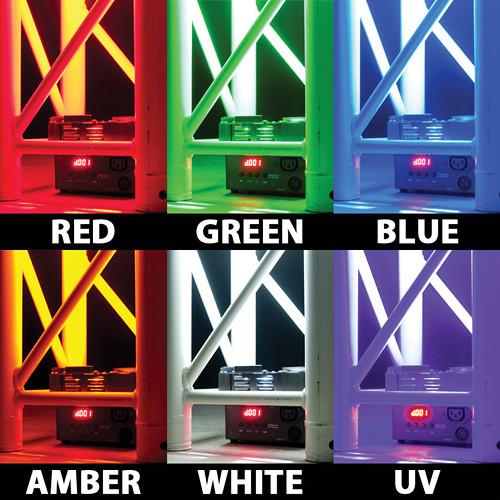

Product description The Ultra Hex Par 3 30W LED Fixture from American DJ is a versatile LED par fixture with 3 x 10W, 6-in-1 Hex LEDs. With a 40° beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white, and UV LEDs. This fixture is not only suitable for lighting stages but also works well for lighting up a venue, thanks to its power and DMX connectors.The fixture includes 5 DMX modes, 5 operational modes, 5 dimming curves, a 4-button DMX menu with digital display, and offers flicker-free operation. Up to 20 units can be daisy chained via the built-in IEC I/O power connectors. The dual yoke allows fixture to be hung or set on the ground. A gel frame is included with the fixture for optional diffusion filters. - Wash fixture with 3 x Red, Green, Blue, Amber, White, and UV LED pixels
- Smooth RGBAW + UV color mixing

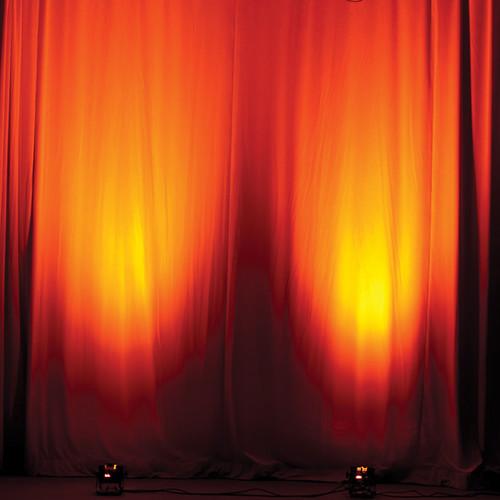

- Suitable for architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat on performers

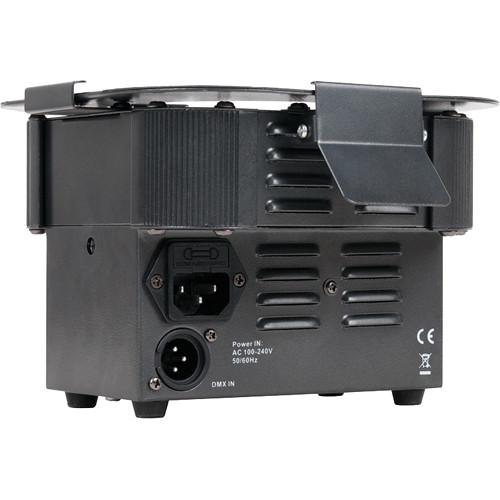

- Intelligently designed power & DMX I/O sit sideways so that the unit can be set flat on the ground or set inside truss
- 5 DMX Modes: 6, 7, 8, 11, and 12 channel modes
- 5 Operational Modes: Static Color, Dimmer, Auto Run, Sound Active, and DMX Controlled
- Flicker-free operation (No flickering on camera)
- 5 selectable dim curves (Standard, Stage, TV, Architectural, and Theater)
- LED pulse and strobe effect

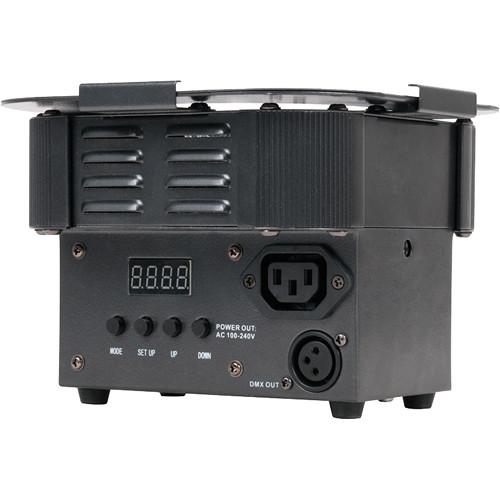

- 4-button DMX digital display on rear panel
- Compatible with American DJ RFC wireless remote control (sold separately)
- Dual yoke allows fixture to be hung or set on the ground
- Data linkable via 3-pin XLR cables
- Power linkable (daisy chainable) via IEC power cables (20 Ultra Hex Par 3 units maximum)
- Built-in automatic voltage switch auto senses the voltage when it is plugged into the power source
- Includes a gel frame for optional diffusion filters
UPC: 819730012289 In the Box American DJ Ultra Hex Par 3 30W LED Fixture Gel Frame Dual Yoke Limited 1-Year Warranty on Fixture Limited 2-Year Warranty on LED Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ultra Hex Par 3 30W LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Ultra Hex Par3 Specs | LEDs | 3 x 10 W 6-in-1 Hex LEDs, Total 30 W | | Beam Angle | 40° | | Power Draw | 26 W | | Daisy Chain | 20 fixtures maximum | | Fuse | 1 A | | Dimming | 0 to 100% | | Colors | RGBAW + UV color mixing | | Voltage | 100 to 240 VAC, 50 to 60 Hz | | DMX Channels | 5 DMX Modes: 6, 7, 8, 11, & 12 channel mode | | Rigging | Dual Yoke | | Dimensions (L x W x H) | 9.00 x 8.50 x 4.75" (228.60 x 215.90 x 120.65 mm) | | Weight | 5.00 lb (2.27 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 7.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
