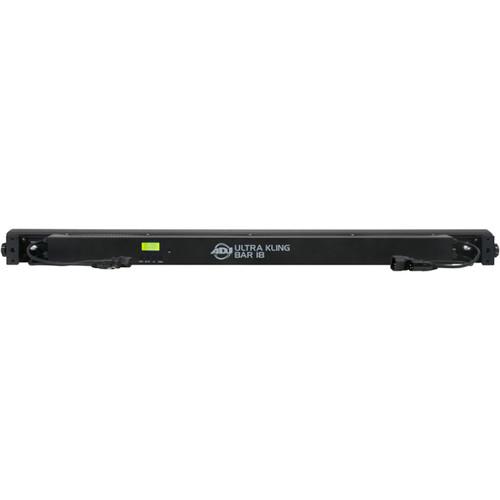

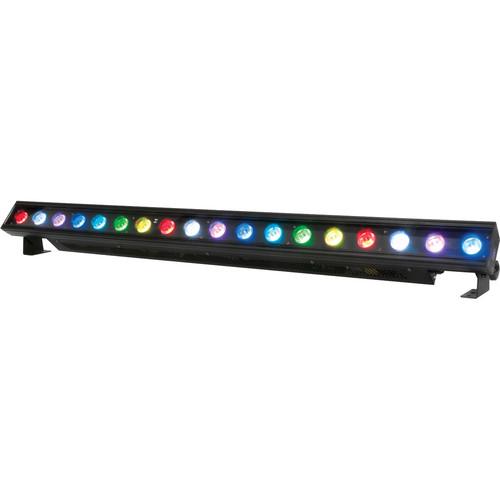

User Manual for American DJ Ultra Kling LED Bar with 18 Tri RGB LEDs and DMX Pixel Control Click to enlarge the picture
Contents of the user manual for the American DJ Ultra Kling LED Bar
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Ultra Kling LED Bar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

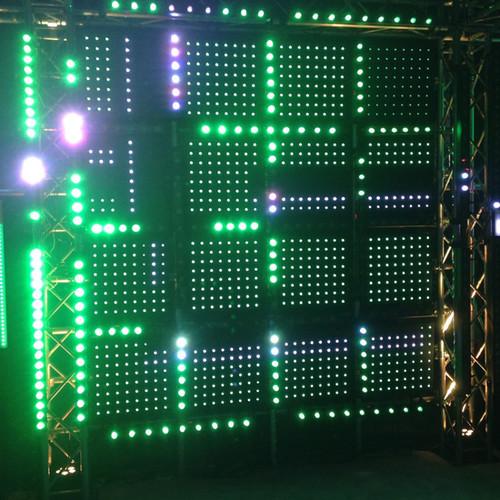

Product description The American DJ Ultra Kling LED Bar with 18 Tri RGB LEDs and DMX Pixel Control is designed for live applications such as for theater and DJing. The unit is a 3.3' (1 m) linear fixture with 18 3-Watt TRI LEDS and individual pixel control. This allows the fixture to work with Arkaos Kling-Net software to project low-resolution video across one or multiple fixtures and can be used for installed applications such as at a bar, lounge, club, restaurant, and more.
The fixture features 5 operation modes (DMX, Sound Active, Net Control, Dimmer, and Auto Run), 7 channels of DMX control over 3-PIN XLR connections (ch 3,4,6,8,9,15,54), Kling Net Control, Art-Net Control, 32 color macros, a 40° beam angle, 0 to 100% dimming, shutter control, and an adjustable strobe rate. Up to 6 units can be daisy chained together. UPC: 819730011091 In the Box American DJ Ultra Kling LED Bar with 18 Tri RGB LEDs and DMX Pixel Control Limited 1-Year Warranty, Limited 2-Year Warranty on LEDS Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ultra Kling LED Bar with 18 Tri RGB LEDs and DMX Pixel Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Ultra Kling Bar 18 Specs | Light Source | 18 x 3 W TRI LEDS (rated to 50,000 hours) | | Operational Modes | 5: DMX Controlled, Sound Active, Net Control, Dimmer, Auto Run | | Beam Angle | 40° | | Luminance | 393 at 3 M at 40° | | Network / Protocol | Kling Net
Art-Net | | Display | 2 x 8 character LCD | | RJ-45 connector | Yes In/Out | | DMX | 7 DMX Modes: (3,4,6,8,9,15,54 ch) | | DMX Connectors | 3-Pin In/Out | | Programs | 14 | | Macros | 32 | | Dimming Range | 0 to 100% | | Flicker Rate | Flicker free | | Strobe Rate | Adjustable | | Sound Active | Yes | | Power Connection Type | IEC AC In/out | | Input Voltage | 100 to 240 VAC 50/60 Hz | | Power Consumption | 98 W (full on) | | Daisy Chain/Cascading | Up to 6 Ultra Kling Bar 18's | | Dimensions (L x W x H) | 43.50 x 3.25 x 4.50" (110.49 x 8.26 x 11.43 cm) | | Weight | 13.0 lb (5.9 kg) | | | | Package Weight | 16.4 lb | | Box Dimensions (LxWxH) | 48.0 x 8.0 x 7.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
