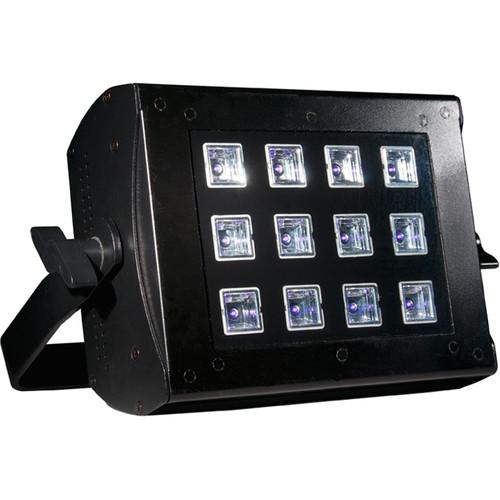

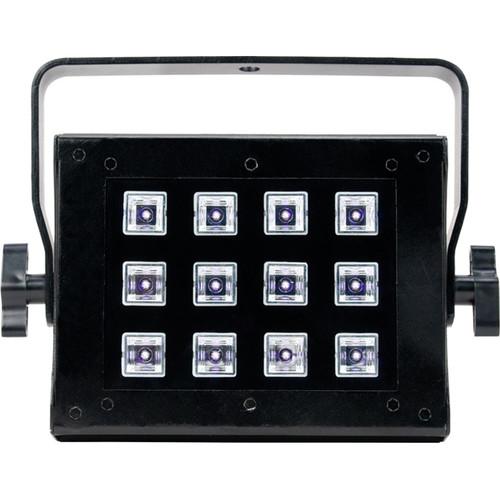

Product description With a compact design ideal for both portable and permanent applications, the American DJ UV Flood 36 is a 36W, UV LED blacklight fixture, which creates broad-beamed ultraviolet rays with the convenience of DMX control. Used to enhance the appearance of white or fluorescent colors with a ghostly glow, it is well suited for clubs, theatrical productions, special-effects installations, mobile light shows, and more. The UV Flood 36 features twelve, 3W LEDs and a 57° beam angle. It can be mounted on walls and ceilings, or positioned on the floor for wash effects on walls or curtains (hanging bracket is included). The fixture can operate as a standalone with three operation modes and a variable strobe effect. It is compatible with the Dotz Par RF wireless remote (available separately). -
- 36W blacklight fixture with twelve 3W UV (ultraviolet) LEDs
- Creates rays of ultraviolet light
- 57° beam angle
- Long-life LEDs rated at approximately 50,000 hours
- Three operation modes: Sound Active, Dimmer Mode, DMX-controlled
- Electronic dimming: 0-100%
- Variable-speed strobe effect
- Three DMX channel modes: 1, 2, 3
- Standalone or master/slave configuration
- 4-button LED display
- Daisy-chain power for up to 26 units at 120V
- DMX linking via 3-pin XLR cable
- Equipped with hanging bracket
- Compatible with the Dotz Par RF wireless remote (available separately)
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 819730015587 In the Box American DJ UV Flood 36 - 36W UV LED Blacklight Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ UV Flood 36 - 36W UV LED Blacklight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ UV Flood 36 Specs | Light Source | 12 x 3 W UV LEDs (ultraviolet)

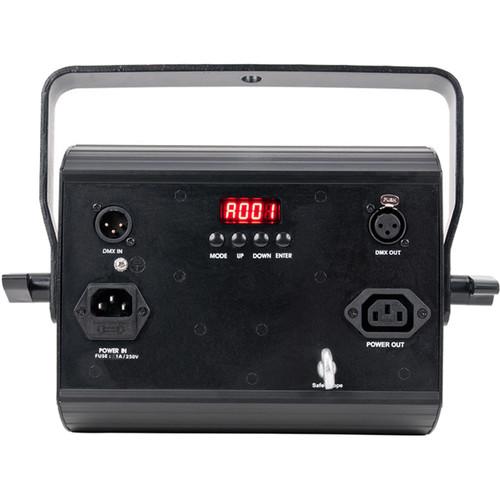

Rated at approximately 50,000 hours | | Beam Angle | 57° | | Wavelength | 395 to 400 nm | | Operation Modes | Sound Active, Dimmer Mode, DMX-controlled | | DMX Channel Modes | 1, 2, 3 | | Electronic Dimming | 0 to 100% | | Effect | Strobe, with variable speed | | DMX Connectors | 3-pin XLR, in/out | | Display | 4-Button DMX LED display | | Wireless Control | Dotz Par RF wireless remote (available separately) | | Power Linking | Up to 26 units at 120 V
Up to 57 units at 240 V | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 35 W (full on) | | Power Connectors | IEC, in/out | | Dimensions (L x W x H) | 11.75 x 9.25 x 4.50" / 298.45 x 234.95 x 114.30 mm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 12.9 x 11.8 x 6.4" |
