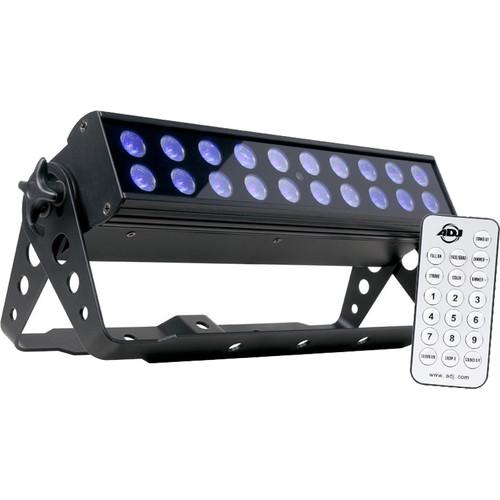

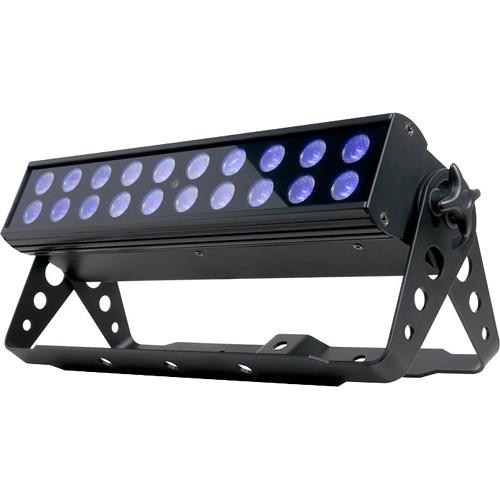

Product description The UV LED BAR20 IR from American DJ is a high output ultraviolet LED backlight that comes with the UC IR wireless remote for easy control of On/Off and strobe speed. It's powered by 20x one Watt UV LEDs with a maximum power draw of only 30W. The beam has an angle of 10° vertical and 40° horizontal. With a LED life of approximately 50,000 hours, the UV LE 20 IR is suitable for washing stages, nightclubs, bowling centers, roller rinks, and fun centers with ultraviolet light. Users can control the fixture from the built-in 3-button LCD menu, DMX control, included UC IR wireless remote, or the Airstream IR APP. - Bright, high output ultraviolet bar
- Long-life LED, low heat output, low power consumption
- Four operational modes: Sound Active, DMX512, Master/Slave, or Manual
- Scissor yoke allows fixture to be hung or set on the ground
- Airstream IR APP compatible with iOS device

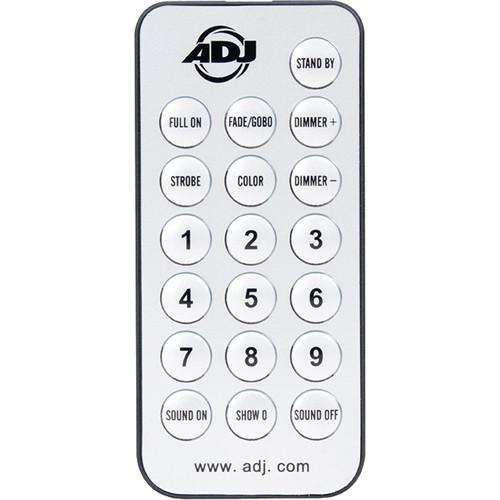

UPC: 818651020366 In the Box American DJ UV LED BAR20 IR Backlight with UC IR Remote Control UC IR Wireless Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ UV LED BAR20 IR Backlight with UC IR Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ UV LED BAR20 IR Specs | LEDs | 20 x 1 W UV LEDs | | Beam Angle | 10° vertical
40° horizontal | | LED Life Expectancy | 50,000 hours | | Operating Modes | Sound Active, DMX-512, Master/Slave, Manual | | DMX Channel Modes | 1/2/3 | | Dimming | 0-100% | | Refresh Rate | 1 kHz | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Power Draw | 30 W | | Daisy Chain | Up to 10 fixtures @ 120 V

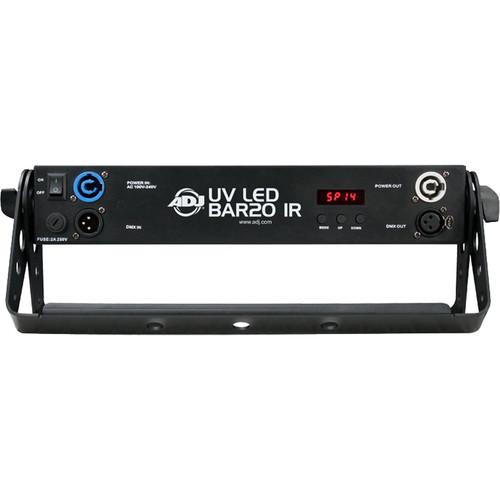

Up to 20 fixtures @ 230 V | | Wavelength | 390-410 nm | | Fuse | 2 Amp | | Power Connector | powerCON In/Out | | DMX Connectors | 3-pin XLR input
3-pin XLR output | | Linking | Via 3-pin XLR cable | | Display | 3-button LED DMX display on rear panel | | Control | On/off switch | | Dimensions | 13.3 x 2.5 x 7.0" (33.4 x 6.1 x 17.5 cm) | | Weight | 5.5 lb (2.45 kg) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 17.9 x 9.0 x 4.5" |
