User Manual for American DJ Vizi Beam 5RX Moving Head Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Vizi Beam 5RX Moving
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Vizi Beam 5RX Moving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

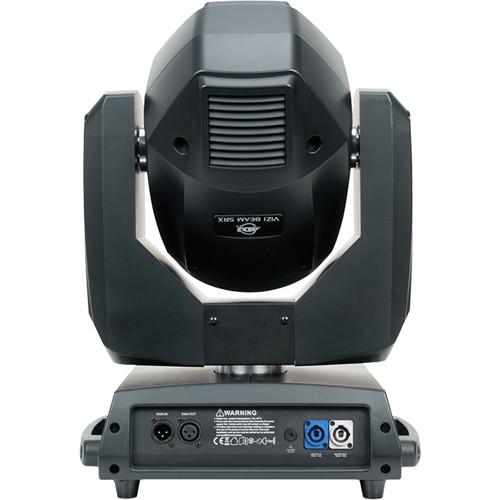

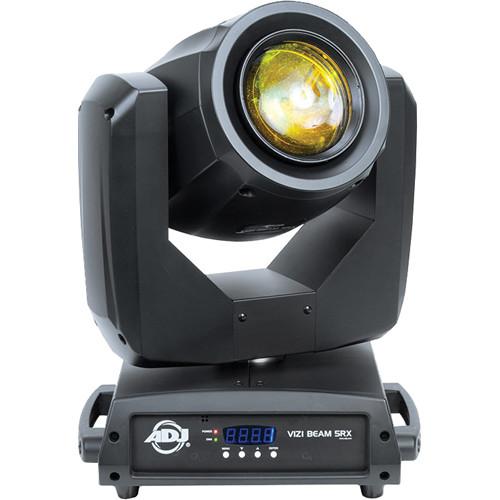

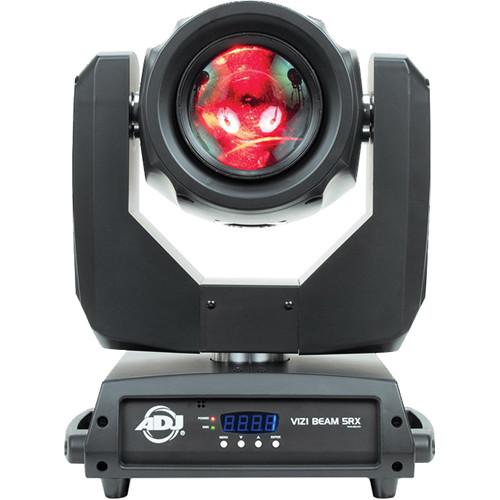

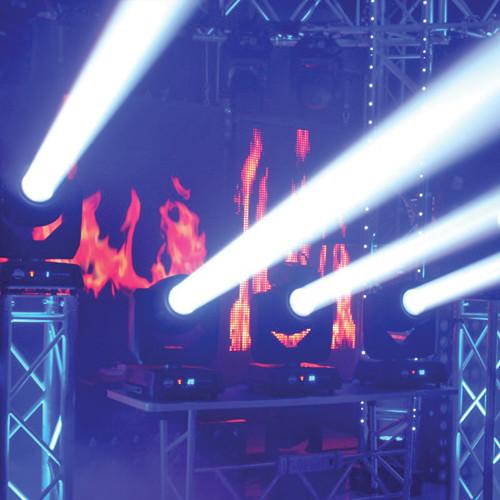

Product description The Vizi Beam 5RX Moving Head Fixture from American DJ features a motorized focus and powerCON in/out for daisy chaining the power. Other professional features include a frost filter to turn the hard edge beam to a wash, 8-facet prism, and stepper motors for quick, precise movement. The fixture's light source is a Philips Platinum 5R discharge lamp (8000˚K, 3,000 hr). The powerful Platinum 5R lamp has an output comparable to a 575W fixture, with double the output of a 250W fixture, and offers a flat, even spot field and more saturation of colors than its predecessor. The Vizi Beam 5RX is faster than previous ADJ moving heads, thanks to its light weight and compact size. Its very tight, 5° beam, combined with high-light output, makes it ideal for applications where a small, precise beam is required. -
- 2 DMX Modes: 16 or 19 Channels
- Gobo scroll mode
- LED DMX 4-button menu system
- 5° beam angle
- Auto X-Y repositioning
- 14 colors + white and split colors
- 17 static, fixed gobos + spot
- 8-facet prism with macros
- Gobo Shake effect
- Independent gobo and color wheels
- 540° Pan and 270° Tilt
- Pan/Tilt invert
- Built-in Pan/Tilt macros
- 16-bit Pan/Tilt positioning
- Motorized focus
- Shutter: Pulse effect; random strobe (slow to fast)
- Electronic Dimming: 0 - 100%
- Frost filter
- Stepper motors with micro stepping
- Omega Quicklock Brackets included
- powerCON In/Out to daisy chain power
- Multi-voltage operation
UPC: 819730015563 In the Box American DJ Vizi Beam 5RX Moving Head Fixture Omega Quicklock Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Vizi Beam 5RX Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Vizi Beam 5RX Specs | DMX Channels | 16 or 19 channels | | Dimming | 0 to 100% (electronic) | | Photometrics | 770,000 lux @ 16.4' (5.0 m), 220,000 lux @ 32.8' (10 m) | | Inputs and Outputs | DMX: 3-Pin XLR In/Out
powerCON In/Out | | Daisy Chain Capability | powerCon In/Out:
3x fixtures max @ 120 V
6x fixtures max @ 230 V
DMX In/Out | | Operating Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 273 W | | Fuse | 7 A | | Light Source | Discharge | | Lamp | Philips Platinum 5R 189 W discharge (8,000 K), 3,000 hr. lamp life | | Dimensions (L x W x H) | 15.5 x 12.75 x 20.5" (394 x 325 x 522 mm) | | Weight | 42 lb (19 kg) | | | | Package Weight | 50.4 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 16.0" |
