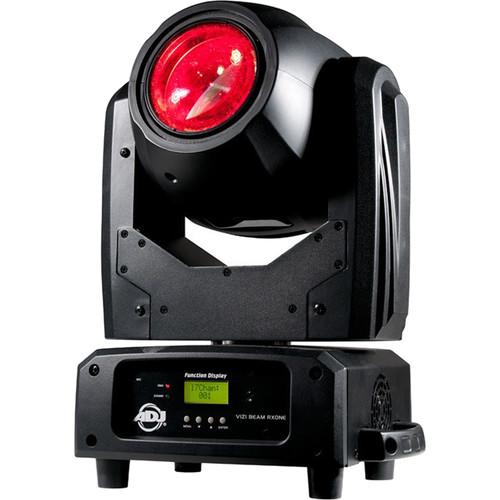

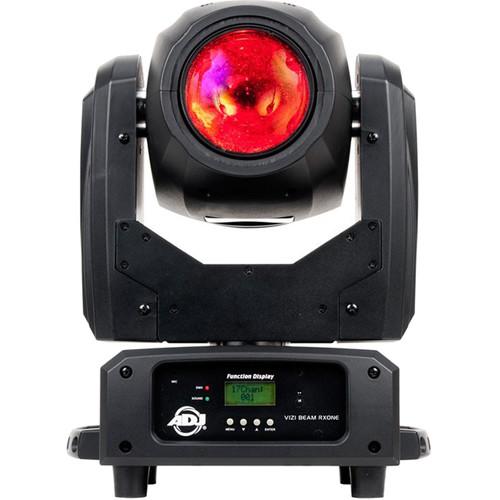

Product description The black Vizi Beam RXONE is a quick, compact moving head fixture from American DJ. With its powerful Osram Sirius HRI 1R 100W discharge lamp, this fixture generates a sharp 3° beam capable of travelling up to 330', and can also apply a frost filter to morph the beam into a 21° wash effect. Its versatility, compact size, and beam strength make it suitable for a wide range of touring and permanent applications in both mid- and large-sized spaces. The color wheel has 14 colors (plus white and split colors) and the gobo wheel includes 15 static/fixed gobos with shake effect and spot patterns. A 16-facet prism can split the light into 16 mini-beams and features macros for beam adjustments. The fixture is fully dimmable and is capable of both pulse and random strobe effects. The unit has 360° pan and 270° tilt, with 16-bit movement resolution, pan/tilt inversion mode, and pan/tilt macros.

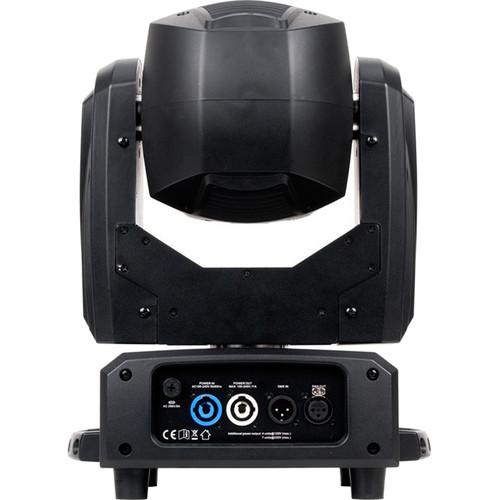

For controls, the unit features two DMX channel modes (15 and 17 channels) with XLR 3-pin DMX input and output connectors. Power linking is also available via powerCON connectors, with support for up to 8 fixtures @ 120V, and 16 fixtures @ 230V. The unit also features a sound activation mode that utilizes an internal microphone, as well as an internal show mode with four built-in shows. The LED display on the front panel shows DMX addressing and function settings, controllable via the four-button interface.
An optional IR wireless remote control is sold separately, which can control full on, standby, strobe, color change, dimming, and sound activation on/off. - Effects
-
- 14 colors plus white & split colors
- 15 static/fixed gobos plus spot
- 3° beam can morph into a 21° wash effect with the frost filter
- 16-facet prism with macros
- Gobo shake effect
- Shutter with pulse and random strobe
- Stepper motors with micro stepping
- Control
-
- Electronic dimming 0-100%
- 16-bit movement resolution
- 360° pan and 270° tilt (with inversion modes)
- Selectable DMX channel modes: 15 or 17 channels
- Link
-
- DMX link the Vizi Beam RXONE via the XLR 3-pin DMX output
- Power link up to 8 fixtures @ 120V or 16 fixtures @ 230V via the powerCON connectors
UPC: 819730018281 In the Box American DJ Vizi Beam RXONE Moving Head Fixture Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Vizi Beam RXONE Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Vizi Beam RXONE Specs | Light Source | Osram SIRIUS HRI 100 W, 9000K | | Life Expectancy | 6,000 hours | | Beam Angle | Beam: 3°
Wash: 21° (frost filter on)
Auto X/Y repositioning | | Illuminance | 99,250 lux @ 33'.0 (10.0 m)
70,030 lux @ 50.0' (15.0 m) | | Color Wheel | 14 x colors; plus white and split | | Gobos | 15 x static/fixed gobos + spot
Effects: Shake | | Prism | 16-facet prism with macros | | Pan/Tilt | Pan: 360°
Tilt: 270°
Inversion Mode: Yes
Macros: Yes | | Movement Resolution | 16-bit | | Electronic Dimming | 0-100%
Effects: pulse, strobe, random strobe | | Operation Modes | DMX, standalone, sound active, auto program | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 2 x Modes: 15 and 17 channels | | Wireless Control | UC IR Remote (available separately)
Airstream IR App (free download, requires additional hardware) | | Power Requirements | 100 to 240 VAC, 50/60 Hz (auto-sensing) | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | Up to 8 units @ 120 V
Up to 16 units @ 230 V | | Power Consumption | 199 W | | Cooling | Fan cooled | | Fuse | 5 A | | Dimensions (L x W x H) | 9.0 x 11.0 x 15.25" (22.5 x 27.9 x 38.7 cm) | | Weight | 20.0 lb (9.2 kg) | | | | Package Weight | 27.2 lb | | Box Dimensions (LxWxH) | 18.5 x 15.1 x 12.2" |
