Product description

  • ADJ Vizi BSW 300

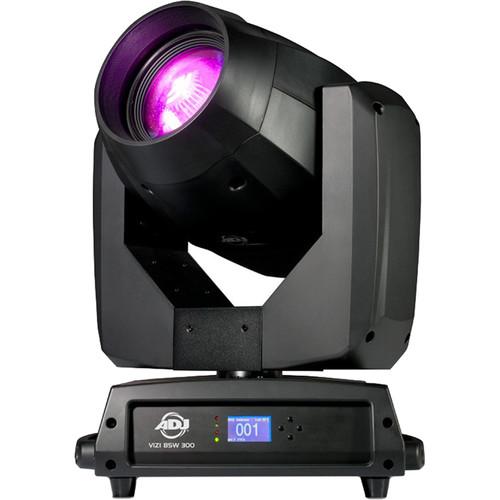

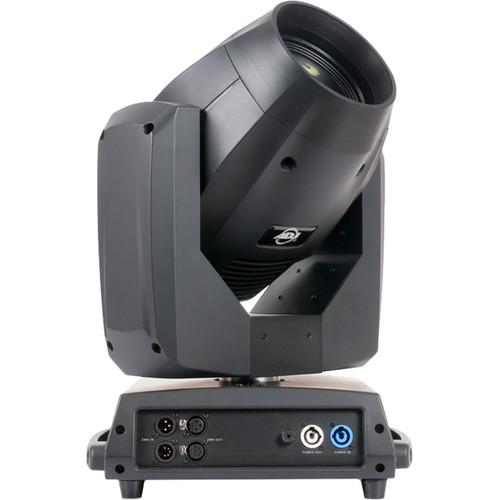

The Vizi BSW 300 LED Moving Head Fixture from American DJ is a hybrid beam/spot/wash fixture that uses a specially designed 300W LED engine. It acts as a beam, spot, and wash all-in-one fixture and comes in a small footprint. It offers motorized focus, motorized zoom, two 6-facet rotating prisms (one linear & one circular), two separate color wheels, and two GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is an LCD function display on the front panel. The rear panel offers powerCON, and 3-pin & 5-pin DMX connections.
  • Gobo scroll mode
  • LED DMX 4-button menu system
  • Auto X-Y repositioning
  • Gobo shake effect for both wheels
  • Independent gobo and color wheels
  • Supports pan and tilt invertion
  • Supports 16-bit pan and tilt positioning as well as pan and tilt speed adjustment
  • Supports prism rotation
  • Motorized focus and zoom
  • Pulse effect; random strobe slow to fast
  • 0 to 100% dimming
  • Strobe effect
  • Equipped with a frost filter
  • Omega Quicklock brackets included
UPC: 819730019776 In the Box American DJ Vizi BSW 300 LED Moving Head
  • Omega Quicklock Brackets
  • Limited 1-Year Warranty
  • Limited 2-Year Warranty on LED
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the American DJ Vizi BSW 300 LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    American DJ Vizi BSW 300 Specs

    Source 1 x 300 W white LED engine
    Modes 2 DMX channel modes (channels: 18 & 21)
    Pan 540°
    Tilt 270°
    Motor Stepper motors with micro stepping
    Beam Angle 1° to 9° (Beam), 10° to 20° (Spot), 12° to 23° (Wash)
    Colors 14 colors + white
    Wheels 2 x Separate Gobo Wheels
    Wheel 1: 6 Static fixed gobos + spot & 3 variably sized beam aperture gobos
    Wheel 2: 7 rotating gobos + spot (6 colored glass gobos and 1 metal gobo)

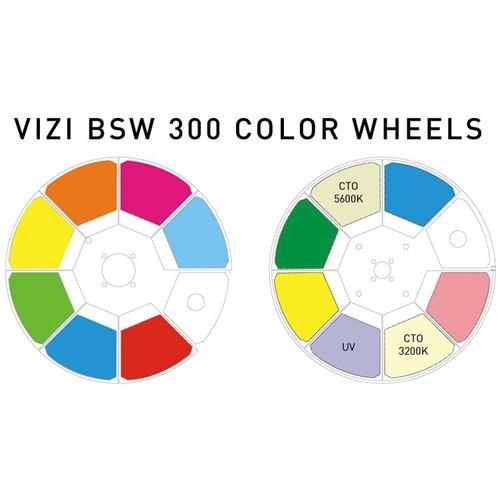

    2 x Separate Color Wheels
    Wheel 1: 7 static colors plus open
    Wheel 2: 7 static colors plus open including: CTO (3200K); CTC (5600K) & UV
    Prism 6 facet prism (circular & linear)
    Connector 3- or 5-pin XLR In/Out
    powerCON In/Out
    Power Consumption 345 W
    Operating Voltage 100 to 240 V, 50 or 60 Hz
    Dimensions 14.75 x 12.75 x 21.5" (376 x 325 x 545 mm)
    Weight 49 lb (22 kg)
    Box Dimensions (LxWxH) 24.0 x 19.0 x 18.0"
