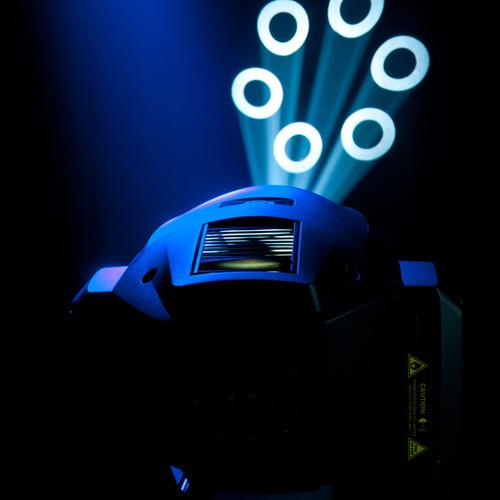

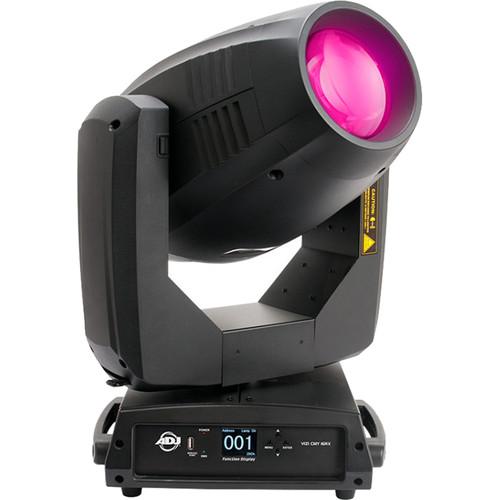

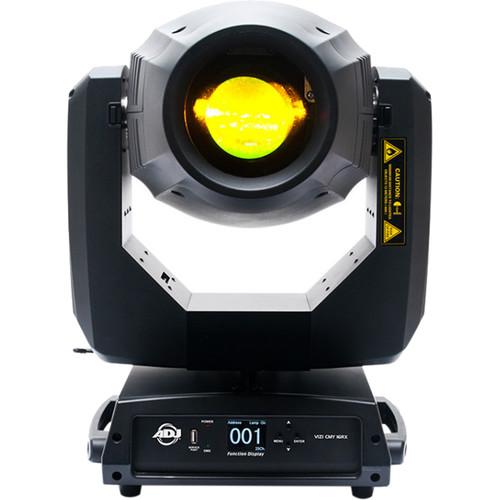

Product description The compact American DJ Vizi CMY 16RX is an intelligent, hybrid LED moving head fixture that offers a wide selection of dynamic colors and effects to energize your dance floor or live stage productions. The unit is an all-in-one beam, spot, and wash fixture with a 330W Philips Platinum 16R MSD light source, which is powerful enough for a concert tour, a theater production, festival stage applications, or large church installations.The Vizi CMY 16RX features full CMY color mixing, which gives you the freedom to select from a much wider palette of colors than a regular color wheel. It offers a flat, even spot field with fully saturated colors. Effects include a motorized focus, a motorized zoom, a motorized shutter, two rotating prisms with macros, rotation, and morph capabilities (one six-facet linear and one eight-facet circular), two separate color wheels, and two gobo wheels (one wheel with fixed metal gobos and one wheel with rotating/replaceable gobos).The motorized head moves much faster than previous models, due to its compact size, low weight, and stepper motors for quick, precise movement. The DMX512 control protocol allows the fixture to be controlled via 23 or 25 channel modes. The Vizi CMY 16RX includes two Omega clamps, a powerCON to Edsion power cord, and a safety cable. - Key Features
-
- Light Source: 330W Philips Platinum 16R MSD
- Color Temperature: 8000 K
- Colors: 9 colors plus white
- Beam Angle:
- Beam Mode: 2.3 to 10
- Spot Mode: 5 to 22
- Wash Mode: 22 to 63
- Zoom Range: 6 to 22
- Full CMY color mixing
- Gobos: 2 separate wheels
- Wheel 1: 15 static gobos plus spot
- Wheel 2: 8 replaceable gobos
- Electronic dimming from 0 to 100%
- Motorized focus, zoom, and shutter
- Frost filter + wash effect
- 6-facet linear and 8-facet circular prisms with macros, rotating, and morphing capabilities
- Electronic strobe
- Strobe Rate: 0.3-7 Hz
- DMX512 control protocol
- DMX Channel Modes: 23 or 25 channels
- 4-button LCD DMX display
- 3- and 5-pin DMX
- Universal Power: 120/240 VAC
- Includes two Omega clamps, safety cable, and power cord
UPC: 818651025552 In the Box American DJ VIZI CMY 16RX - Hybrid Spot/Beam/Wash Moving Head Power Cable 2 x Omega Clamps Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ VIZI CMY 16RX - Hybrid Spot Beam Wash Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Vizi CMY 16RX Specs | Light Source | Light Source: 330W Philips Platinum 16R MSD
Color Temperature: 8000 K
Life Expectancy: 1500 hours | | Beam Angle | Beam Mode: 2.3 to 10°
Spot Mode: 5 to 22°
Wash Mode: 22 to 63° | | Zoom Range | 6 to 22° | | Color | 9 colors plus white (full CMY color mixing) | | Gobos | Gobos: 2 separate wheels
Wheel 1: 15 static gobos plus spot
Wheel 2: 8 replaceable gobos | | Effects | Dimming: Electronic 0 to 100%
Shutter: Motorized
Zoom: Motorized
Focus: Motorized
Frost: Frost filter + wash effect
Prism: 6-facet linear & 8-facet circular w/ macros, rotating & morphing
Strobe: Electronic
Strobe Rate: 0.3 to 7 Hz | | DB Rating | dB rating at 3.3' / 1 m:
Front: 54
Back: 54.7
Left: 53
Right: 53
Top: 55.2 | | Control | Control Protocol: DMX512
DMX Channel Modes: 23 or 25 channels
DMX Modes: 1 mode

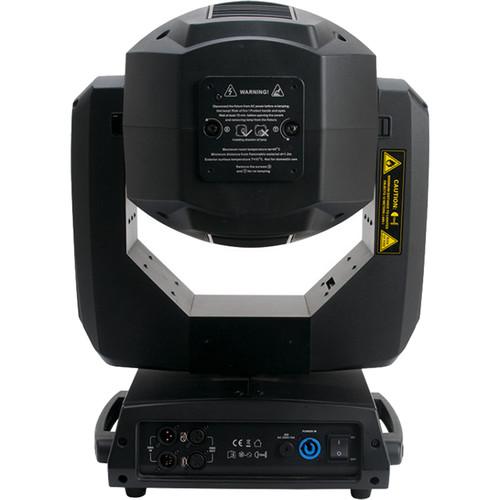

Onboard: 4-button LCD DMX display | | Connectors | Power Input: powerCON
Data: 3- and 5-pin DMX | | Certifications | Certifications: ETL pending
IP Rating: IP20 (dry area, no liquids) | | Power | Multi-Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: 515 W
Power Draw at 120 VAC: 5.2 A
Power Draw at 220 VAC: 2.44 A | | Dimensions (L x W x H) | 25.0 x 16.3 x 13.0" / 635.0 x 412.8 x 330.2 mm | | Weight | 52.0 lb / 23.6 kg | | | | Package Weight | 66.5 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 20.0" |
