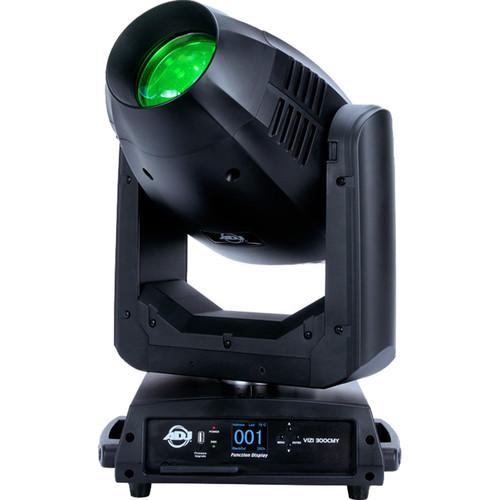

Product description The compact American DJ VIZI CMY300 is an intelligent, hybrid LED moving head fixture that offers a vast selection of dynamic colors and effects to energize your dance floor or live stage productions. It acts as a beam, spot, and wash all-in-one fixture with a 300W cool white LED engine, powerful enough for concert tour, theater production, and festival stage applications, or large church installations.The DJ VIZI CMY300 features full CMY color mixing which gives you the freedom to select from a much wider palette of colors than with a regular color wheel. The fixture also offers a standard RGBWA+UV color wheel, which allows for easy selection of popular colors.Effects include a motorized focus, motorized zoom, motorized iris, two rotating prisms (one six-facet linear and one three-facet circular), two separate color wheels, and two gobo wheels (one wheel with fixed metal gobos and one wheel with rotating/replaceable gobos). The motorized head is capable of both smooth, slow sweeps and fast, precise movements with a pan range of 540° and a tilt range of 270°.The DJ VIZI CMY300 can operate in standalone, Master/Slave, or DMX mode. A built-in antenna with DMX WiFly EXR technology enables you to wirelessly control the fixture up to 2500' away. The unit is equipped with an LCD function display on the front panel. The rear panel offers powerCON power I/O, and 3-pin & 5-pin DMX connections. - Key Features
-
- Bright LED hybrid moving head fixture ideal for a wide variety of applications including concert tours, theater productions, festival stages, and large church installations.
- 300W cool white LED engine generates a powerful beam of light for most large venues and event productions
- Hybrid fixture can function as a beam, spot, and wash light
- CMY color mixing for a wider palette of colors than a regular color wheel
- Standard RGBWA+UV color wheel allows easy selection of popular colors including UV
- 3200K CTO filter allows color temperature to be altered from cool white to a warm white for emulating older lamp-based fixtures
- Motorized focus keeps gobo patterns sharp with regard to projection distance
- Motorized zoom allows beam angle to be altered between 8 and 46°
- Motorized iris reduces beam intensity from 100% to 5%
- Built-in frost filter changes the beam from hard-edged spot to soft-edged wash
- Two independent rotating prisms—one six-facet linear and one three-facet circular
- Prisms can be layered together to create unique and complex projections
- Two gobo wheels—one wheel with eight fixed metal gobos + open and one wheel with six rotating/replaceable gobos + open
- Motorized head is capable of both smooth slow sweeps and fast precise movements
- Pan range of 540° and a tilt range of 270°
- Standalone and Master/Slave operation
- Sound Active mode, Auto Run mode, RGBWA+UV Dimmer mode, Static Color mode, and DMX mode
- Three DMX channel modes: 21, 24, or 26 channels
- Built-in antenna with WiFly EXR wireless DMX technology for controlling fixture with no wire, up to 2500' away (line of sight)
- Full-color function display on the front panel

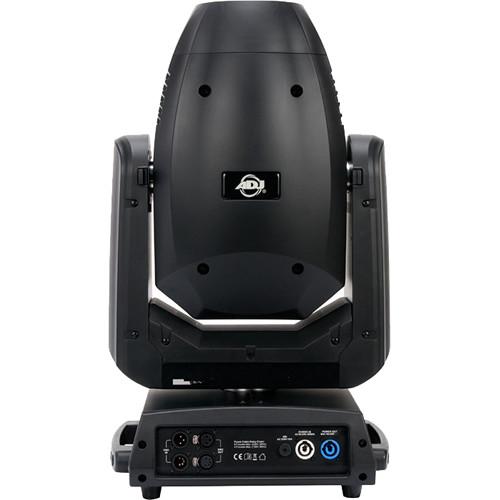

- 3-pin and 5-pin DMX I/O
- Compact design
- Modular design for easy servicing and gobo replacement
- Daisy-chain power for up to 4 units at 120V or 8 units at 230V
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 818651021059 In the Box American DJ VIZI CMY300 Hybrid LED Moving Head Fixture Seatronic powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ VIZI CMY300 Hybrid LED Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Vizi CMY300 Specs | Light Source | 300 W cool white LED engine
UV Range: 399 to 435 nm
50,000 hours life expectancy | | Color | Color Wheel: 9 colors + open (including: CTO 3200K and UV)
Full CMY color mixing | | Gobos | Gobo Wheel 1
8 fixed gobos + open (1 beam reducers in beam mode)
Gobo Wheel 2
6 rotating/replaceable gobos + open
Size: 1.1" / 26.8 mm
Viewable: 0.8" / 20.0 mm
Modular design | | Effects | Zoom Range: 8 to 46°, motorized
Iris: 5 to 100%, motorized
Focus: Motorized
Frost effect
Prism 1: Rotating 3-facet, circular
Prism 2: Rotating 6-facet, linear rotating
Prism layering
Pan/Tilt Correction: Automatic
Pan/tilt lock
Pan/Tilt Range: 540
