User Manual for American DJ Vizi Hex Wash7 Pro Moving Head Click to enlarge the picture
Contents of the user manual for the American DJ Vizi Hex Wash7 Pro
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Vizi Hex Wash7 Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

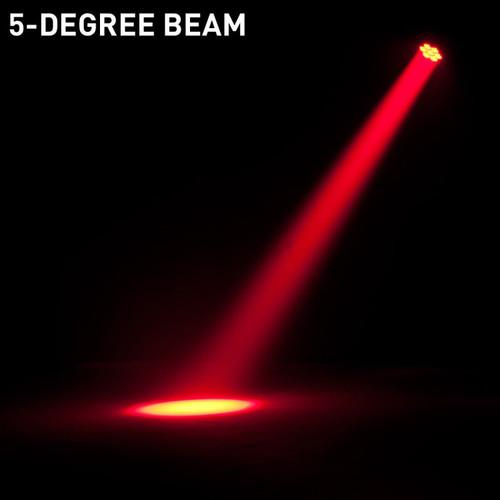

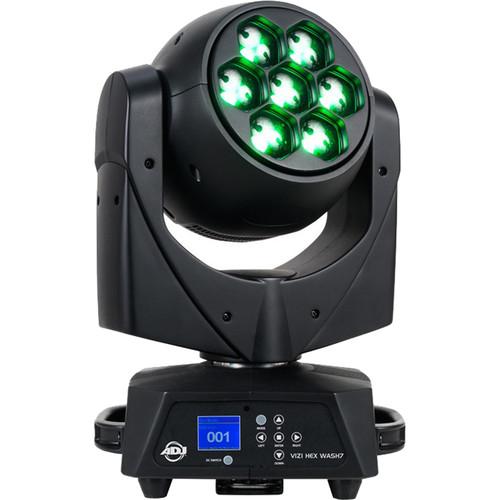

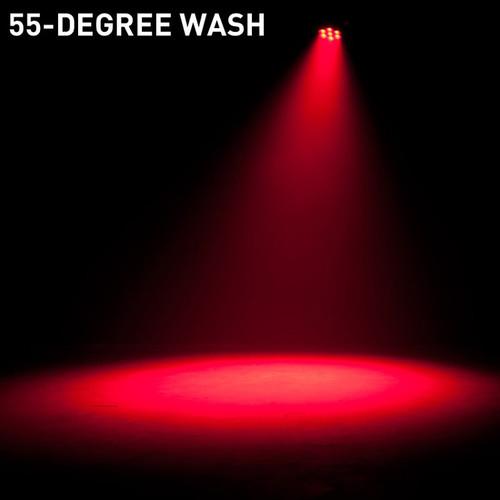

Product description The Vizi Hex Wash 7 Pro Moving Head from American DJ is a 105W professional moving head wash fixture with variable zoom (5 to 55°) and seven 15W HEX (RGBWA+UV) LEDs. Its fixture offers a 5 to 55° motorized beam angle. The moving head features 64 built-in color macros, fast pan/tilt movement, electronic dimming with five dimming curves, and a pan/tilt inversion mode. It also offers contrasting movement when fixtures are linked together.

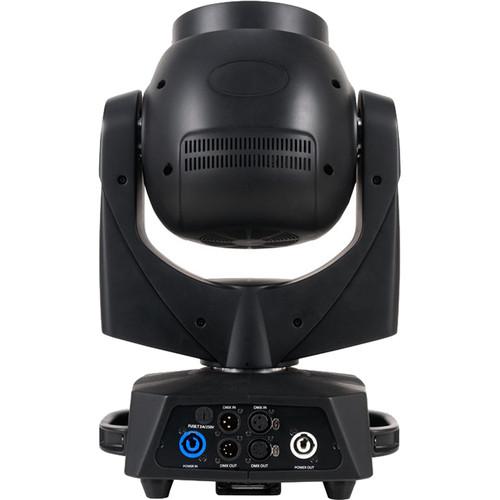

The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections, and powerCON In/Out power linking. This fixture is suitable for stages, theaters, churches, nightclubs, concert venues, and event productions. - High-output LED moving head wash with motorized zoom
- 4-Button DMX LCD menu with 180° Inverse View mode
- Pan/tilt Inverse Mode for contrasting movement when fixtures are linked together
- Electronic Strobe/Pulse effect
- Random strobe slow to fast
- Includes Omega bracket for truss mounting
UPC: 819730019745 In the Box American DJ Vizi Hex Wash7 Pro Moving Head Omega Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Vizi Hex Wash7 Pro Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Vizi Hex Wash7 Specs | Lamp | 7 x 15 W RGBWA+UV HEX (6-in-1) LEDs | | Lamp Life | Rated at 50,000 hrs | | Beam Angle | 5 to 55° | | Photometric Data | Not specified by the manufacturer | | Pan | 630° | | Tilt | 270° | | Configuration | Standalone or Master/Slave | | Modes | Program and DMX controlled | | Electronic Dimming | 0 to 100% | | Color | 64 built-in color macros | | DMX Connectors | 3-pin or 5-pin DMX | | DMX Channels | 3 | | Power Connection Type | powerCon AC In/Out on rear to daisy chain power | | Power | 100 to 230 VAC, 50/60 Hz | | Power Consumption | 137 W | | Rigging Points | Omega bracket | | Dimensions (L x W x H) | 11.75 x 8 x 15.75" (300 x 200 x 400 mm) | | Weight | 19 lb (8.5 kg) |
