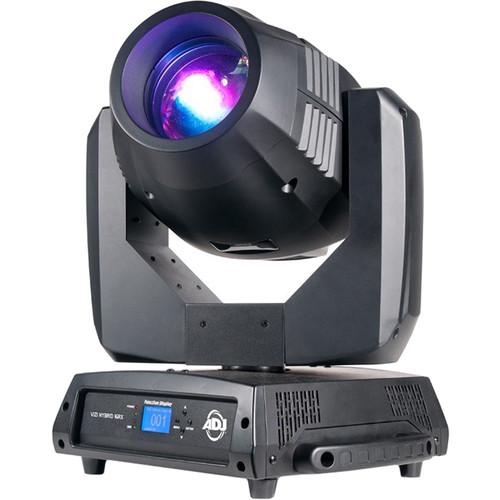

Product description The Vizi Hybrid 16RX from American DJ is a spot/beam/wash hybrid moving head fixture powered by the Philips Platinum 16R discharge lamp technology (8000°K, 1,500 hours). The Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors.
This moving head fixture features prism morphing, motorized zoom, motorized focus and powerCON input/output for daisy chaining the power. Other features include frost filter to turn the hard edge beam to a wash, 6- & 8-facet rotating prisms, and stepper motors for quick and precise movement. - LED DMX 4-button menu system
- Gobo Shake effect for both wheels
- Independent gobo and color wheels
- 16-bit pan/tilt positioning
- Pan/tilt speed adjustment
- Shutter: pulse effect; random strobe, slow to fast
- Frost filter for wash effect
- Included Omega Quicklock brackets
- Stepper motors with micro stepping
- 6 & 8-facet Prism with macros
- 3-/5-pin XLR input / output
UPC: 819730017857 In the Box American DJ Vizi Hybrid 16RX Moving Head Fixture 2 x Omega Quicklock Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Vizi Hybrid 16RX Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Vizi Hybrid 16RX Specs | Lamp | Philips Platinum 16R MSD discharge, 8,000°K
1,500 hour life expectancy | | Electronic Dimming | 0 to 100% | | Pan | 360° standard (540° optional) | | Tilt | 270° | | Beam Angle | 3 to 32° | | Lux | 770000 lux @ 16.4' (5 m), 220000 lux @ 32.8' (10 m) | | Colors | 14 x colors + white | | Gobos | 2 x separate gobo wheels
Wheel 1: 17 x static, fixed gobos + spot
Wheel 2: 12 x colored glass gobos + spot | | Prism Type | 1 x 6-facet prism
1 x 8-facet prism | | DMX Connectors | 3-pin XLR input and output
5-pin XLR input and output | | DMX Channels | 19 x Channels | | Display | Four-button LED menu system | | Power Consumption | 537 W | | Power Cord Daisy Chain | Yes, via powerCON in/out | | Multi Voltage | 100 to 240 VAC, 50 Hz / 60 Hz | | Dimensions (L x W x H) | 12.75 x 14.5 x 22.5" (32.5 x 37.0 x 57.1 cm) | | Weight | 51 lb (23 kg) | | | | Package Weight | 54.15 lb | | Box Dimensions (LxWxH) | 23.0 x 18.0 x 17.0" |
