User Manual for American DJ Vizi Q Wash7 Moving Head Fixture

Click to enlarge the picture
American DJ Vizi Q Wash7 Moving Head Fixture Contents of the user manual for the American DJ Vizi Q Wash7 Moving
  • Product category: DJ & Effect Lights American DJ
  • Brand: American DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for American DJ DJ & Effect Lights

American DJ Vizi Q Wash7 Moving Head Fixture American DJ Vizi Q Wash7 Moving Head Fixture American DJ Vizi Q Wash7 Moving Head Fixture
User manual for the American DJ Vizi Q Wash7 Moving contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any American DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!



Product description

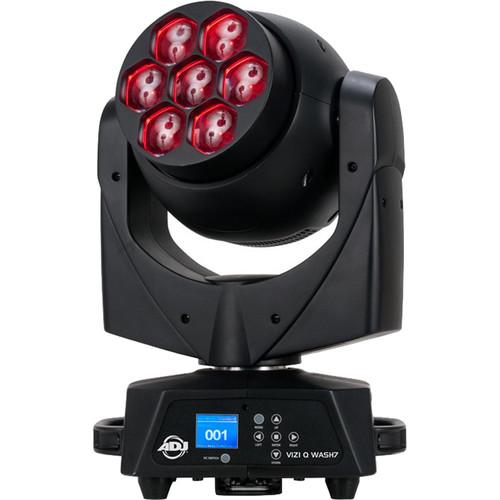

The Vizi Q Wash7 Moving Head Fixture from American DJ is a 280W fixture with variable zoom of 5° to 55° and seven 40W quad (RGBW) LEDs. It features 64 built-in color macros, fast pan and tilt movement, electronic dimming with 5 dimming curves, and a pan and tilt inversion mode or contrasting movement when fixtures are linked together. The Vizi Q Wash7 has three DMX channel modes, 3-pin or 5-pin DMX connections, and power linking via powerCON. This fixture is suitable for stages, theaters, churches, nightclubs, concert venues, and event productions.
  • High output LED moving head wash with motorized zoom
  • 4-button DMX LCD menu with 180° Inverse View mode
  • 5 dimmer curves
  • 16-bit fine pan/tilt control
  • Pan and tilt inverse mode for contrasting movement when fixtures are linked together
  • Electronic strobe/pulse effect; random strobe slow to fast
  • 0 to 100% electronic dimming
  • Includes Omega bracket for truss mounting
UPC: 819730019752 In the Box American DJ Vizi Q Wash7 Moving Head Fixture
  • Omega Bracket
  • Limited 1-Year Warranty
  • Limited 2-Year Warranty on LED
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the American DJ Vizi Q Wash7 Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    American DJ Vizi Q Wash7 Specs

    Source 7 x 40 W quad RGBW (6-in-1) LEDs
    Life Expectancy: 50,000 hours
    Motorized Zoom 5° to 55° beam angle
    Modes 3 DMX channel modes and 2 operational modes (Program mode and DMX controlled)
    Pan 630°
    Tilt 270°
    Configuration Standalone or master and slave configuration
    Connector 3-pin and 5-pin XLR in/out
    powerCon AC in/out on rear to daisy chain power
    Cooling Fan-cooled
    Operating Voltage 100 to 230 V, 50/60 Hz
    Power Consumption 305 W
    Dimensions 11.75 x 8 x 15.75" (300 x 200 x 400 mm)
    Weight 19 lb (8.5 kg)
