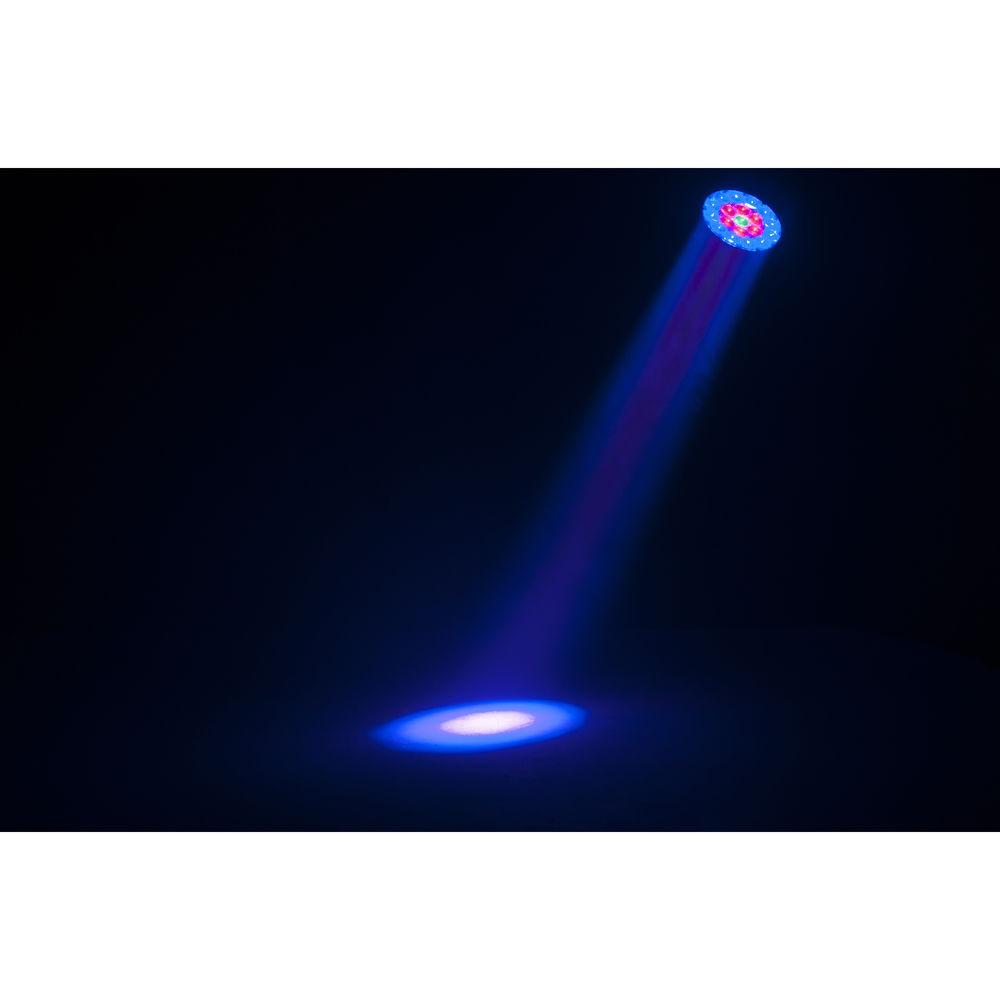

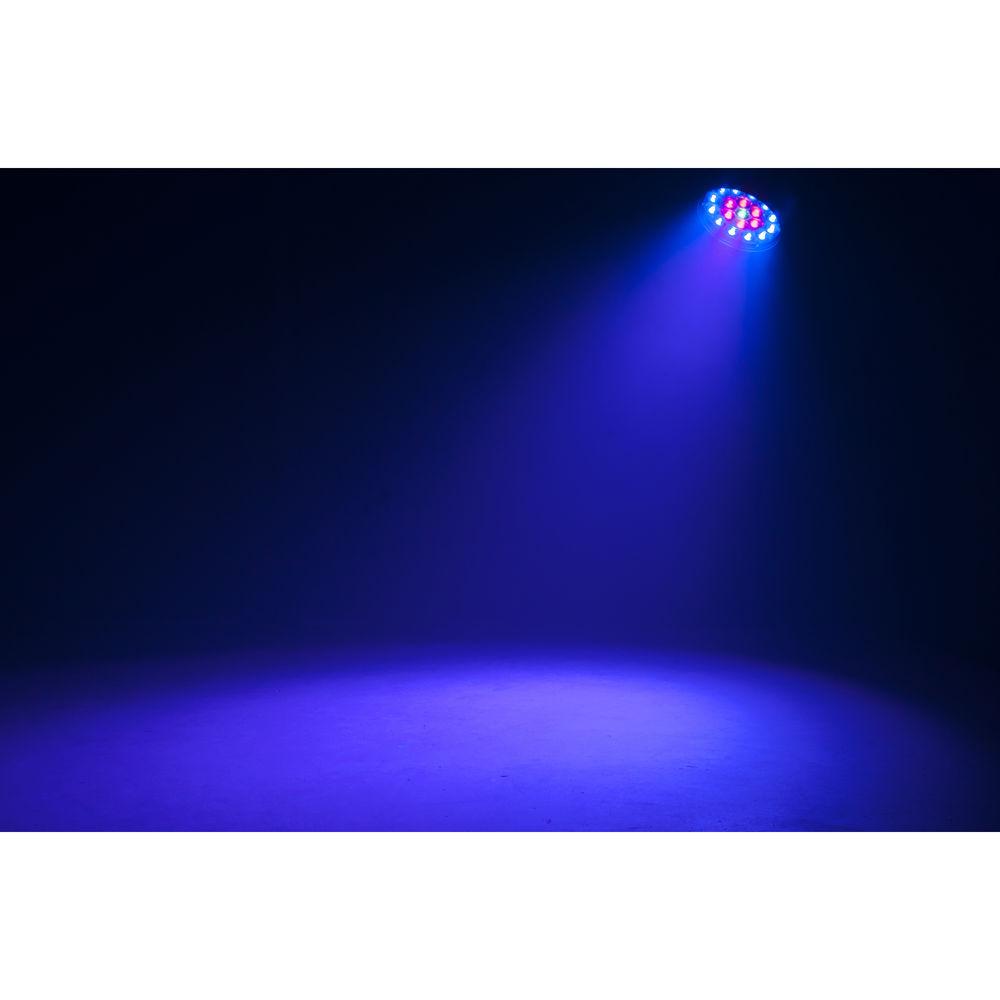

User Manual for American DJ Vizi Wash Pro 570W RGBW LED Wash Light Click to enlarge the picture
Contents of the user manual for the American DJ Vizi Wash Pro 570W
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Vizi Wash Pro 570W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

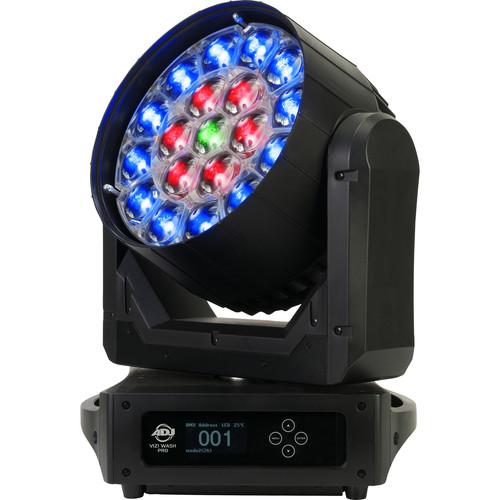

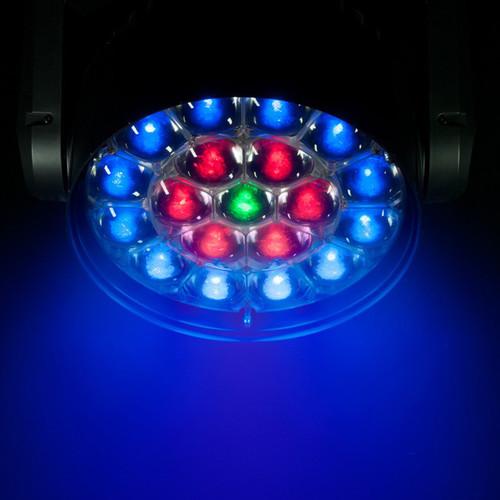

Product description The American DJ Vizi Wash Pro is a 570W RGBW LED wash light designed to deliver expressive wash effects with versatile zoom for lighting designers and technicians in mid- and large-size stages and concert venues. It features nineteen 30W RGBW Osram LEDs rated at 50,000 hours and 5 to 50° motorized zoom. 3-ring zone control with thirty-two color macros, six dimming curves, and variable strobe and pulse settings deliver a multitude of effect possibilities. Control capabilities include three DMX modes. A four-button LED menu system offers direct access to parameters and DMX 3-pin and 5-pin jacks provide remote control functionality. - Three DMX channel modes—15, 19, and 36
- 0 to 100% dimming and six selectable dimming curves
- 4-button LED menu system on front panel
- DMX 3-pin and 5-pin inputs and outputs
- Auto-sensing internal power supply
- Includes two Omega brackets for truss mounting
In the Box American DJ Vizi Wash Pro 570W RGBW LED Wash Light 5' powerCON Power Cord 2 x Omega Brackets for Truss Mounting Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Vizi Wash Pro 570W RGBW LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

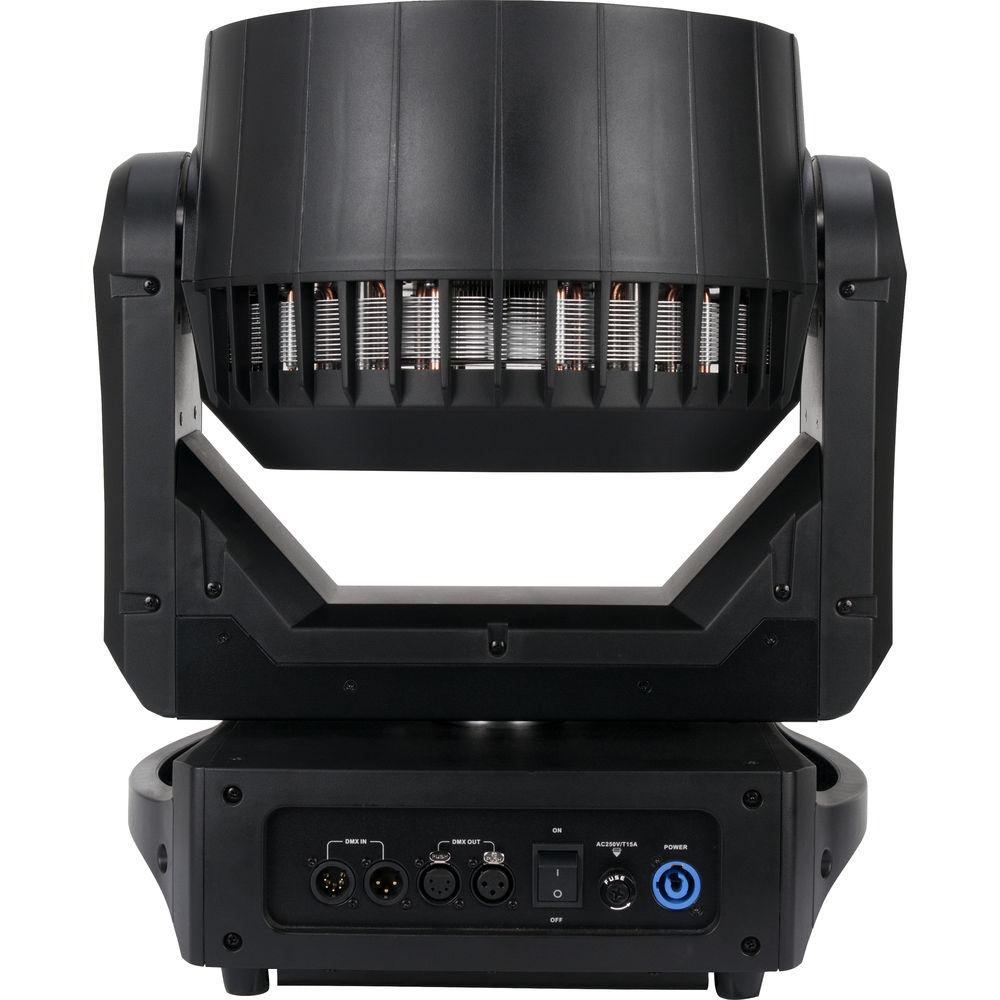

Technical parametersAmerican DJ Vizi Wash Pro Specs | Light Source | 19 x 30 W RGBW (red, green, blue, and white) 4-in-1 Osram LEDs | | Lamp Life | 50,000 hours (average) | | Illuminance | Full On: 28,000 lux at 16.4' / 5 m with 5° zoom | | DMX Connectors | 1 x DMX 3-pin input
1 x DMX 3-pin output
1 x DMX 5-pin input
1 x DMX 5-pin output | | DMX Channel Modes | 15, 19, and 36 | | Dimming | Curves: 6
Range: 0 to 100% | | Pan & Tilt Range | 540° / 270°
16-bit fine pan and tilt | | Zoom | 5 to 50° | | Power Connection Type | 1 x powerCON input | | Power | 100 to 240 VAC, 50/60 Hz | | Power Draw | 725 W, 6.03 A at 120 V
700 W, 3 A at 230 V | | Dimensions (L x W x H) | 13.2 x 16.9 x 21.3" / 335 x 430 x 541 mm | | Weight | 48.5 lb / 22 kg |
