User Manual for American DJ WiFLY Chameleon Fixture Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY Chameleon Fixture
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ WiFLY Chameleon Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The WiFLY Chameleon Fixture from American DJ creates three beams from one lens with offset colors. This wall-washing fixture is powered by three 15W RGBA+UV (5-in-1) LEDs, has a built-in rechargeable lithium battery, and includes WiFLY EXR Extend Range Wireless DMX (up to 2,500’). The lens is adjustable to create different effects on a wall. Furthermore, there is a multi-angle kick stand on the bottom for further adjustments.

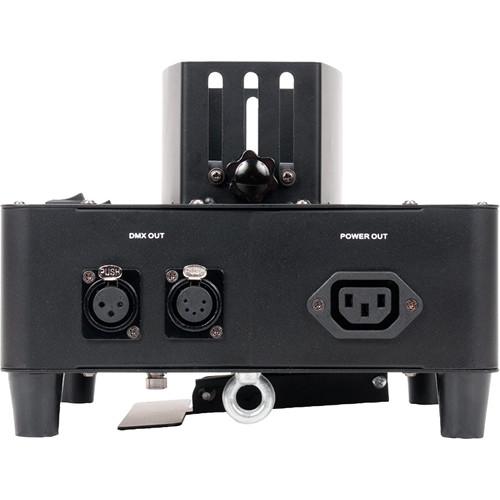

The WiFLY Chameleon has 6 DMX channel modes, 6 operational modes, 3- and 5-pin DMX connectors, and IEC input/output to daisy chain power. It is compatible with all ADJ WiFLY fixtures and controllers. - Compatible with all ADJ WiFLY fixtures and controllers plus the ADJ LED RC4 and UC IR wireless remote controllers (sold separately)
- Built-in WiFLY Extended Range wireless DMX (up to 2,500')
- Rechargeable and replaceable lithium battery

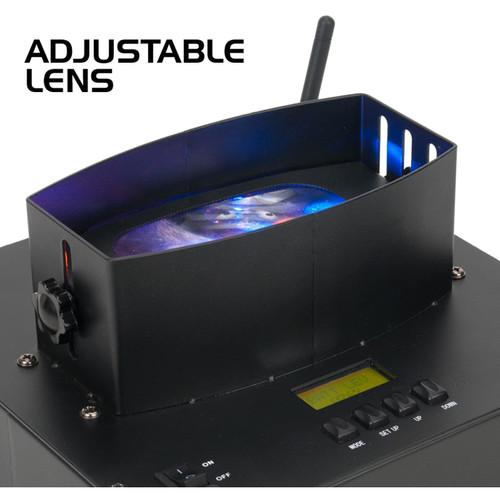

- Adjustable lens to change beam angle

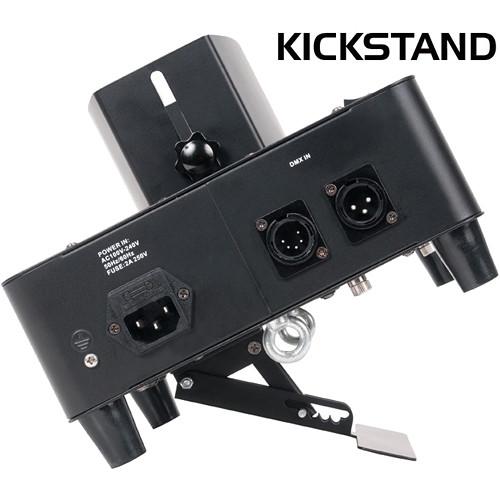

- Kick stand on rear to change fixture angle
- 2x8 character LCD display
- LED pulse & strobe effect
In the Box American DJ WiFLY Chameleon Fixture Limited 180-Day Warranty on Batteries Limited 1-Year Warranty on Motors, PCBs, and Power Supplies Limited 2-Year Warranty on LEDs Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY Chameleon Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WiFLY Chameleon Specs | LEDs | 3 x 15 W RGBA+UV (5-in-1) LEDs (red, green, blue, amber, ultraviolet) | | Beam Angle | 5 to 40° | | Battery Charge Time | 3 hours (with load switch off) | | Battery Life | 4.5 hours (full on in normal mode)
6 hours (energy saving mode with full charge) | | Battery Type | Rechargeable lithium | | Operating Modes | 6 x Modes: RGBA+UV Dimmer Mode, Built-In Program Mode (22 programs), Auto Run Mode, Static Color Mode, Sound Active Mode, and DMX Control | | DMX Channel Modes | 6 x modes | | DMX Connectors | XLR 3-pin input and output
XLR 5-pin input and output | | Protocol | DMX512 | | Electronic Dimming | 0 to 100% | | Tilt | 270° | | Display | 2x8 character LCD | | Wireless Control | WiFLY and WiFLY EXR wireless DMX
ADJ LED RC4 and UC IR wireless remote controls (sold separately) | | Wireless Range | WiFLY EXR: Up to 2,500' (762 m) | | Power Connectors | 1 x IEC input
1 x IEC output | | Power Cord Daisy Chain | Connect up to 14 fixtures maximum | | Power Consumption | 45 W | | Multi Voltage | 100 to 240 VAC, 50 Hz / 60 Hz | | Dimensions (L x W x H) | 9 x 9 x 7" (23 x 23 x 18 cm) | | Weight | 4.5 lb (2.0 kg) |
