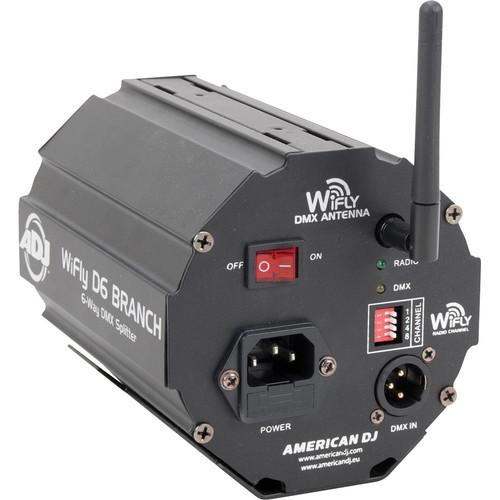

User Manual for American DJ WiFLY D6 Branch 6-Way DMX Splitter Amplifier Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY D6 Branch 6-Way
- Product category: DMX Devices American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DMX Devices
 |
User manual for the American DJ WiFLY D6 Branch 6-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

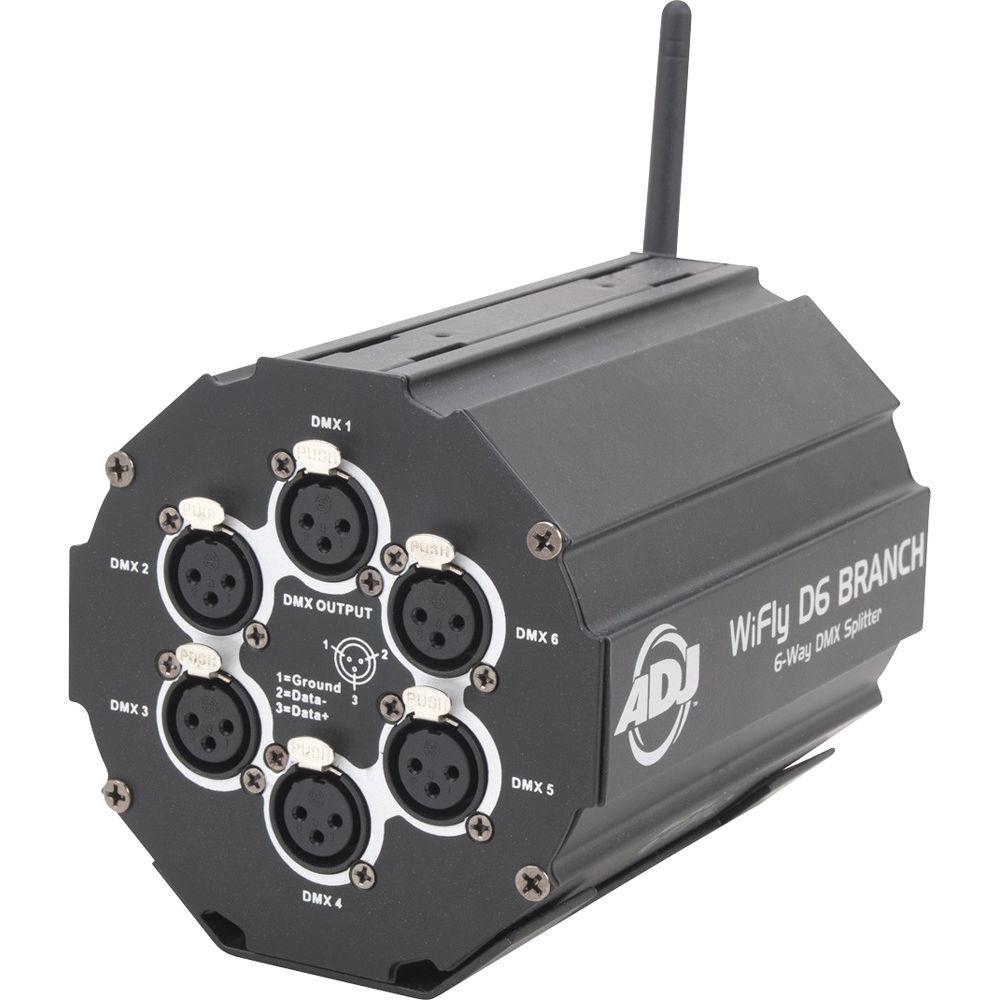

Product description The WiFLY D6 Branch from American DJ is a 6-way DMX splitter and amplifier that incorporates a built-in WiFLY transceiver, enabling wireless DMX communication between any WiFLY-compatible ADJ products for up to 500 feet. This makes running DMX cables to fixtures easier and more efficient. It features 1 DMX input, 6 DMX outputs, and 1 DMX thru (all XLR 3-pin connectors). There are 16 available WiFLY channels, which are set via four DIP switches, allowing for the use of multiple units in the same space. Two units can be set to the same channel to link them as a receiver/transmitter pair.

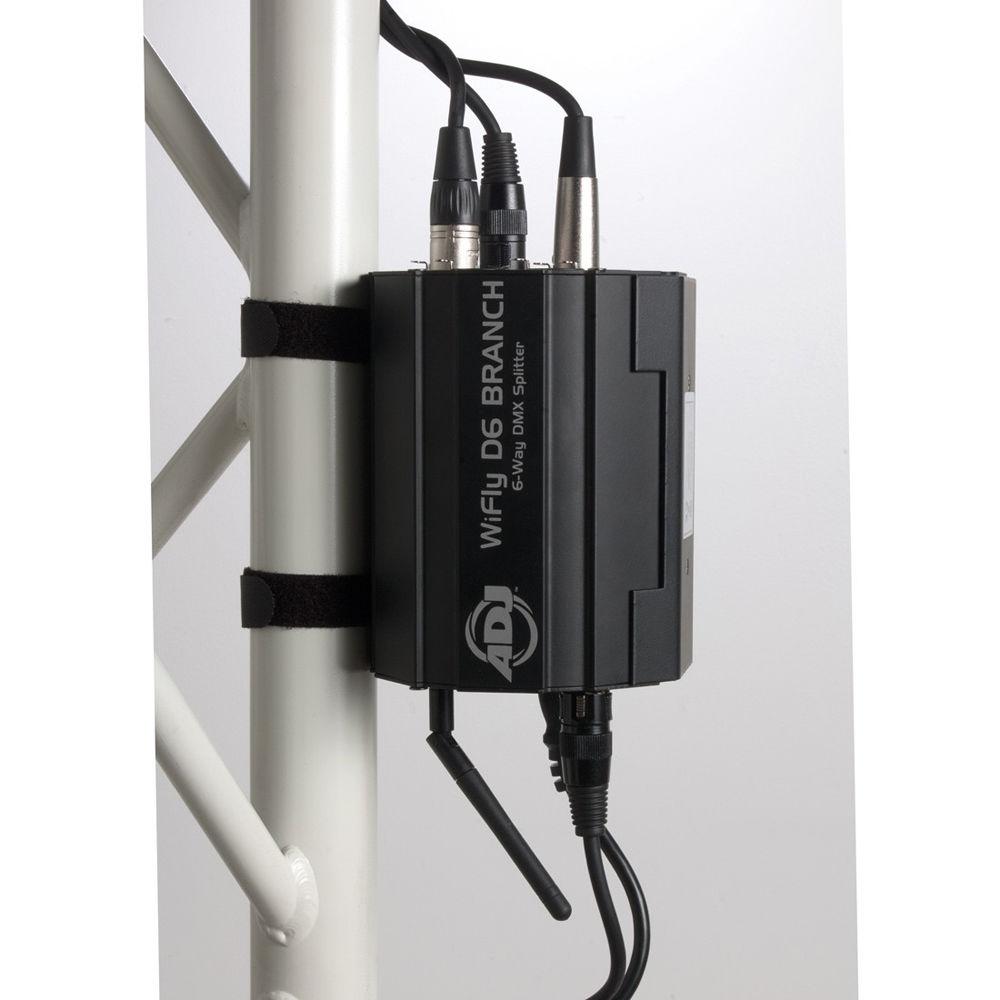

Every DMX connector is electrically and optically isolated from each other via optical couplers. This helps protect equipment from damage and minimizes errors in data transfers. The WiFLY D6 Branch also includes two touch-fastener straps and a clamp-mounting bracket. This unit is suitable for contractors, installers, and professional lighting companies. It's ready to be installed or hung and powered right out of the box. UPC: 819730010070 In the Box American DJ WiFLY D6 Branch 6-Way DMX Splitter/Amplifier 2 x Hook-and-Loop Fastener Straps Clamp-Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY D6 Branch 6-Way DMX Splitter Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WIFLY D6 BRANCH Specs | DMX Connectors | 1 x XLR 3-pin DMX input
6 x XLR 3-pin DMX outputs
1 x XLR 3-pin DMX thru | | Wireless Control | ADJ WiFLY (Wireless DMX):
Range: Up to 500' (150 m)
Channels: 16
Control: 4 x DIP switches used to select channel | | LED Indicators | Radio Receiver: green LED indicates receiving wireless signal
DMX Transmitter: yellow LED indicates transmitting wireless signal | | Voltage Range | 100 to 240 VAC, 50/60 Hz (IEC Socket) | | Fuse | 1 A | | Dimensions (L x W x H) | 5.91 x 4.72 x 4.72" (150 x 120 x 120 mm) | | Weight | 4.0 lb (1.45 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 10.5 x 6.8 x 6.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
