User Manual for American DJ WiFLY EXR Battery Powered Transceiver Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY EXR Battery Powered
- Product category: DMX Devices American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DMX Devices
 |
User manual for the American DJ WiFLY EXR Battery Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

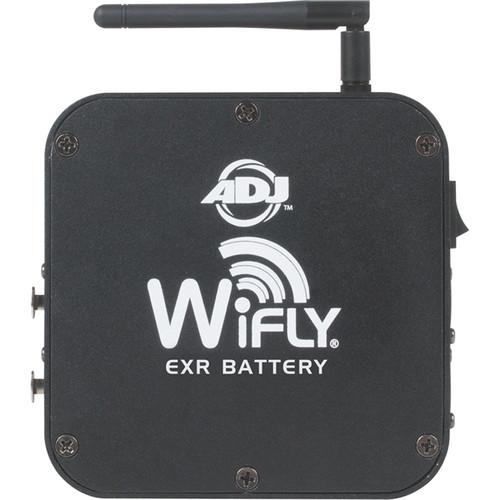

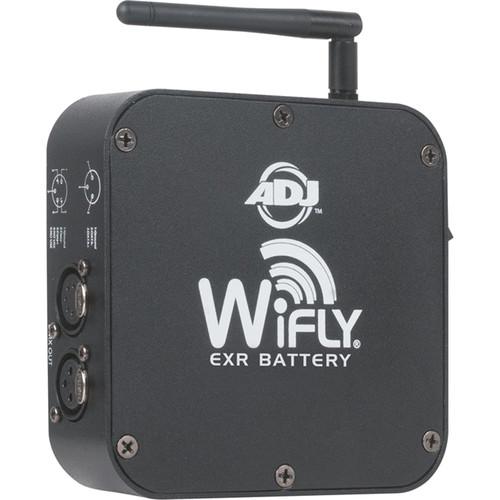

Product description The American DJ WiFLY EXR Battery Powered Transceiver is a transmitter and receiver combination that is compatible with all ADJ WiFLY products. The unit can connect to a DMX console and transmit DMX signals to other transceivers up to 2,500' away.The WiFLY EXR Battery runs on the 2.4 GHz frequency to thwart interference, has signal strength and battery power indicators on its side, and will run for 20 hours before needing recharging. A magnetic bottom makes mounting the WiFLY EXR to most metal surfaces quick and easy. - Attributes
-
- Battery-powered wireless DMX transceiver (transmitter/receiver in one)
- Battery life: Up to 20 hours

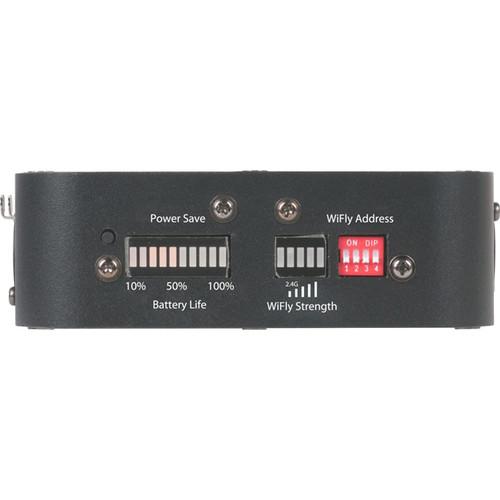

- Battery life and WiFLY wireless signal strength indicators on side panel
- Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects
- Compatible with all ADJ WiFLY products
- Up to 2,500' wireless range when placed in open line-of-sight
- One transmitter can send to many receivers using the same radio channel
- Receivers automatically listen for transmitters (no pairing required)
- Supports up to 15 DMX-512 universes
- Dip Switches to select from 15 different radio channels (one DMX universe per channel)
UPC: 819730016614 In the Box American DJ WiFLY EXR Battery Powered Transceiver 9-12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY EXR Battery Powered Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

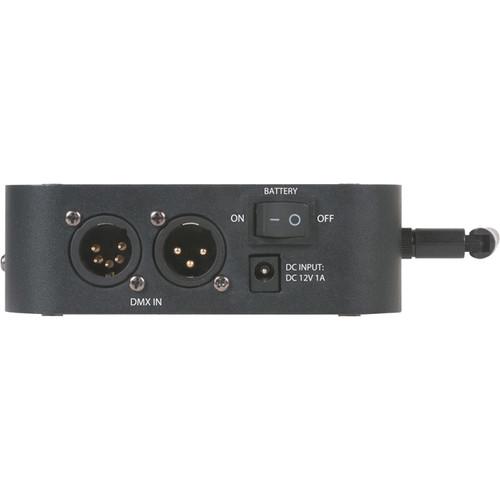

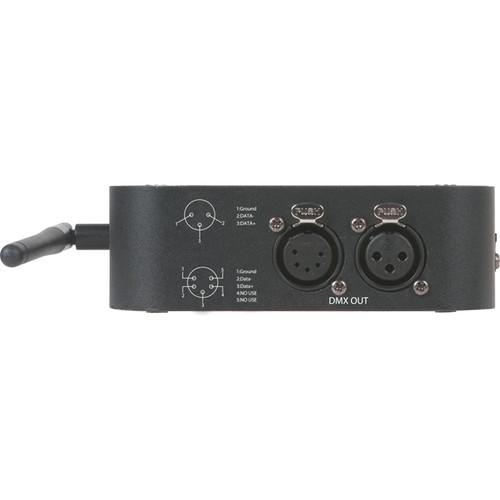

Technical parametersAmerican DJ WIFLY EXR BATTERY Specs | Type | Battery-powered combination transmitter/receiver | | Frequency | 2.4 GHz DSSS | | Channels | 15, supports 1 DMX universe per channel | | Wireless Range | Up to 2,500' (760 m) when placed line-of-sight | | Power | Built-in rechargeable battery
9-12 VDC charger/AC adapter | | Battery Life | Up to 20 hours | | Input / Output | 3-pin and 5-pin DMX in/out | | Dimensions | 5.8 x 5.3 x 2.4" (148 x 135 x 62 mm) | | Weight | 1.6 lb (0.75 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 11.3 x 7.5 x 4.8" |
