User Manual for American DJ WiFLY EXR Dotz Par - RGB Tri-COB LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY EXR Dotz Par
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ WiFLY EXR Dotz Par contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

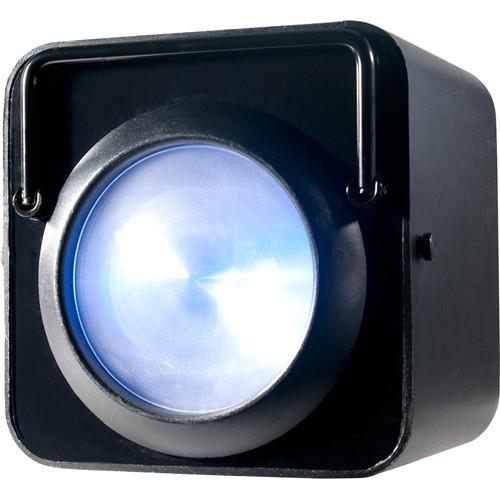

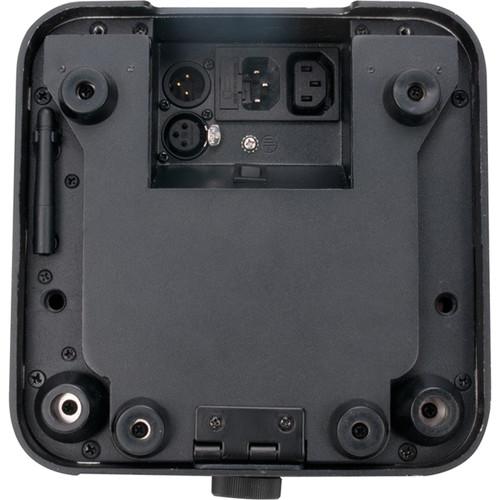

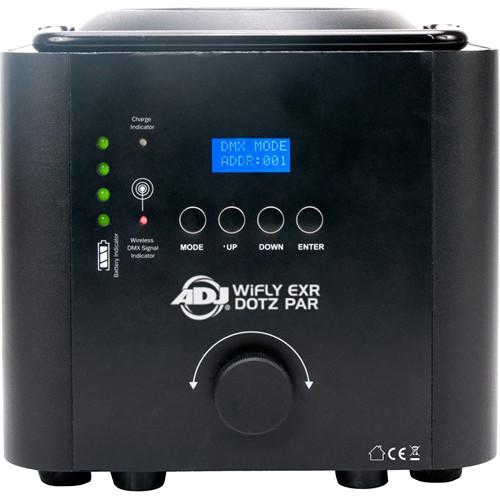

Product description The WiFLY EXR Dotz Par from American DJ is a battery-powered, wireless DMX fixture that features a 36W Tri-COB (Chip-On-Board) LED for smooth RGB color mixing without RGB shadows. The built-in WiFLY EXR wireless DMX is capable of receiving signals from up to 2,500' (760m) when used with ADJ's WiFLY EXR transceiver (available separately). When fully charged, the unit can operate at full on for up to 8 hours. This fixture offers flicker-free operation, 0-100% electronic dimming, 32 built-in color macros, five DMX channel modes, and seven operational modes. It offers a beam angle of 66° with the lens and 20° without the lens. The WiFLY EXR Dotz Par fixture is especially useful for mobile productions, eliminating the need to run DMX or power cables, but it is also suitable for theaters, concert venues, or any situation where wireless lighting is desired. It can be used as a standalone unit or in a master/slave configuration. The IEC in/out power connectors, 3-pin DMX in/out connectors, and antenna are all recessed beneath the unit for neater cable management. The fixture supports power linking for 10 units at 110V and 18 units at 240V. Rubber feet provide grip when set on the ground, while a built-in kickstand allows manual angle adjustments. Features - Built-in WiFLY EXR – receives DMX from up to 2,500' when used with the WiFLY EXR transceiver (available separately)
- Built-in rechargeable battery that lasts up to 8 hours with full charge
- Included shield helps limit unwanted light exposure
- Tri-COB RGB LED creates no RGB shadows
- Compatible with ADJ Dotz Par RF wireless remote control (available separately)
- Seven operational modes: static color, sound active mode, RGB dimmer mode, 3-color change, 7-color change mode, color fade, and DMX controlled
- 32 built-in color macros, LED pulse and strobe effect, flicker-free operation, built-in microphone

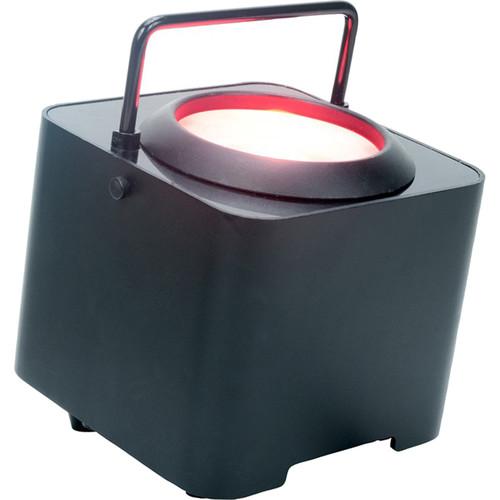

- Built-in kickstand for manual angle adjustment
UPC: 819730015594 In the Box American DJ WiFLY EXR Dotz Par - RGB Tri-COB LED Fixture 66° Removable Lens Limited 2-Year Warranty on LEDs Limited 180-Day Warranty on Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY EXR Dotz Par - RGB Tri-COB LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WiFLY EXR Dotz Par Specs | LED Source | 1 x 36 W Tri-COB (Chip-On-Board) RGB LED | | Beam Angle | With Lens: 66°
Without Lens: 20° | | Colors | RGB color mixing
32 x color macros | | Electronic Dimming | Range: 0 to 100%
Curves: Standard, Stage, TV, Architectural, and Theater (selectable)
Effects: Pulse and Strobe | | Photometrics | Lens On (66°): 175 lux @ 6.6' (2 m); 48 lux @ 13.1' (4 m)
Lens Off (20°): 3280 lux @ 6.6' (2 m); 940 lux @ 13.1' (4 m)
| | Wireless Control | Type: WiFLY EXR DMX
Range: Up to 2,500 ft (760 m) - open line of sight
Requires WiFLY EXR Transceiver (available separately)
Remote Control: ADJ Dotz Par RF (available separately) | | Battery | Type: Rechargeable lithium-ion
Charge Time: 4 hours
Battery Life: 8 hours with full charge (@ full on)
Average Lifetime: 500 charges | | Operational Modes | 7 x Modes: Static Color, Sound Active, RGB Dimmer, 3-Color Change, 7-Color Change Mode, Color Fade, and DMX | | DMX Connectors | Input: XLR 3-Pin
Output: XLR 3-Pin | | DMX Channel Modes | 5 x Modes: 3, 4, 5d, 5s, and 9 | | Power | Input Connector: IEC male socket
Output Connector: IEC female socket
Voltage Range: 100-240 VAC, 50/60 Hz (auto-sensing)
Draw: 38 W total (full on) | | Power Linking | 120 V: Up to 10 fixtures
230 V: Up to 18 fixtures | | Fuse | 2 A | | Dimensions (L x W x H) | 8.25 x 7.75 x 9.75" (210 x 200 x 250 mm) | | Weight | 12.0 lb (5.5 kg) |
