User Manual for American DJ WiFLY EXR HEX5 IP Battery Powered LED Par Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY EXR HEX5 IP
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ WiFLY EXR HEX5 IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

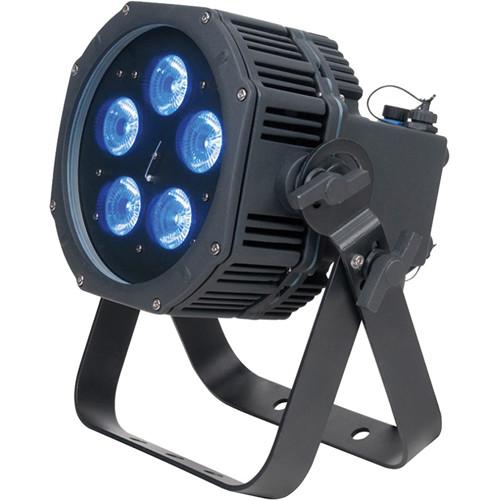

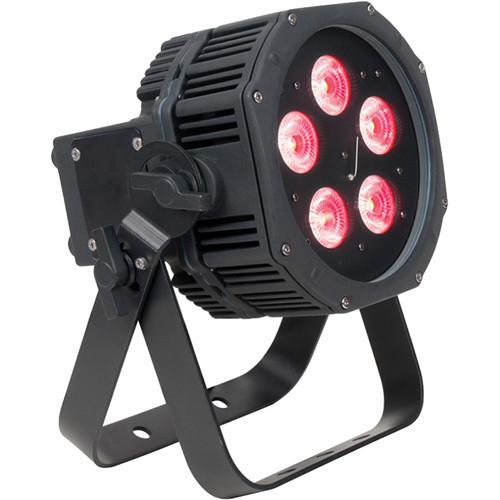

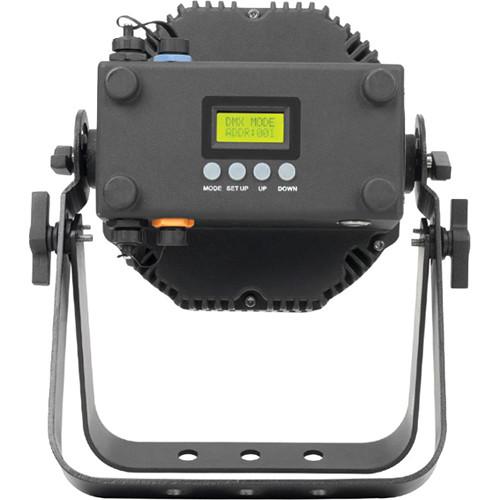

Product description The WiFLY EXR HEX5 IP from American DJ is a battery powered LED Par with built-in WiFly, six operational modes, and sixteen color change modes that can be used as lighting effects in clubs, DJ-setups, houses of worship, bands, live stages, and more.The WiFLY EXR Hex5 IP features five 5W HEX LEDs (red, green, blue, white, and amber + UV). The built-in WiFLY has an extended range of up to 2000'. The six operational modes are: static color, RGBAW + UV dimmer mode, color change, color fade, auto run (program run), and DMX controlled.4-pin power AC in/out outlets are located on the rear to allow you to daisy chain up to 11 units simultaneously. A rechargeable lithium battery is used for the wireless DMX operation (with ADJ's WiFLY transceiver sold separately). Additionally, the WiFly EXR Hex5 IP is rated for multi-voltage operation at 100-240V. The power draw is 50W total with all LEDs fully on. - LED pulse and strobe effect / flicker free operation
- 16 color change modes / 16 color fade modes / 64 built-in color macros
- Built-in WiFLY wireless DMX is compatible with ADJ's WiFLY transceivers (sold separately)

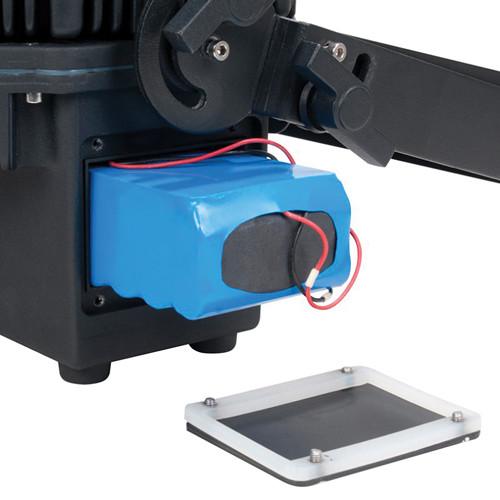

- Rechargeable lithium battery powered, with wireless DMX, IP65, & outdoor rated
UPC: 819730014252 In the Box American DJ WiFLY EXR HEX5 IP Battery Powered LED Par AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY EXR HEX5 IP Battery Powered LED Par in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WiFLY EXR HEX5 IP Specs | LEDs | 5x 5 W HEX LEDs (red, green, blue, white and amber + UV) | | Battery | Rechargeable Li-ion (with wireless DMX, IP65, & outdoor rated) | | DMX Interface | Built-in WiFLY wireless DMX (compatible with ADJ's WiFLY transceiver (sold separately) | | Wireless Range | Extended up to 2000' (610 m) | | DMX Channel Modes | 5x Channel Modes: 4, 5, 6, 10 or 11 channel modes
Beam Angle: 25-degree | | Operational Modes | 6 Modes:
Static color
RGBAW + UV dimmer mode
Color change
Color fade
Auto run (program run)
DMX controlled | | Color Change Modes | 16 color change modes / 16 color fade modes / 64 built-in color macros | | Effects | LED pulse and strobe effect / flicker free operation
Electronic Dimming: 0 - 100% | | Power Outlets | 4-pin power AC in/out outlets on rear to daisy chain power (up to 11 units) | | Power Draw | 50 W total (all LEDs @ full on) | | Voltage | Multi-voltage operation: AC 100-240 V, 50/60 Hz | | Dimensions (L x W x H) | 12.3 x 11.0 x 7.5" (310 x 280 x 194 mm) | | Weight | 12 lb (5.48 kg) | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 14.4 x 12.2 x 9.8" |
