User Manual for American DJ WiFly Par QA5 Rechargeable Compact Wash Fixture with WiFLY Transceiver Click to enlarge the picture
Contents of the user manual for the American DJ WiFly Par QA5 Rechargeable
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ WiFly Par QA5 Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

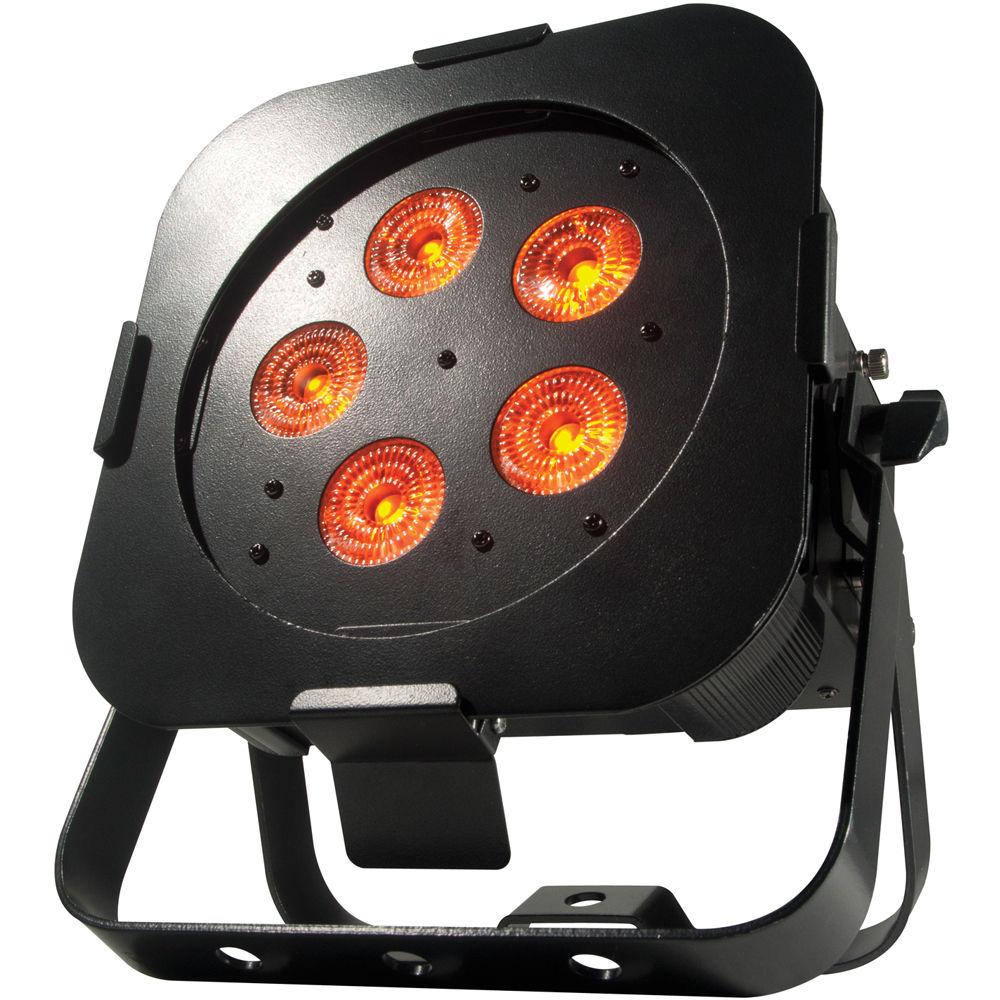

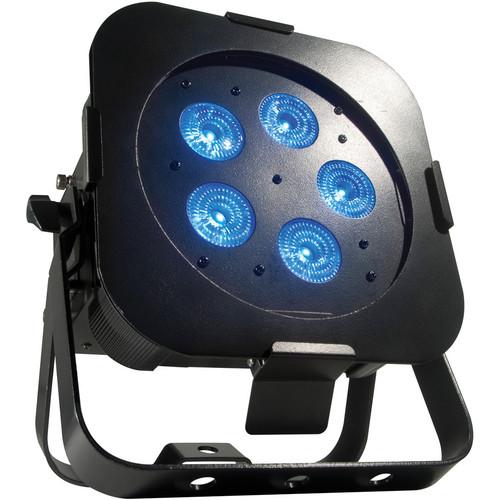

Product description The American DJ WiFly Par QA5 Wash Fixture is compact, rechargeable, and lithium battery powered. It comes with a WiFLY Transceiver and a built-in wireless DMX. It offers the power of 5x 5W RGBA Quad LEDs (Red, Green, Blue, and Amber) to create rich hues and smooth color mixing for stage or wall washing. It also offers the freedom to set up your fixture wherever you wish without the restrictions of power or DMX cabling. The built-in battery lasts for up to 6 hours (full on) from a full, single charge. WiFLY’s Transceiver communicates up to a distance of 400' (open line of sight).
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 55W. DMX addressing may also be changed by the unit’s 4-button LED display or controlled by a DMX Controller by DMX cabling or via ADJ’s standalone WiFLY Transceiver, or the ADJ RFC wireless remote control (both sold separately). The WiFLY Par QA5 Wash Fixture operates in AC or DC power. - Rechargeable, lithium battery powered, slim flat par fixture with 5x 5W QUAD LEDs (4-in-1 RGBA: Red, Green, Blue, and Amber) and wireless DMX

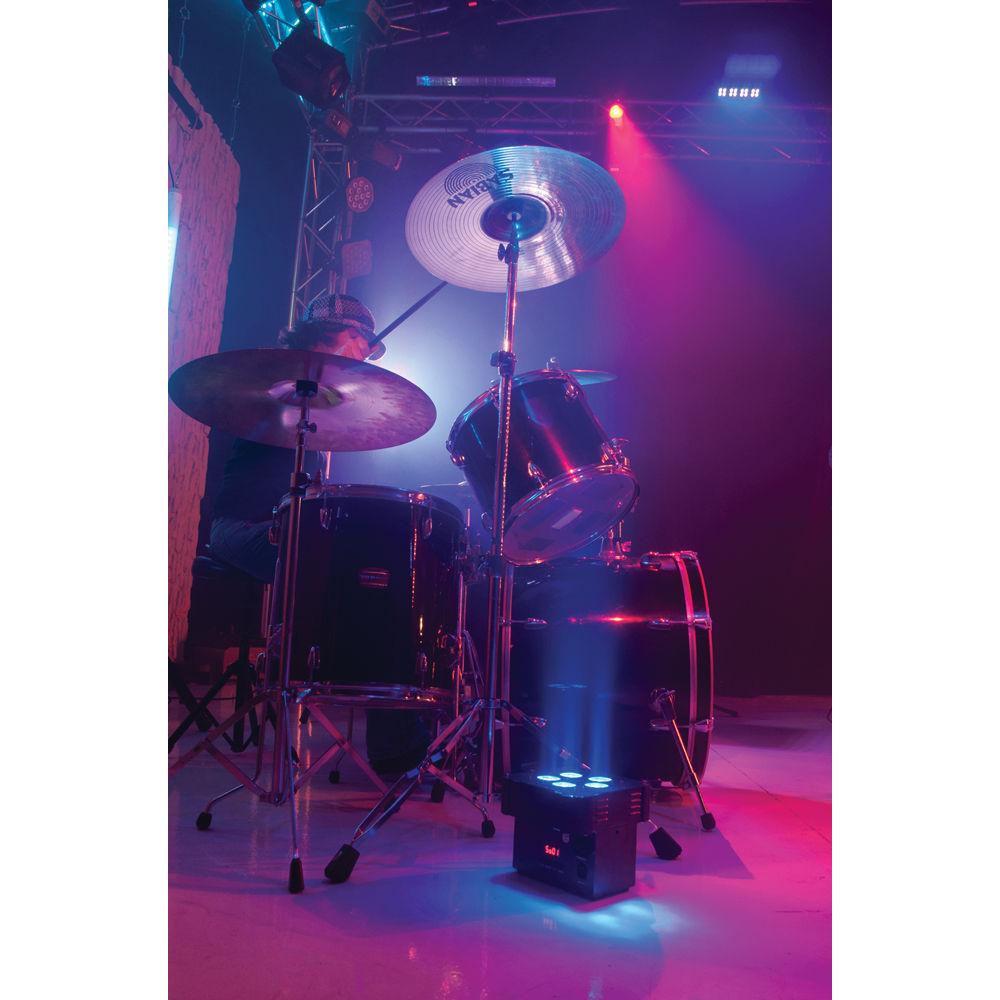

- Sit flat design and power and DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside a truss
- Variable RGBA color mixing offers a seemingly unlimited color palette
- Designed for stage or wall washing
- Compatible with WiFLY Transceiver Wireless DMX onboard
- Compatible with RFC wireless remote control (sold separately)
- 8 DMX Channel Modes: 1, 2, 3, 4, 5, 6, 7, or 8 channel modes
- 6 Operational Modes: Manual Color; Color Change; Color Fade; Auto (Program Run); Sound Active, and DMX-512
- Smooth RGBA color mixing (fast or slow color change operation)
- QUAD LED (4-in-1) projects no RGB shadows
- LED pulse and strobe effect
- 0 to 100% electronic dimming
- Linkable via 3-pin XLR cable (In/Out)

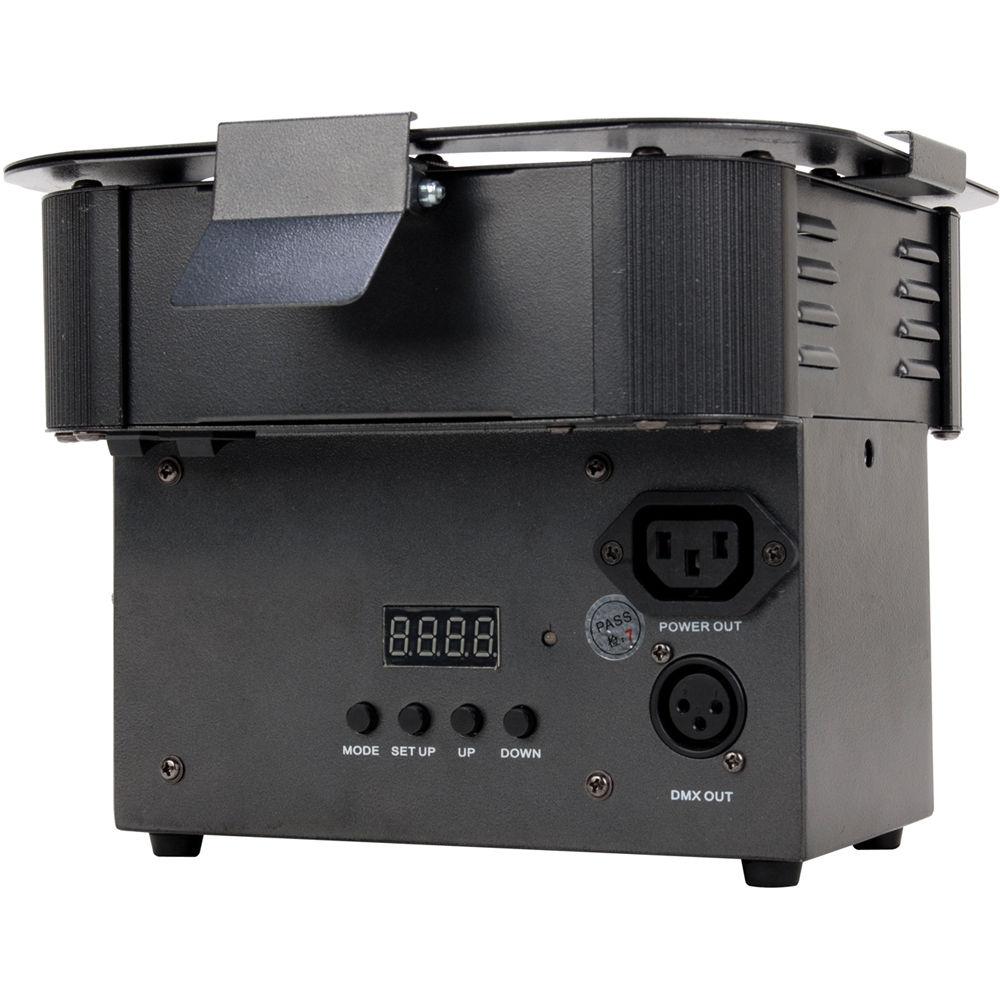

- 4-button LED DMX display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground

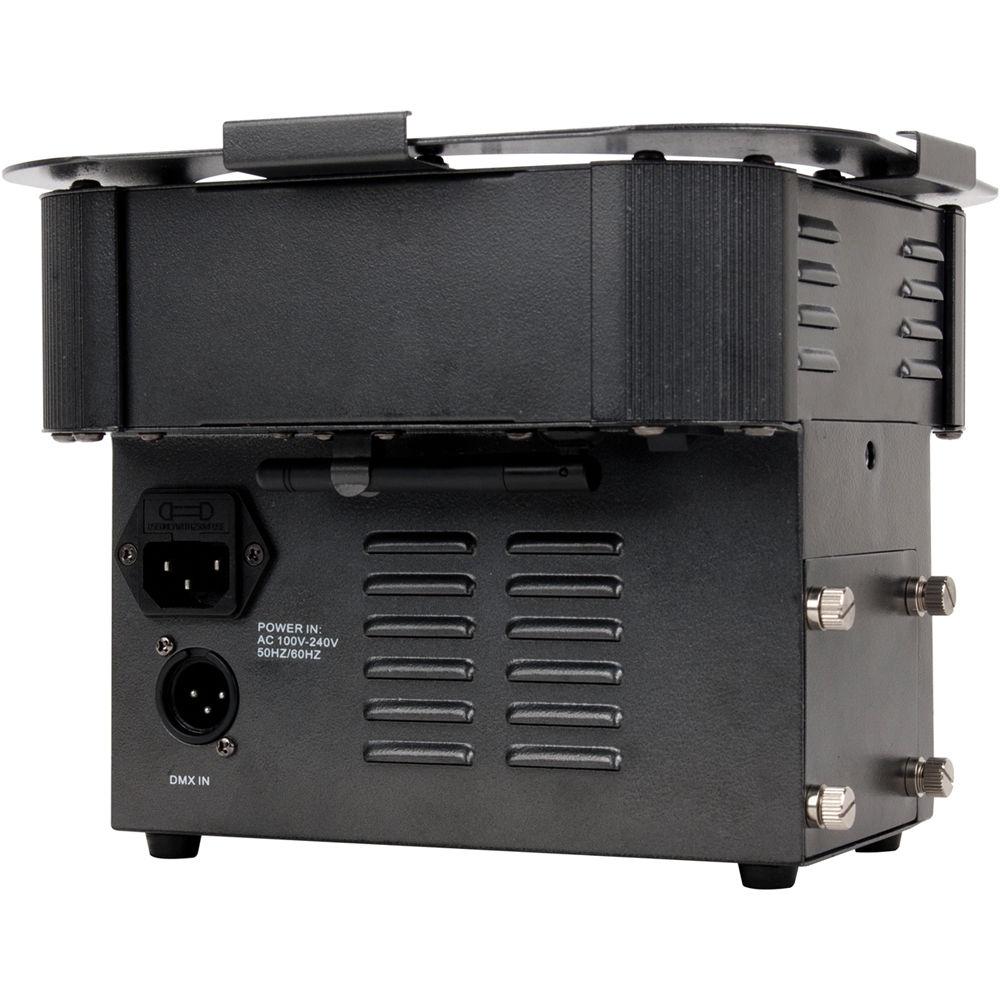

- IEC AC In/Out outlets on rear to daisy chain power (up to 10 units)
- Includes gel frame for optional diffusion filters
- Run all night; no duty cycle
- Long Life LEDs (50,000 hours)
- Rechargeable Lithium Battery Life: 6 hours full on (with full charge) and 9 hours charge time
- Multi-Voltage Operation: 100 to 240VAC, 50/60 Hz (IEC power In/Out)
UPC: 819730010100 In the Box American DJ WiFly Par QA5 Rechargeable Compact Wash Fixture with WiFLY Transceiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFly Par QA5 Rechargeable Compact Wash Fixture with WiFLY Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WiFLY Par QA5 Specs | Voltage | 100 to 240 VAC, 50/60 Hz | | Battery Life | 6 hours full on (Full charge) | | Battery Lifetime | Average lifetime is 500 charges Depends on charging frequency | | LEDs | 5 x 5 W Quad LEDs (RGBA 4-in-1) | | Beam Angle | 25° | | Positions | Any safe working position | | Power Draw | 58 W | | Daisy Chain | Power Cord: 10 fixtures maximum | | Fuse | 2 A | | Colors | RGBA color mixing | | DMX Channels | 8 DMX Modes: 1 Channel Mode,
2 Channel Mode, 3 Channel Mode,
4 Channel Mode, 5 Channel Mode
6 Channel Mode, 7 Channel Mode,
and 8 Channel Mode | | Dimensions | 10.5 x 9.5 x 6.5" (265.0 x 240.0 x 164.0 mm) | | Weight | 10.0 lb (4.2 kg) | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 12.3 x 11.6 x 8.0" |
