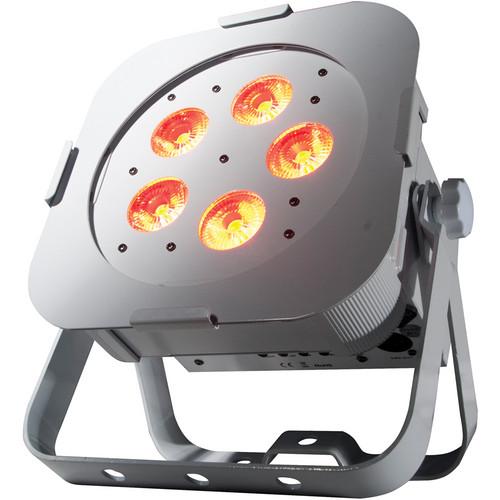

User Manual for American DJ WiFLY Par QA5 WH DMX LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY Par QA5 WH
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ WiFLY Par QA5 WH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The white WiFLY Par QA5 WH DMX LED Fixture from American DJ offers the power of 5 x 5W RGBA Quad LEDs (Red, Green, Blue & Amber) to create rich hues and smooth color mixing for stage or wall washing, plus the freedom to set up your fixture without the restrictions of power or DMX cabling. The fixture uses a built-in rechargeable lithium battery and can be wirelessly controlled up to 400’ in open line of sight by using WiFLY’s transceiver with built-in wireless DMX (sold separately). The built-in battery will keep a charge for up to 6 hours (full on) from a full, single charge. The fixture features a metal casing with a white powder coat finish.The WiFLY Par QA5 WH Fixture uses LEDs rated at 50,000 hours with a maximum power draw of 55W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX controller by DMX cabling or via the standalone WiFLY transceiver, or RFC wireless remote control (both sold separately). The WiFLY Par QA5 unit operates in AC or DC power. - Slim flat par fixture with wireless DMX and 5 x 5W QUAD LEDs (4-in-1 RGBA- Red, Green, Blue, & Amber)
- Operates on built-in, rechargeable lithium battery
- Metal casing with white powder coat finish
- Sit flat design where power & DMX I/O are intelligently designed so the unit can be set flat on the ground or set inside truss
- Variable RGBA color mixing offers a seemingly unlimited color palette suitable for stage or wall washing
- Compatible with WiFLY transceiver wireless DMX onboard
- Also compatible with American DJ's RFC wireless remote control (sold separately)
- 8 DMX channel modes: 1, 2, 3, 4, 5, 6, 7, or 8 channel mode
- 6 operational modes include Manual Color Mode, Color Change Mode, Color Fade Mode, Auto (Program Run) Mode, Sound Active Mode, and DMX-512 Mode
- Smooth RGBA color mixing (fast or slow color change operation)
- QUAD LED (4-in-1) projects no RGB shadows
- LED pulse and strobe effect
- Electronic dimming from 0 to 100%
- Linkable via 3-pin XLR cable (In/Out)
- 4-button LED DMX display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground
- IEC AC In/Out outlets on rear to daisy chain power (up to 10 units)
- Includes gel frame for optional diffusion filters
- Long-life LEDs last up to 50,000 hours
- Run all night - no duty cycle
UPC: 819730010827 In the Box American DJ WiFLY Par QA5 WH DMX LED Fixture (White) Gel Frame Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY Par QA5 WH DMX LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WiFLY Par QA5 WH Specs | Battery Life | 6 hours | | Battery Lifetime | Average lifetime is 500 charges | | LEDs | 5 x 5 W Quad LEDs (RGBA 4-in-1) | | Beam Angle | 25° | | Power Draw | 55 W | | Daisy Chain | 10 fixtures maximum | | Fuse | 2 A | | Dimming | 0 to 100% | | LED Life | up to 50,000 hours | | Colors | RGBA color mixing | | DMX Channels | 1, 2, 3, 4, 5, 6, 7, or 8 channel modes | | Voltage | 100 to 240 VAC, 50 to 60 Hz | | Dimensions (L x W x H) | 10.5 x 9.5 x 6.5" (265.0 x 240.0 x 164.0 mm) | | Weight | 10.0 lb (4.2 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 9.0" |
