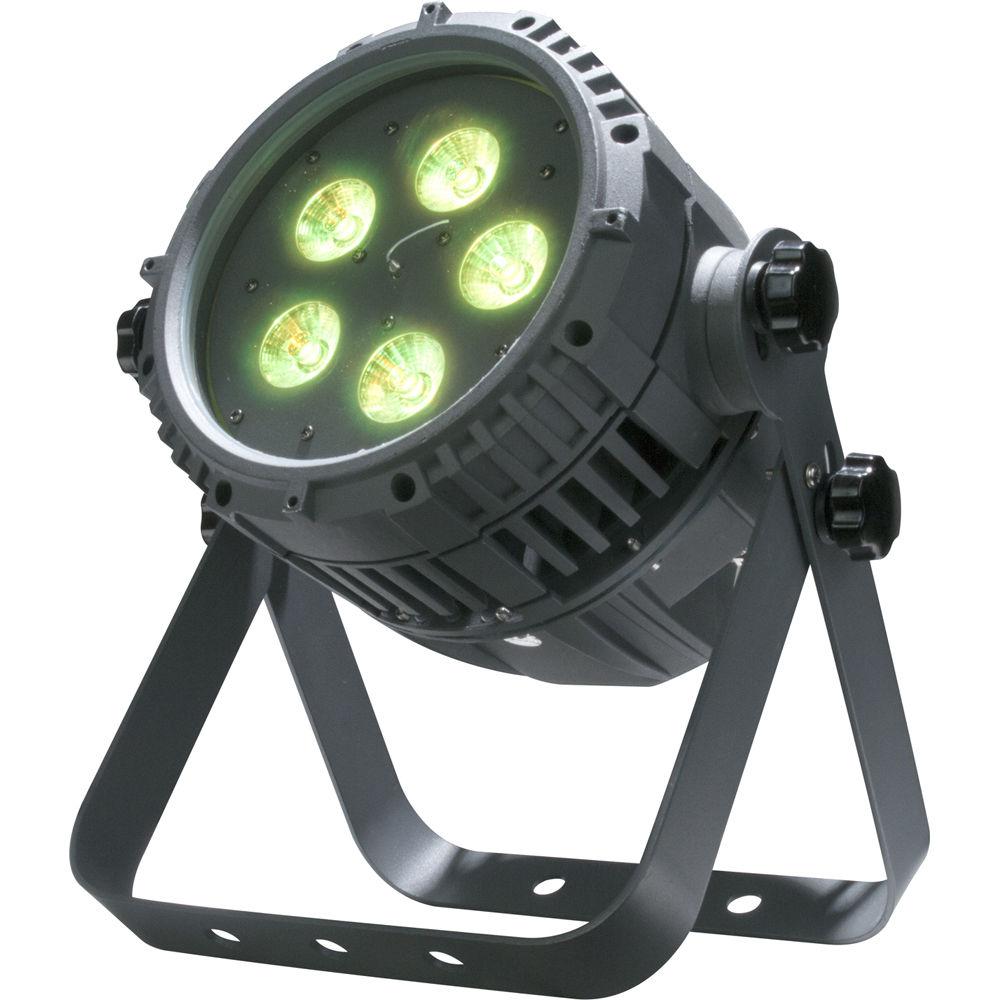

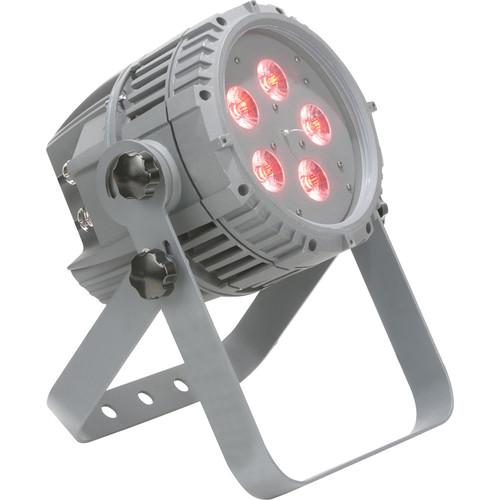

User Manual for American DJ WiFLY QA5 IP IP65-Rated Outdoor LED Wash Fixture with Built-In Wireless DMX Click to enlarge the picture
Contents of the user manual for the American DJ WiFLY QA5 IP IP65-Rated
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ WiFLY QA5 IP IP65-Rated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The WiFLY QA5 IP IP65-Rated Outdoor LED Wash Fixture from American DJ offers the power of 5 x 5W RGBA Quad LEDs (Red, Green, Blue, & Amber) to create rich hues and smooth color mixing for stage or wall washing. The fixture can be wirelessly controlled up to 500’ in open line of sight by using the WiFLY transceiver (sold separately).This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 35W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via the standalone WiFLY transceiver(sold separately). Note: Transceiver is sold separately. - IP65 outdoor-rated fixture with five Quad RGBA LEDs (4-in-1 Red, Green, Blue, & Amber LEDs)
- Built-in WiFLY wireless DMX compatible with WiFLY transceiver (sold separately)
- Variable RGBA color mixing offers a smooth, seemingly unlimited color palette suitable for stage or wall washing
- Compatible with ADJ RFC wireless remote control (sold separately)
- 5 DMX Channel Modes: 4, 5, 6, 10, and 11
- 8 Operational Modes: Manual Color, Color Change, Color Jumping, Color Dreaming, Auto (Program Run), Sound Active, & WiFLY and DMX Controlled
- LED pulse and strobe effects
- Linkable via a 3-pin IP cable (In/Out; not included)

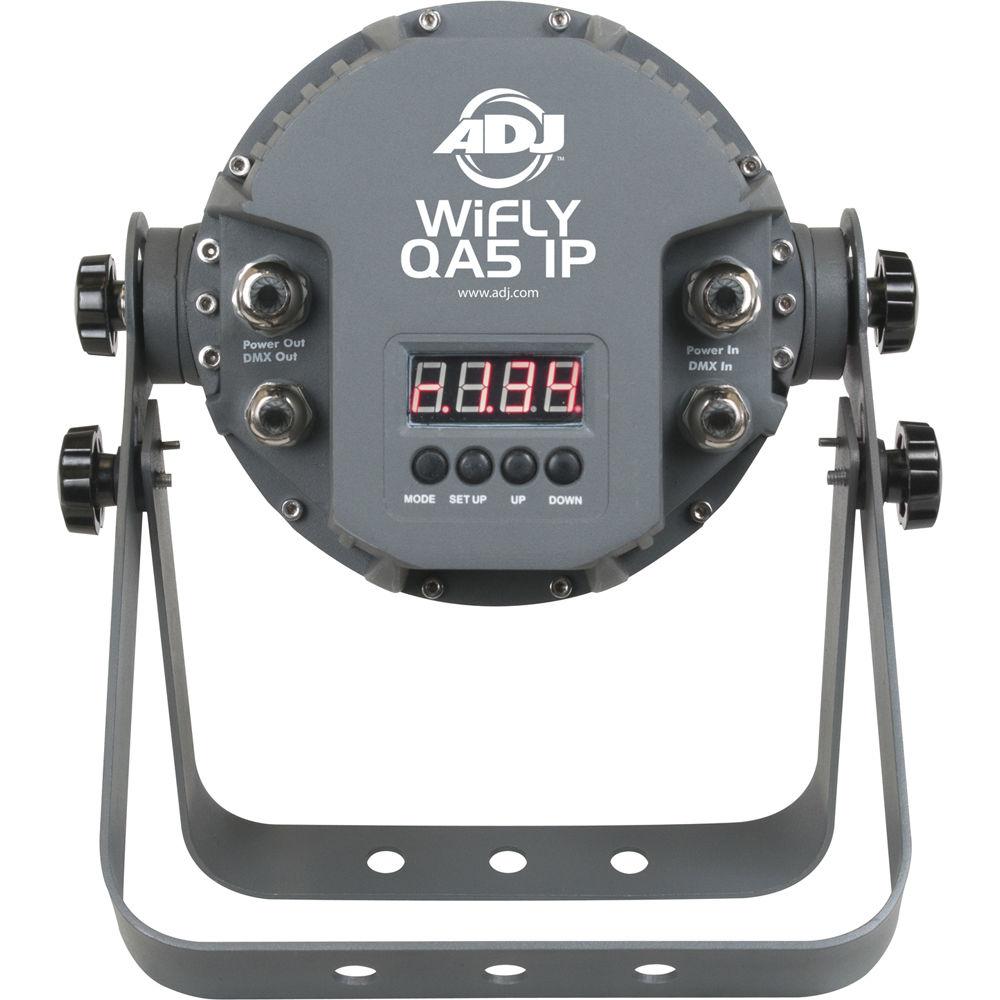

- 4-button DMX menu display on the rear panel
- Dual bracket yoke allows the fixture to be hung or set on the ground
- 4-pin power AC I/O outlets on rear to daisy chain power (up to 15 units)
- Run all night - no duty cycle
UPC: 819730012296 In the Box American DJ WiFLY QA5 IP IP65-Rated Outdoor LED Wash Fixture with Built-In Wireless DMX Limited 1-Year Warranty on Fixture Limited 2-Year Warranty on LED Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFLY QA5 IP IP65-Rated Outdoor LED Wash Fixture with Built-In Wireless DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WiFLY QA5 IP Specs | LEDs | 5 x 5 W Quad LEDs (RGBA 4-in-1) | | IP Rating | IP65 | | Beam Angle | 40° | | Power Draw | 35 W | | Daisy Chain | 15 fixtures maximum | | Colors | RGBA color mixing | | DMX Channels | 5 DMX Modes: 4, 5, 6, 10, & 11 Channel Mode | | Dimming | 0 to 100% | | Power Draw | 35 W total | | Voltage | 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 10.0 x 7.5 x 12.0" (254.0 x 190.5 x 304.8 mm) | | Weight | 10.0 lb (4.5 kg) | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 9.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
