User Manual for American DJ WiFly RGBW8C DMX Wireless Controller Click to enlarge the picture
Contents of the user manual for the American DJ WiFly RGBW8C DMX Wireless
- Product category: Lighting Consoles & Controllers American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Lighting Consoles & Controllers
 |
User manual for the American DJ WiFly RGBW8C DMX Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

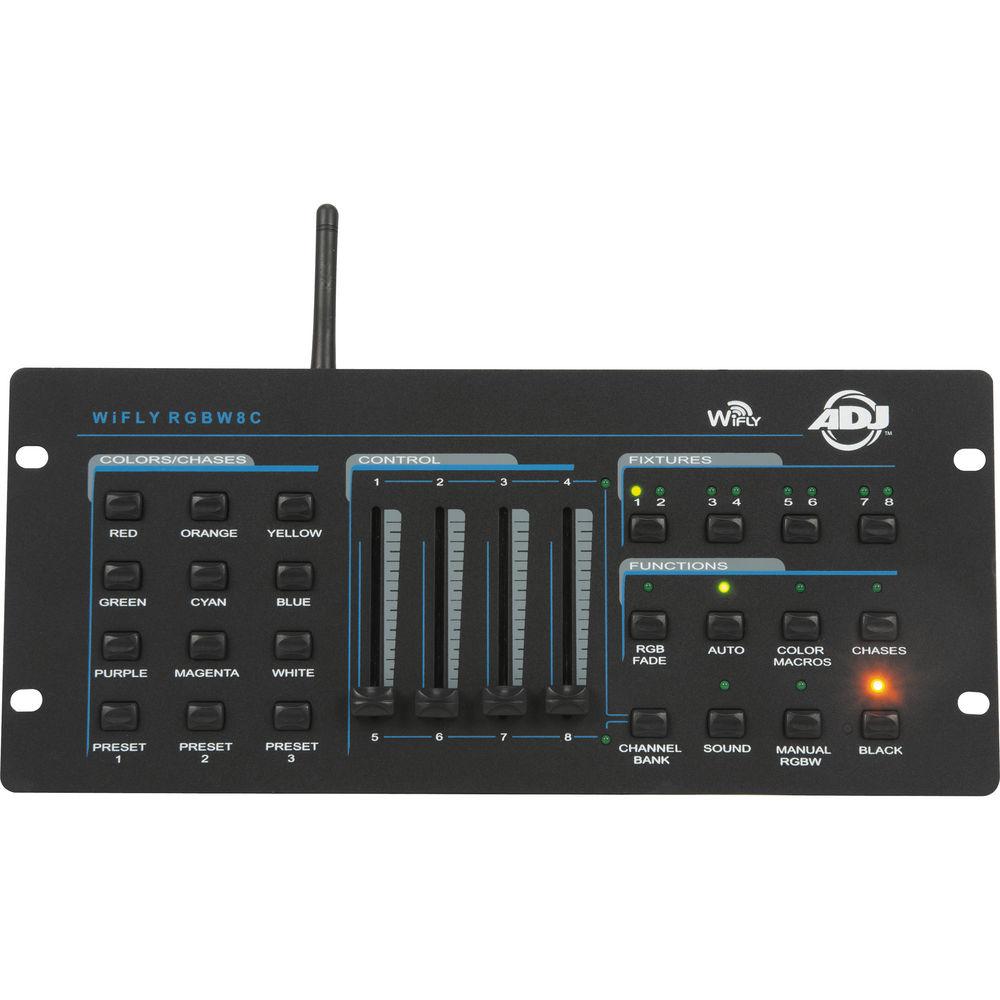

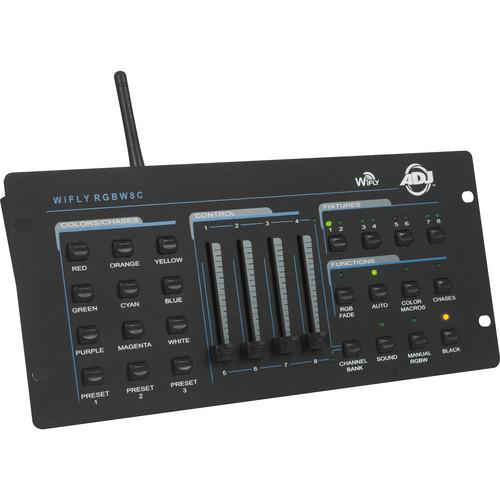

Product description What You Need to Know When Working with DMX Read More The American DJ WiFly RGBW8C Wireless DMX Controller is a 64-channel RGB, RGBW, RGBA LED wireless DMX controller. Up to 8 LED fixtures or fixture groups can be independently controlled via four fixture buttons.
All LED fixtures or fixture groups must be set to run in DMX mode and be addressed 8 channels apart for independent control. The units control panel includes 9 direct access Static Color/Chase buttons, which contain pre-programmed color presets and chase programs, 3 user programmable color preset buttons, 4 multi function faders that control RGBW intensities on the fly, as well as chase program Speed, chase program Fade Time, and Master Dimmer.
There is also an array of 8 buttons used to select the operation mode, including RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Channel Bank, Manual RGBW, and Blackout modes. The WiFly RGBW 8C is a simple and versatile LED controller. It is suitable for DJs, nightclubs, lounges, bars, and anyone that wants easy control of LED Pars, Bars, Floods, or Panels. - Compact DMX-512 controller for RGB, RGBW, and RGBA LED fixtures. Up to 8 channels can be individually controlled per fixture button
- 3 User-programmable color preset, direct access buttons
- 9 Static colors Preset/Chase program direct access buttons
- Control up to 8 individual fixtures or fixture groups
- Color Macro playback mode
- Manual control intensity mode
- RGBW faders to create desired color
- Auto, RGB Fade, Color Macros, Chase, Manual RGBW, Channel Bank, and Sound Active Modes
- On the fly Speed and Fade control of all chase programs
- Adjustable program and fade speed
- Sound Active mode via an internal microphone
- Adjustable sound sensitivity

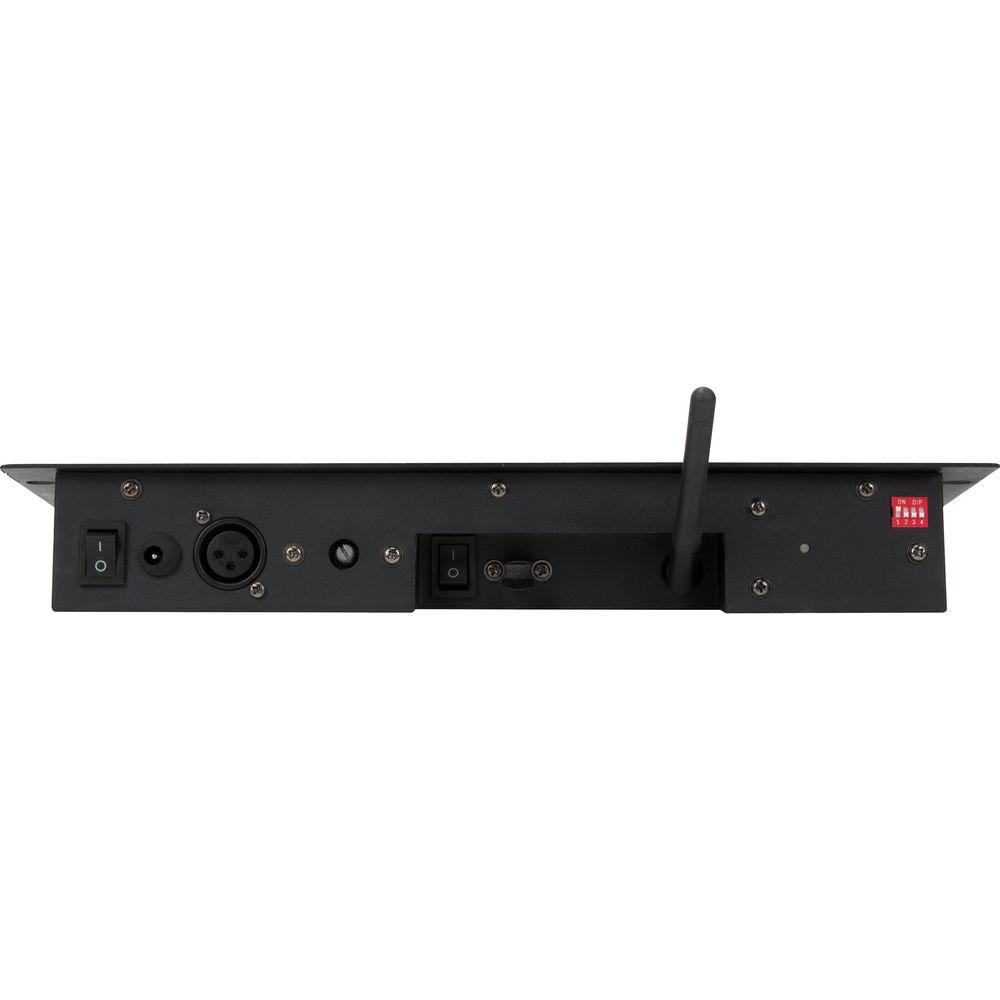

- Built-in American DJ WiFly Transceiver Wireless DMX, which allows you to wirelessly control all Wifly compatible light fixtures. (Can also be hardwired via 3-pin DMX cables)
- UL approved power supply included
UPC: 819730010131 In the Box American DJ WiFly RGBW8C DMX Wireless Controller Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ WiFly RGBW8C DMX Wireless Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ WIFLY RGBW8C Specs | DMX Connectors | 3-Pin XLR output connector | | Power Supply | 12 VDC, 500 mA (UL-approved) | | Power Consumption | 3.6 W | | Output | 3-pin XLR | | Audio | Built-in microphone | | Dimensions (L x W x H) | 13 x 5.75 x 2.0" (327 x 140 x 48 mm) | | Weight | 3.0 lb (1.3 kg) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 17.8 x 7.2 x 2.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
