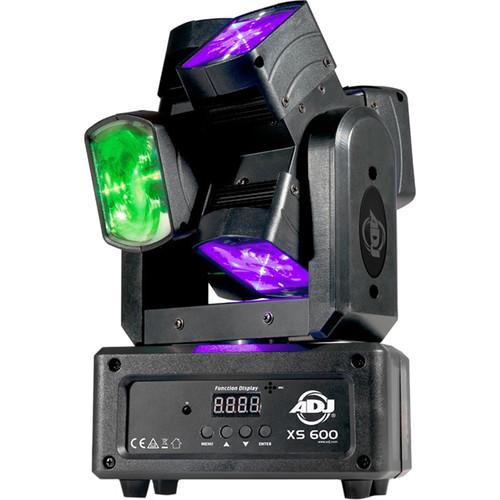

Product description The XS 600 Moving Head Fixture from American DJ features compact, dual-axis moving heads with three lenses per axis, for a total of six lenses, with both the heads and yoke capable of continuous 360° rotation. It utilizes 6 RGBW (4-in-1) 10W LEDs that project sharp, 5° beams of light. Its compact size and light weight makes it suitable for mobile entertainers, small club, and bars, roller rinks, bowling centers, or any mobile production.

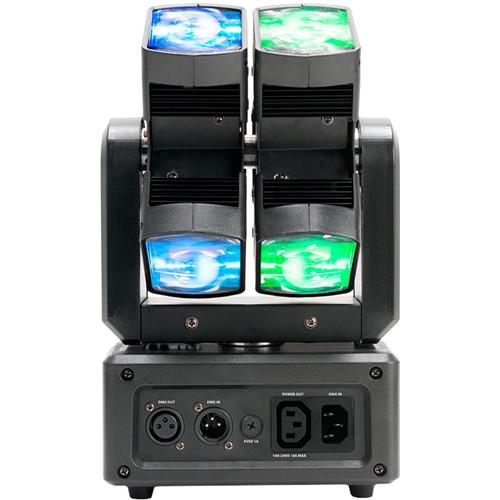

The XS 600 creates visual effects involving fast moving beams, color changes, and continuous rotation. The fixture can be operated in 3 different modes: sound active mode with sound-sensitivity adjustment, show mode with 9 built-in shows, or DMX control to create your own moving light shows or color combinations. In DMX mode, it can be operated in either of two channel modes: 25 and 31 channels. It can be used as a standalone unit or in a master/slave set up. Multiple units can be connected via the XLR 3-pin input and output connectors. Power cord daisy-chaining is also possible via the IEC input and output connectors, with support for a maximum of 8 fixtures. For additional control possibilities, the fixture is both UC IR and Airstream IR compatible (both sold separately), and can be controlled from the on-board 4-button menu system. - Features
-
- Hex-Lens Dual-Axis Continuous Moving Head Fixture
- 360° continuous rotation of both the head and yoke, in both directions (pan and tilt)
- RGBW color mixing in DMX mode
- Pixel control of each LED
- UC IR wireless controller and Airstream IR wireless app (sold separately)
- Standalone or master/slave set up
- 4-button menu system and LED display makes it easy to navigate
- 9 built-in shows
- 3-pin XLR DMX input and output connectors
- IEC input & output to daisy-chain power (connect up to 8 fixtures)
In the Box American DJ XS 600 - Hex-Lens Dual-Axis Continuous Moving Head Fixture IEC Power Cable (4') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ XS 600 - Hex-Lens Dual-Axis Continuous Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ XS 600 Specs | LEDs | 6 x 10 W (4-in-1) RGBW LEDs
(red, green, blue, white) | | LED Life Expectancy | 50,000 hour rating | | Color Mixing | RGBW | | Photometrics | 6.65' (2 m): 5331 lux
13.12' (4 m): 1242 lux | | Beam Angle | 5° | | Operational Modes | 3 x Modes: DMX, show mode, and sound active | | Built-in Shows | 9 x shows | | Duty Cycle | None | | DMX Channel Modes | 2 x Modes: 25 and 31 channels | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Display/Controls | 4-button menu system with LED display | | Wireless Control | UC IR Remote (available separately)
Airstream IR App (free download, requires additional hardware) | | Power Input Requirement | 100 to 240 VAC, 50 / 60 Hz | | Power Connectors | 1 x IEC input
1 x IEC output | | Power Linking | Up to 8 fixtures | | Power Consumption | 60 W | | Power Cable Length | 4 ft (1.2 m) | | Fuse | 1 A | | Working Position | Any safe, secure position | | Dimensions (L x W x H) | 7.75 x 5.0 x 12.5" (19.6 x 12.6 x 31.8 cm) | | Weight | 7.0 lb (3.0 kg) |
