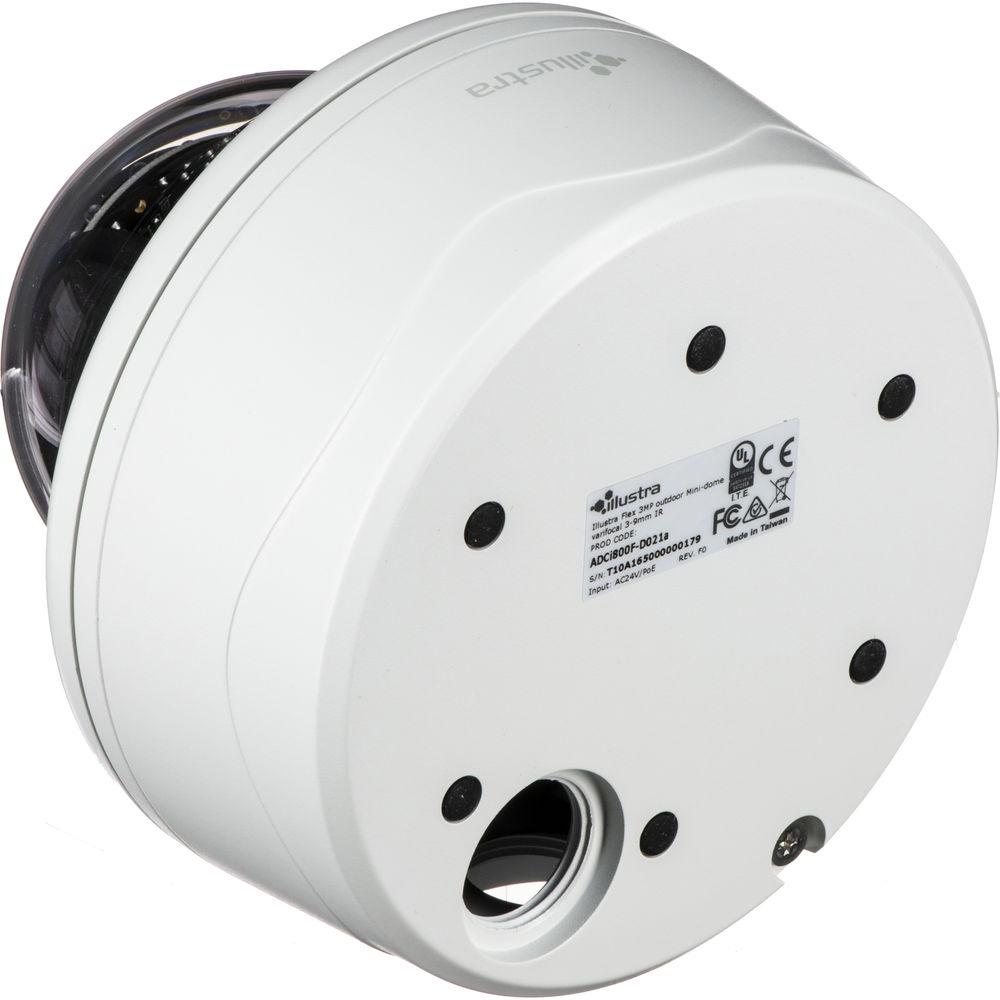

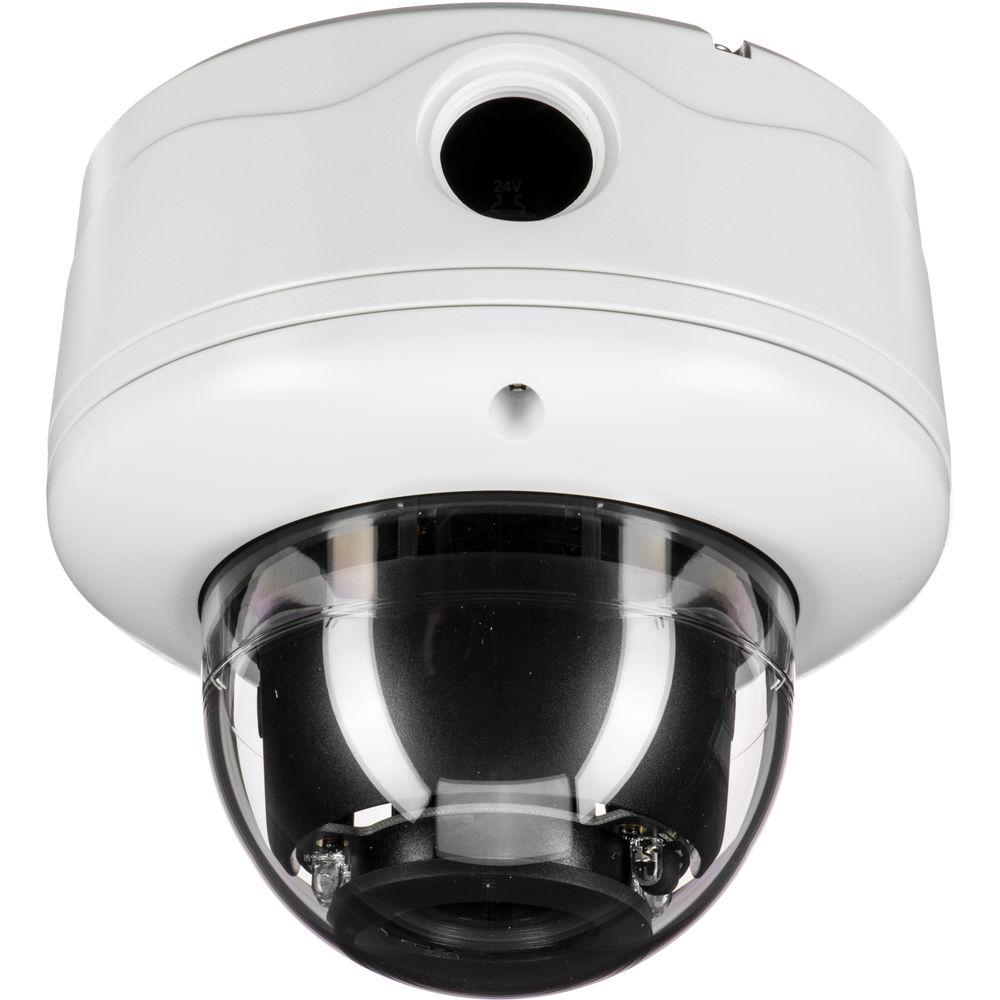

User Manual for American Dynamics ADCI800F-D021A Illustra Flex 3MP Outdoor Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the American Dynamics ADCI800F-D021A Illustra Flex 3MP
- Product category: Wired IP Cameras American Dynamics
- Brand: American Dynamics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American Dynamics Wired IP Cameras
|
User manual for the American Dynamics ADCI800F-D021A Illustra Flex 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American Dynamics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American Dynamics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American Dynamics product will considerably shorten its lifespan!
|
Product description The ADCI800F-D021A Illustra Flex 3MP Outdoor Network Mini Dome Camera from American Dynamics uses a 1/3" CMOS sensor to capture 2048 x 1536 resolution video at 15 fps. IR LEDs provide up to 50' of night vision. The camera's 3-9mm varifocal lens delivers an 86 to 30° horizontal field of view. The camera is equipped with an audio input and output. An onboard memory slot accepts microSDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - True day and night functionality thanks to IR cut filter
- H.264 and MJPEG compressions
- Compatible with Internet Explorer 8.0 or higher
- Multiple user access levels with password protection
- Simultaneous users include up to five viewers and one admin
- RoHS, WEEE, FCC, EMC, UL, CE, and CSA certified
UPC: 840456133163 In the Box American Dynamics ADCI800F-D021A Illustra Flex 3MP Outdoor Network Mini Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American Dynamics ADCI800F-D021A Illustra Flex 3MP Outdoor Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican Dynamics Illustra Flex Specs | Sensor | 3 MP 1/3" CMOS | Focal Length | 3 to 9mm | Zoom | Optical: 3x | Lens Field of View | Horizontal: 86 to 30° Vertical: 62 to 23° | IR Cut Filter | Mechanical | Day/Night | True | Minimum Illumination | B&W: 0 Lux | | Streaming Resolution | 2048 x 1536 at 15 fps 1920 x 1080 at 30 fps | Supported Video Compression | H.264, MJPEG | Multi-View Streaming | Yes, 3 Streams | | Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection | Supported Protocols | ARP, DHCP, DNS, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP | | Application Programming Interface (API) | ONVIF Profile S | Analytics | Motion Detection | Event Trigger | Yes | Event Action | Recording, Notification, Alarm | Data Streaming | Yes | | Recording Media | microSD (Up to 64 GB) | Pan/Tilt | None | Alarm I/O | 1 / 1 | I/O Connections | 1 x RJ45 1 x Power 1 x BNC | IR Range | 49.21' / 15 m | Supported Languages | Arabic Czech Danish Dutch English Finnish French German Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish | Internal Storage | None | Power Source | AC, PoE 802.3af (15 W) | Power Consumption | AC: 26 W PoE: 11.5 W | Operating Temperature | -40 to 122°F / -40 to 50°C | IP Rating | IP66 | IK Rating | IK10 | Dimensions | H: 5.5 x W: 5.8" / H: 140.0 x W: 147.0 mm | Weight | 2.9 lb / 1.3 kg | | Package Weight | 4.3 lb | Box Dimensions (LxWxH) | 9.0 x 8.95 x 8.3" |
