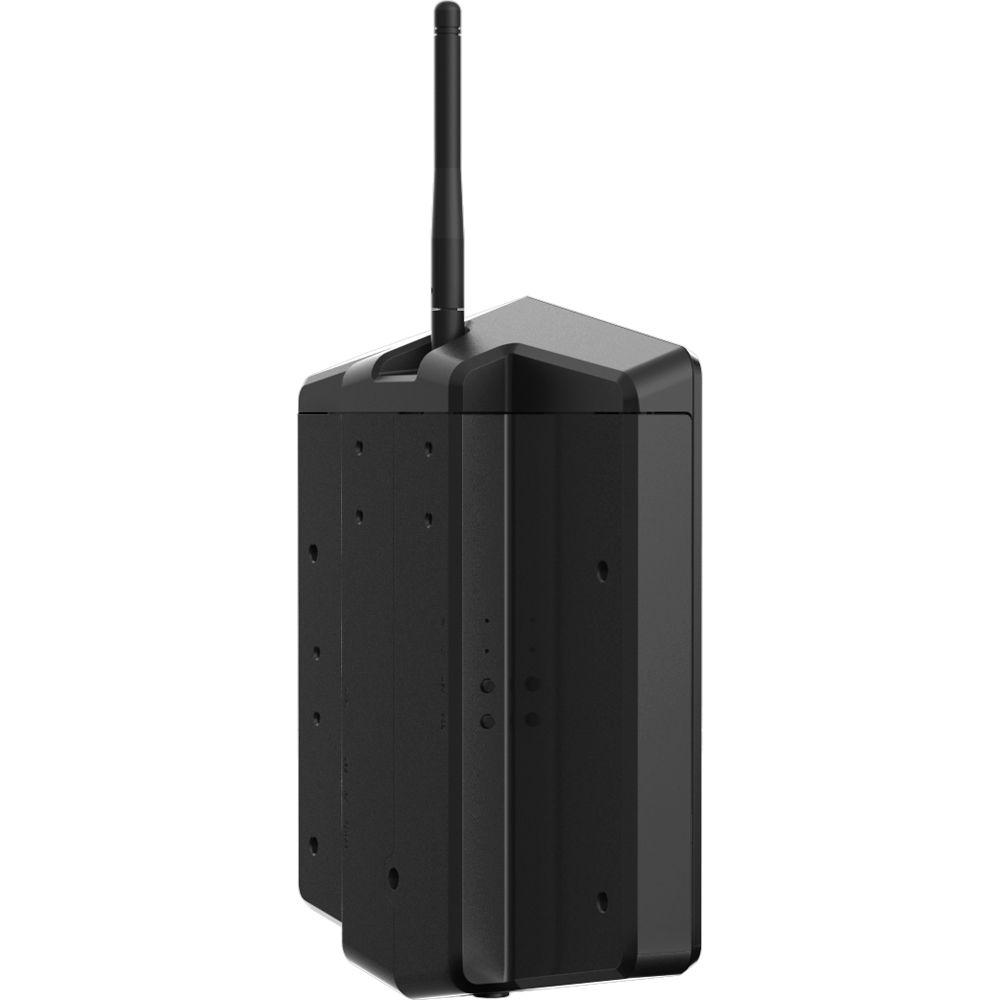

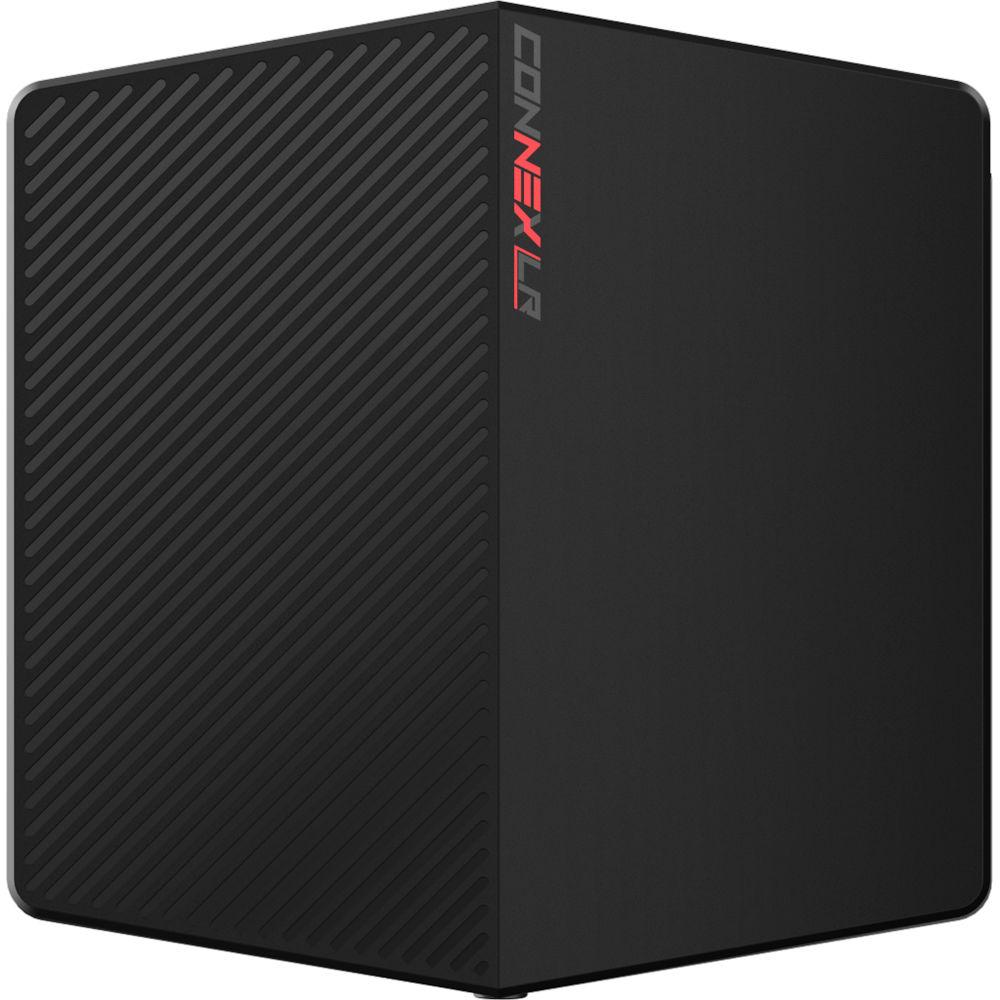

Product description Broadcast clear HD video with zero delay from up to 10,000' away with the Amimon Connex LR Receiver. The Connex LR works with either your Connex or Connex Mini transmitter to add an additional monitor to your HD Video Link system. Up to four receivers can be linked to a single transmitter with no delay or quality degradation, meaning multiple users will be able to view the live video feed on their own monitor. As part of the Connex HD Video Link system, the LR Receiver fully supports low-latency video from a UAV-mounted camera at up to 1080p60 resolution. It also incorporates an S.BUS relay so that gimbal controls for S.BUS-compatible gimbals can be relayed back to the aircraft (gimbal remote available separately), and can display OSD data from MAVLINK telemetry modules (telemetry system available separately). The video transmission is encrypted to help prevent eavesdropping. - Range up to 10,000' range line-of-sight
- Resolution support up to 1080p60
- Resilient 5 GHz digital link with AFS
- Zero latency, real-time video
- AES 128 and RSA 1024 for secure key exchange
- Built-in OSD view (CAN bus and MAVLink telemetry)
- Gimbal control over Futaba S.BUS and PPM
- Multicast up to four ground receivers
- Supports both 40 MHz bandwidth (for best quality) and 20 MHz bandwidth (for stability boost)
- Android and Mac/Windows-based management support application
- DFS support enables multiple free channels, thus boosting robustness
- Manual frequency selection option that enables setting a specific non-DSF frequency in the authorized regional spectrum
UPC: 817157020610 In the Box Amimon Connex LR Receiver HDMI Cable Power Connector S.BUS Trainer Port Cable PPM Cable Micro-USB Cables USB to Micro-USB Connector External Antenna Installation Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Amimon Connex LR Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmimon AMN0916_01 Specs | | | Range | 10,000' (3.04 km) line-of-sight | | Latency | > 1 ms | | | | Frequency | 5.1 to 5.8 GHz | | Channel Selection | Automatic frequency selection (AFS) | | Multicast Mode | Up to 4 receivers with no delay or quality degradation (requires separately available additional ground unit(s)) | | Encryption | AES-128 and RSA 1024 for key exchange | | | | Resolutions | 1080p: 60/59.94, 50, 30/29.97, 24/23.98
1080i: 60/59.94, 50
720p: 60/59.94, 50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94 | | | | OSD Support | MAVLink and CAN bus telemetry | | | | Video | 1 x HDMI (Type A) | | Antenna | 1 x SMA | | Power | 8 to 26 VDC | | | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 7.9 x 7.9 x 2.0" (200 x 200 x 50 mm) | | Weight | 23.3 oz (660 g) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 3.6" |
