User Manual for Amimon CONNEX Wireless Mini HD Video Link for UAVs Click to enlarge the picture
Contents of the user manual for the Amimon CONNEX Wireless Mini HD Video
- Product category: FPV (First Person View) Components Amimon
- Brand: Amimon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amimon FPV (First Person View) Components
 |
User manual for the Amimon CONNEX Wireless Mini HD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amimon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amimon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amimon product will considerably shorten its lifespan!
|

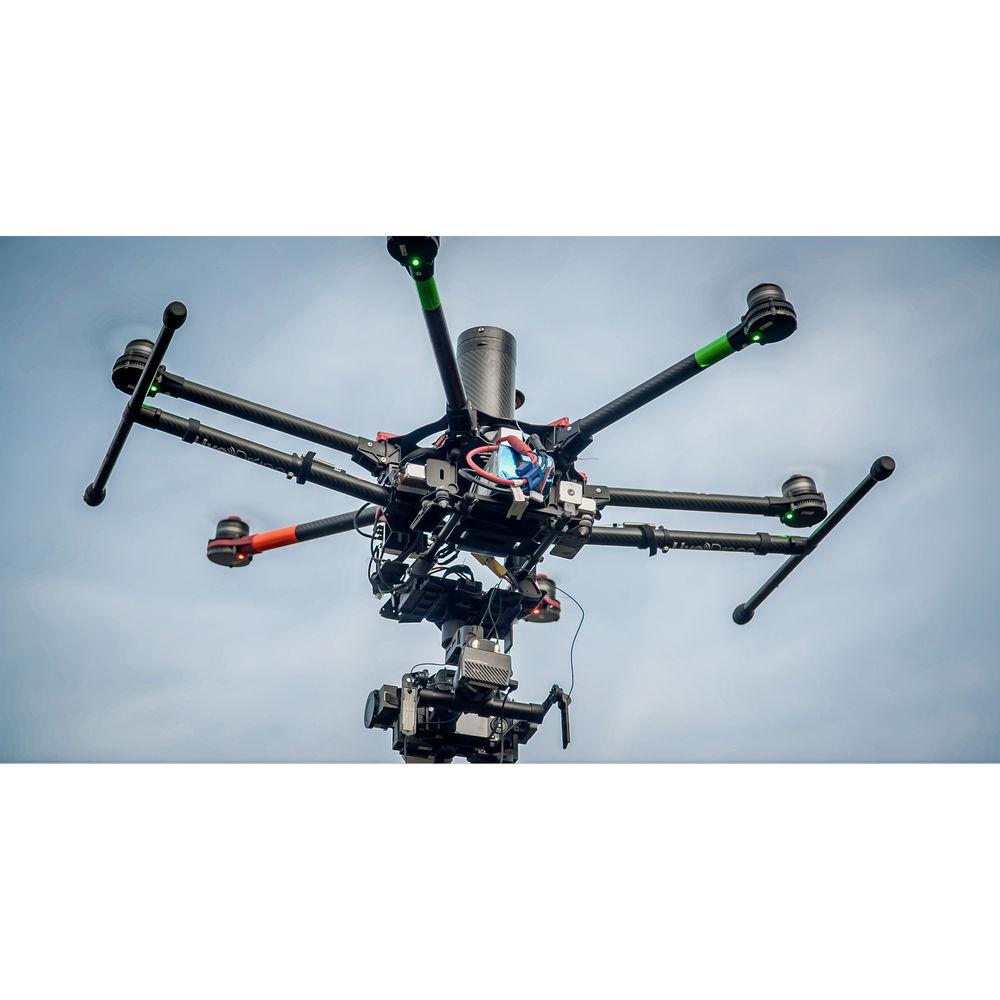

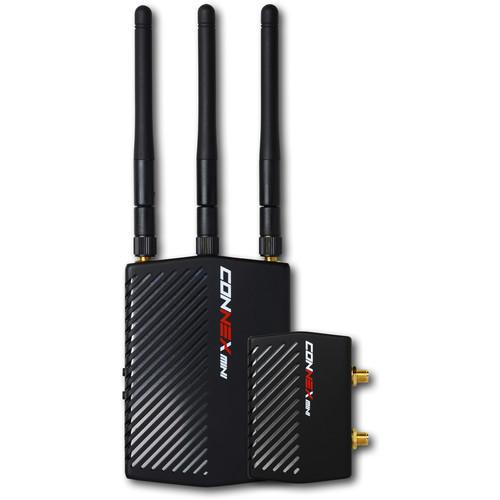

Product description Unveiled: Amimon CONNEX Mini Full HD Wireless Video Solution for UAS Read More Amimon's CONNEX Mini features the same 1080p60, zero-latency performance as the standard CONNEX, but in a scaled form factor and with a line-of-sight range of 1600'. Both the air and ground units have been reduced in size. The Air Unit weighs just 2.1 ounces, making ideal for smaller UAS, such as those carrying action cameras like a GoPro or compact mirrorless cameras like the Panasonic GH4.

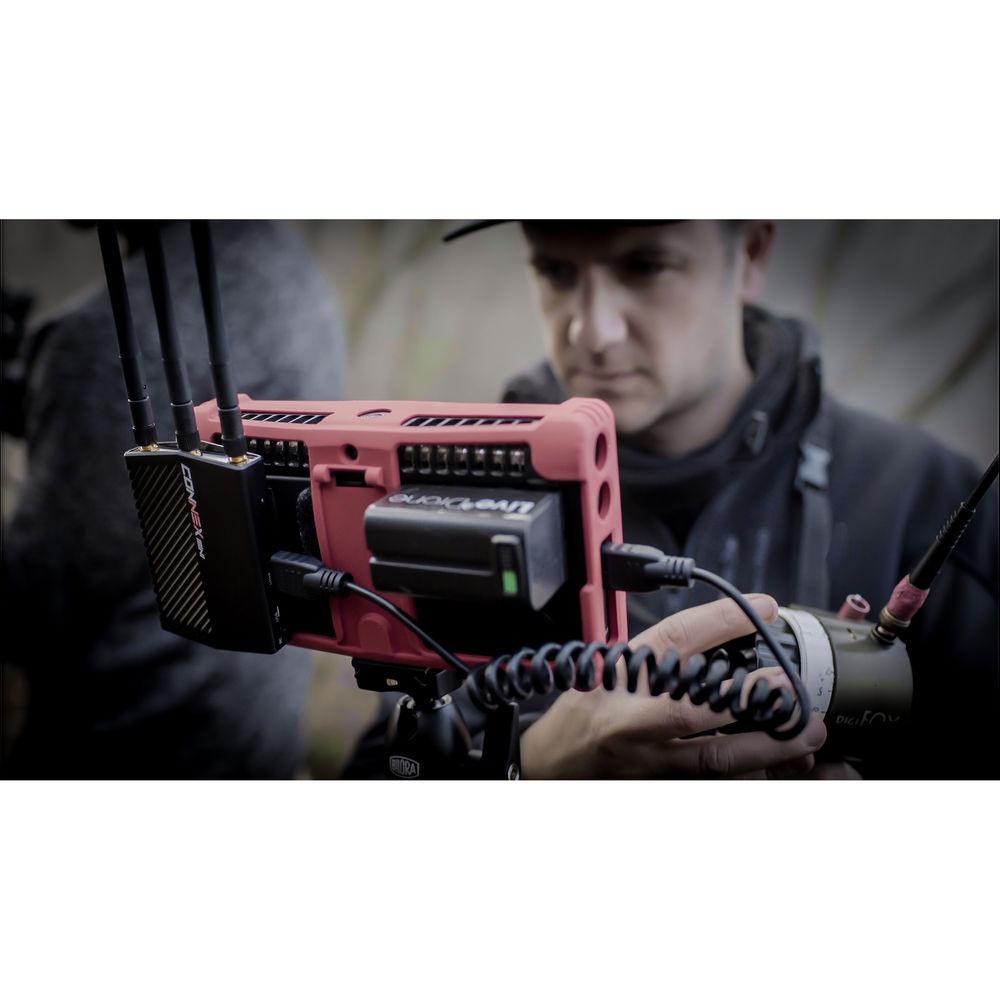

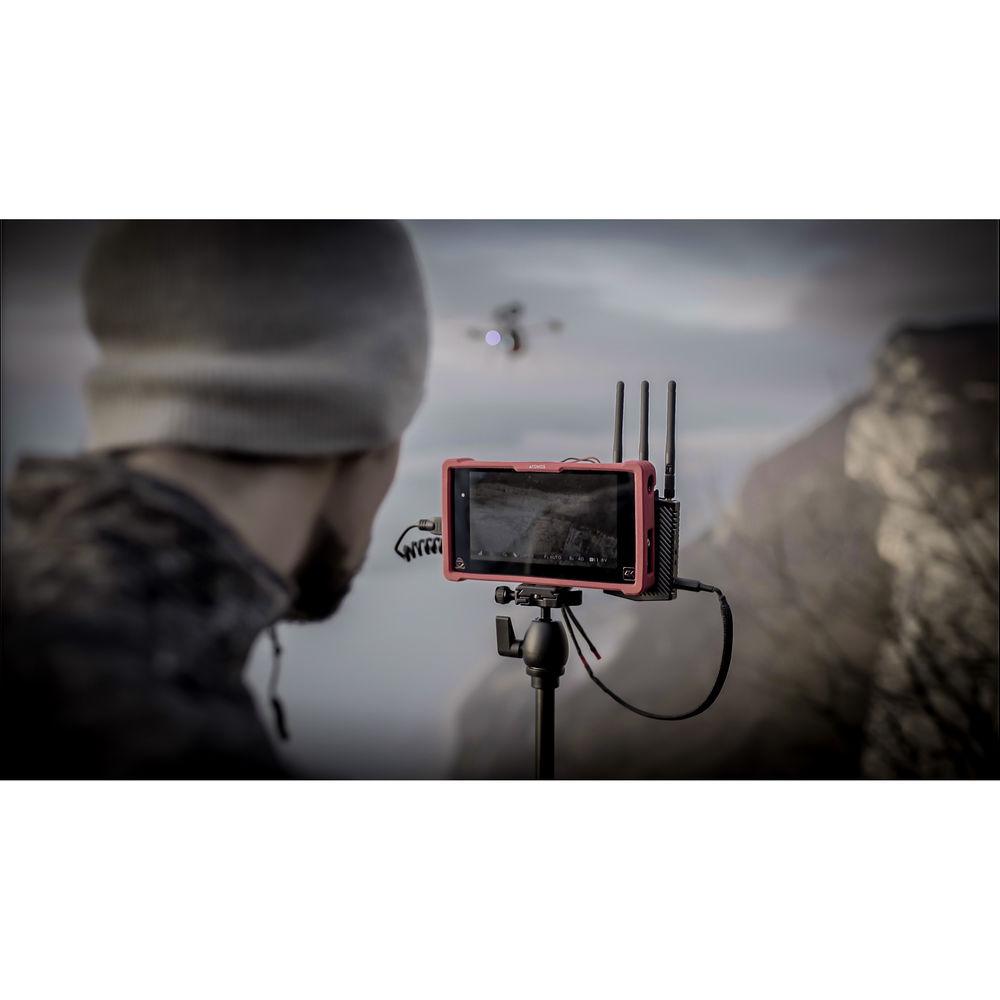

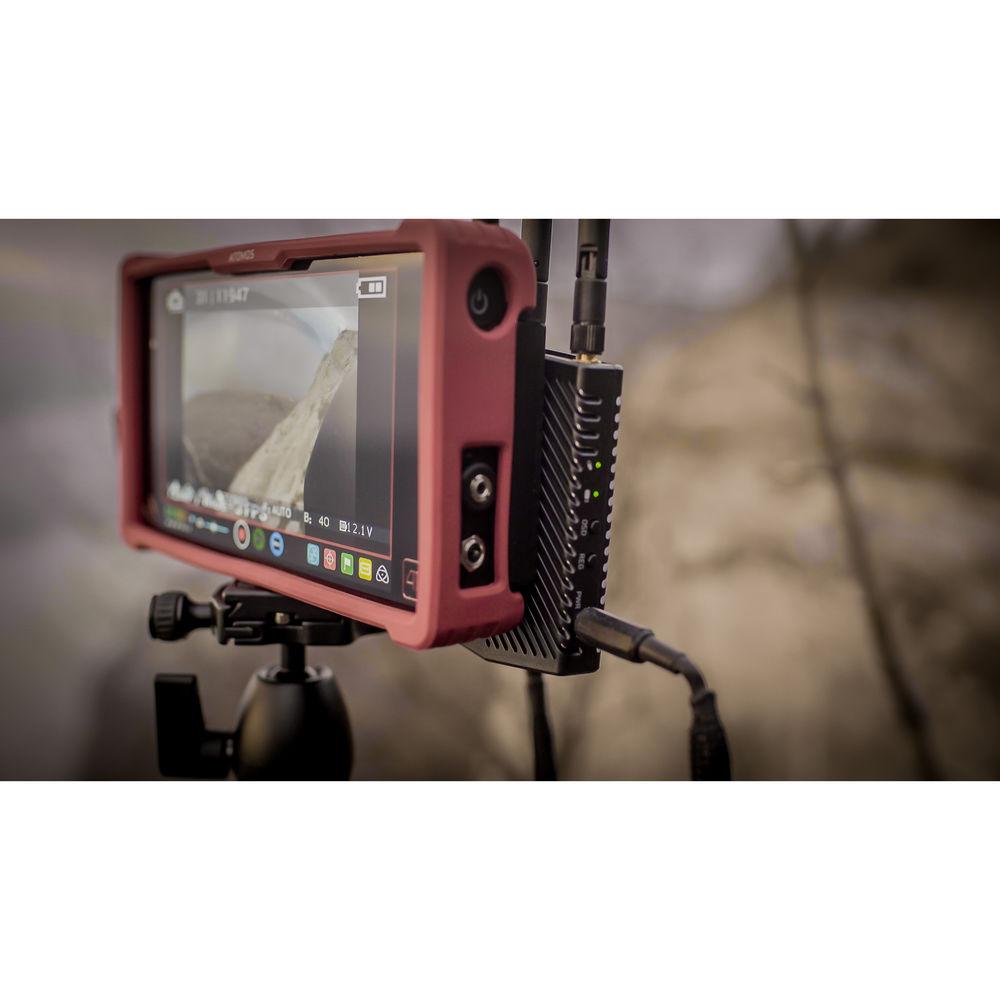

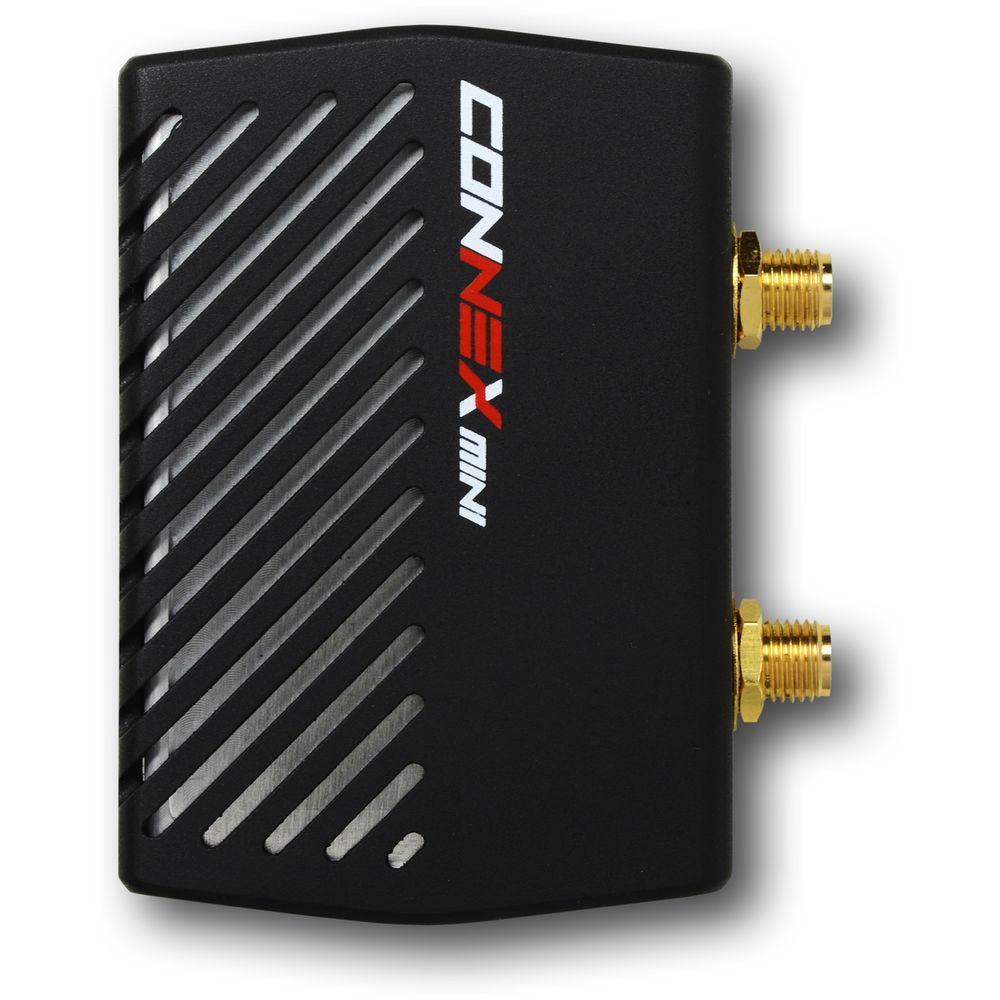

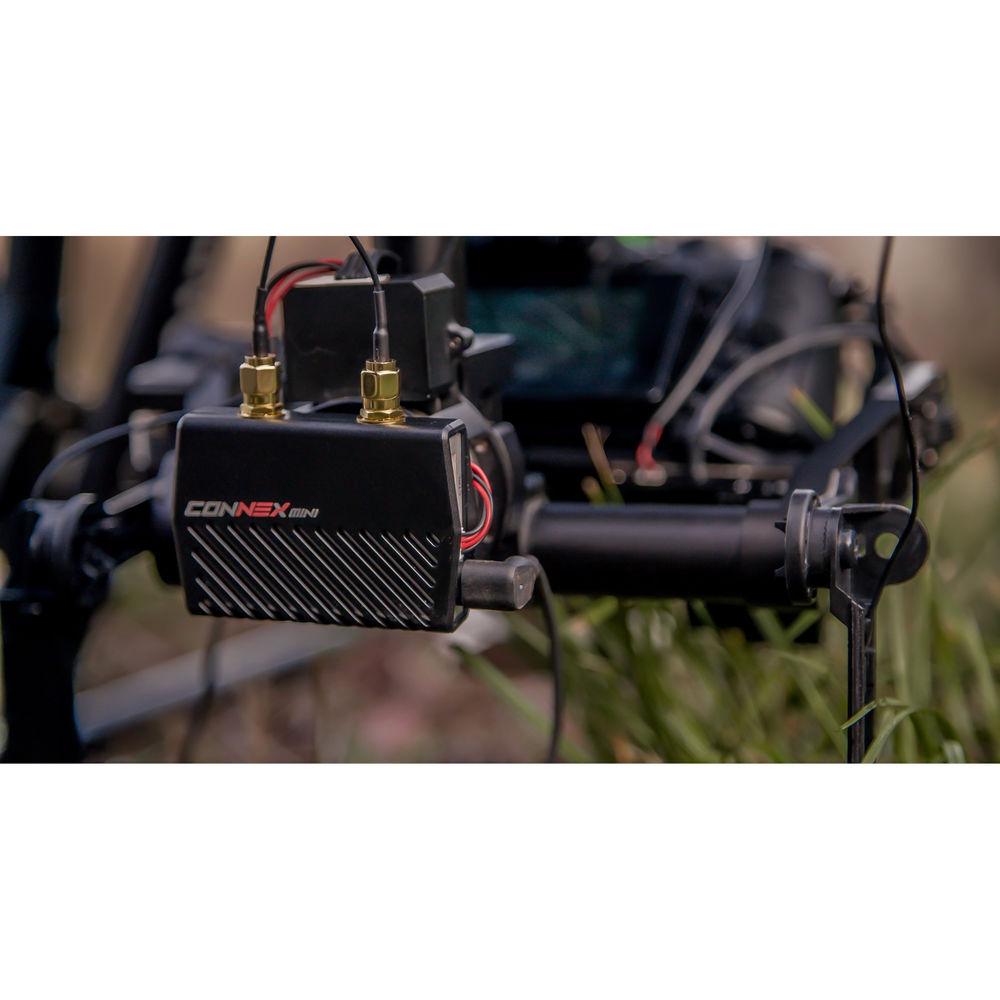

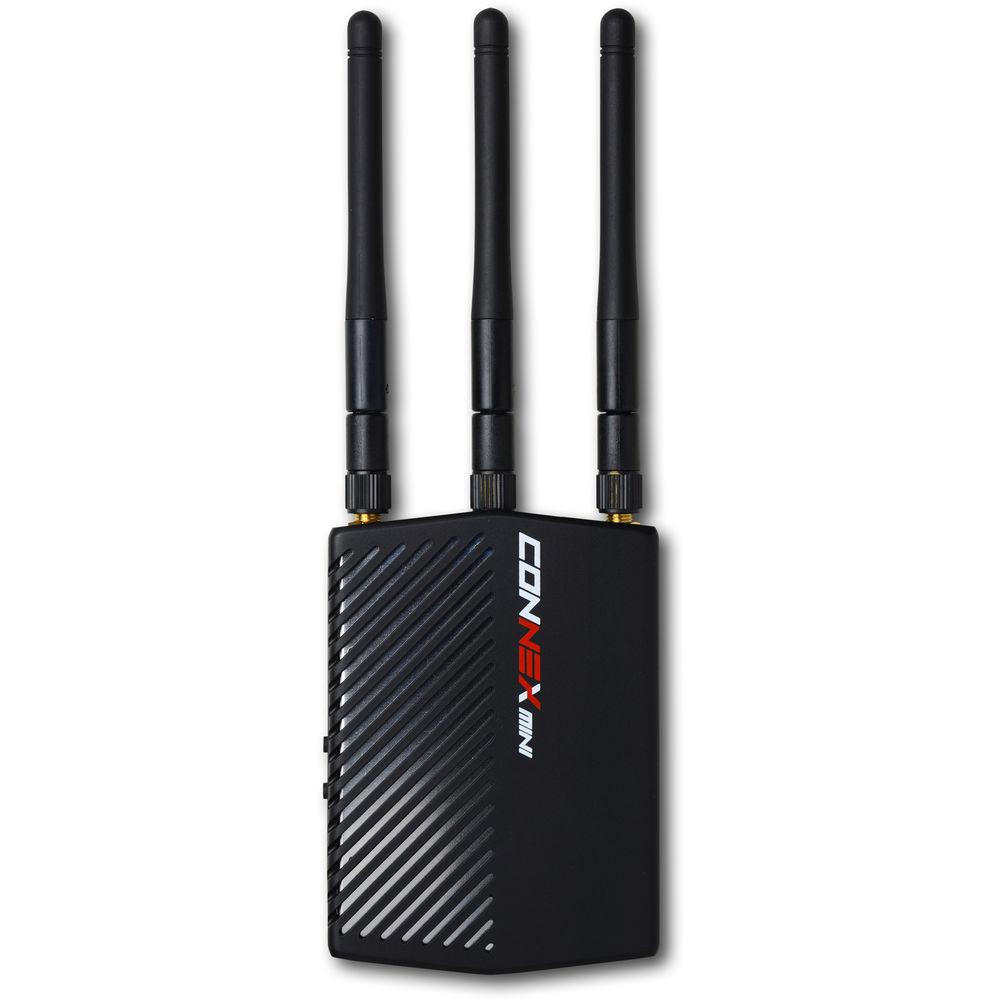

The Air Unit incorporates a micro-HDMI input and includes an adapter cable suitable for a GoPro with HDMI output (cables for other cameras available separately). On the Ground Unit, there is a standard HDMI output for connecting FPV goggles, a field monitor, or other monitoring or recording device. For applications where several users require a their own video feed, up to four ground receivers (available separately) can be linked with one Air Unit. - Plug & Fly
- CONNEX Mini is designed to setup and get you working out of the box – no complicated binding procedures here
- Full HD Resolution
- Unlike analog systems, which limit you to SD resolution, the digital CONNEX Mini system provides support for up to 1080p60
- Virtually No Latency
- Featuring less than 1 ms of latency, the CONNEX Mini does not buffer or hold your video, so you can see and control what's happening live. Use CONNEX Mini video to help you fly, aim the camera, or operate the gimbal
- 5.8G ISM Band Operation
- CONNEX Mini uses the 5.1 to 5.8 GHz frequency range to avoid interfering with aircraft control systems, which are usually 2.4 GHz. Automatic Frequency Selection (AFS) will choose the best available channel to be used and move seamlessly to an alternative channel on-the-fly if needed
- Gimbal Control
- CONNEX Mini is able to relay the control signal for an S.Bus- or PPM-controllable gimbal mounted on the UAV. A dedicated transmitter for the gimbal can then be connected to the Ground Unit via its 2.5mm transmitter port. PPM and Futaba (S.Bus) trainer port adapter cables are provided
- OSD (On-Screen Display) Overlay
- CONNEX Mini On-Screen-Display (OSD) is a great way to see your flight status. The OSD shows both information about your wireless link status, and telemetry from your UAV flight controller. It works with MAVLink- and CAN-Bus-based telemetry modules (available separately)
- Multicast Function
- The CONNEX Mini can transmit to up to four ground units simultaneously – great for applications where multiple users require a dedicated video feed (addition ground receivers available separately)
- Encrypted Transmission
- CONNEX Mini employs AES128 for the video encryption and RSA1024 for key exchange to help ensure no one unauthorized is able to intercept your video feed
- Management Software for Mobile and Desktop
- Access advanced setting and update firmware. The CONNEX management software is available for Windows, OS X, and Android
UPC: 814114020218 In the Box Amimon CONNEX Wireless Mini HD Video Link for UAVs Air Unit:
JST 4-Pin to XT-60 Power Cable JST 8-Pin to CAN-Bus / S.Bus Telemetry Cable JST 8-Pin to MAVLink / S.Bus Telemetry Cable 2 x Stern Antenna with R/P SMA-35 R/A Micro (GoPro Back facing) to L/A Micro (50 cm) Micro-USB to USB Type-A Female (OTG Cable) Micro-USB to USB Type-A Male Touch-Fastener / Tie Wraps for Mounting Antenna Clips Ground Unit:
DC to XT-60 Power Cable 2.5mm to PPM Cable (non-SBUS RCs) 2.5mm to Futaba Trainer Port Cable 3 x 2 dBi Antenna R/P Thin HDMI Cable (Type-A to Type-A) Table of Contents
|
Upload User Manual
Have you got an user manual for the Amimon CONNEX Wireless Mini HD Video Link for UAVs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmimon CONNEX Specs | | | Range | 1,600' / 500 m | | Latency | < 1 ms | | | | Frequency | Range: 5.1 to 5.8 GHz (automatic selection) | | Bandwidth | 40 MHz | | Channel Selection | Automatic | | Multicast Mode | Up to 4 receivers with no delay or quality degradation (requires separately available additional ground unit(s)) | | Encryption | AES-128 and RSA 1024 for key exchange | | | | OSD Support | CANBUS
MAVLink | | | | Video | Air Unit
1 x Micro-HDMI input
Ground Unit
1 x HDMI Type-A output | | Antenna | Air Unit
2 x SMA-35 connectors
Ground Unit
3 x 2 dBi antenna connectors | | | | Management Software | Windows
OS X
Android | | | | Dimensions | Air Unit: 2.6 x 1.8 x 0.6" / 66 x 45 x 15 mm
Ground Unit: 3.9 x 2.8 x 0.7" / 100 x 71 x 17 mm | | Weight | Air Unit: 2.1 oz / 60 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.8 x 5.4 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
