User Manual for Amimon Transmitter for CONNEX Mini HD Video Link for UAVs Click to enlarge the picture
Contents of the user manual for the Amimon Transmitter for CONNEX Mini HD
- Product category: FPV (First Person View) Components Amimon
- Brand: Amimon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amimon FPV (First Person View) Components
|
User manual for the Amimon Transmitter for CONNEX Mini HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amimon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amimon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amimon product will considerably shorten its lifespan!
|

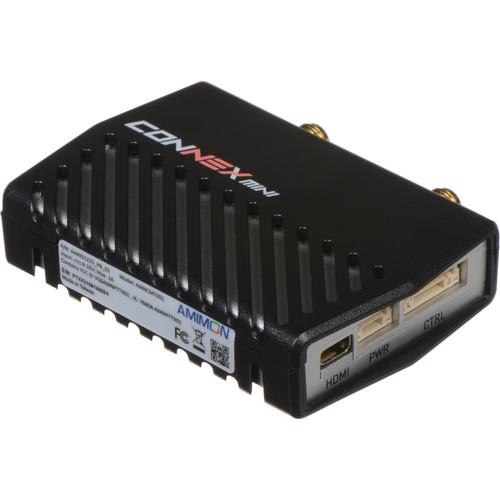

Product description The Transmitter for CONNEX Mini from Amimon is the Air Unit component of the CONNEX Mini video downlink system. The CONNEX Mini features the same 1080p60, zero-latency performance as the standard CONNEX, but in a scaled-down form factor and with a line-of-sight range of 1600'. The transmitter weighs just 2.1 ounces, making it ideal for smaller UAS, such as those carrying action cameras like a GoPro or compact mirrorless cameras like the Panasonic GH4.
Note: This is the Transmitter (Air Unit) with two antennas, a power cable, and a micro-HDMI cable. The Receiver (Ground Unit) is available separately. - Full HD Resolution
- Unlike analog systems, which limit you to SD resolution, the digital CONNEX Mini system provides support for up to 1080p60
- Virtually No Latency
- Featuring less than 1 ms of latency, the CONNEX Mini does not buffer or hold your video, so you can see and control what's happening live. Use CONNEX Mini video to help you fly, aim the camera, or operate the gimbal
- 5.8G ISM Band Operation
- CONNEX Mini uses the 5.1 to 5.8 GHz frequency range to avoid interfering with aircraft control systems, which are usually 2.4 GHz. Automatic Frequency Selection (AFS) will choose the best available channel to be used and move seamlessly to an alternative channel on-the-fly if needed
- Gimbal Control
- CONNEX Mini is able to relay the control signal for an S.Bus- or PPM-controllable gimbal mounted on the UAV. A dedicated transmitter for the gimbal can then be connected to the Ground Unit (available separately) via its 2.5mm transmitter port. PPM and Futaba (S.Bus) trainer port adapter cables are provided
- OSD (On-Screen Display) Overlay
- CONNEX Mini On-Screen-Display (OSD) is a great way to see your flight status. The OSD shows both information about your wireless link status and telemetry from your UAV flight controller. It works with MAVLink- and CAN-Bus-based telemetry modules (available separately)
- Multicast Function
- The CONNEX Mini can transmit to up to four Ground Units simultaneously – great for applications where multiple users require a dedicated video feed (receivers (Ground Units) available separately)
- Encrypted Transmission
- CONNEX Mini employs AES128 for the video encryption and RSA1024 for key exchange to help ensure no one unauthorized is able to intercept your video feed
- Management Software for Mobile and Desktop
- Access advanced setting and update firmware. The CONNEX management software is available for Windows, OS X, and Android
UPC: 814114020614 In the Box Amimon Transmitter for CONNEX Mini HD Video Link for UAVs 2 x Antennas with Mounts XT-60 (Male) Power Cable Micro-HDMI (Left-Angle) to Micro-HDMI (Right-Angle) Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Amimon Transmitter for CONNEX Mini HD Video Link for UAVs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmimon AMN1711PB_01 Specs | | | Range | 1600' / 500 m | | Latency | < 1 ms | | | | Frequency | Range: 5.1 to 5.8 GHz (automatic selection) | | Bandwidth | 40 MHz | | Channel Selection | Automatic | | Multicast Mode | Up to 4 receivers with no delay or quality degradation (receivers (Ground Units) available separately) | | Encryption | AES-128 and RSA 1024 for key exchange | | | | Resolutions | 1080p: 60, 50, 30, 25, 24 fps
1080i: 60, 50 fps
720p: 60, 50 fps
525i: 60 fps (NTSC)
625i: 50 fps (PAL) | | | | OSD Support | CANBUS
MAVLink | | | | Video | 1 x Micro-HDMI input | | Antenna | 2 x SMA-35 connectors | | | | Management Software | Windows
OS X
Android | | | | Dimensions | 2.6 x 1.8 x 0.6" / 66 x 45 x 15 mm | | Weight | 2.1 oz / 60 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.7 x 5.2 x 1.1" |
