Amphenol AC Series XLR Male Cable

Search your instruction manual in PDF to download

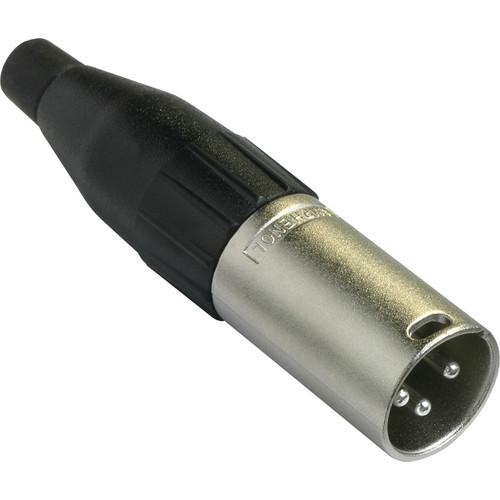

User Manual for Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell

Click to enlarge the picture
Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell Contents of the user manual for the Amphenol AC Series XLR Male Cable
  • Product category: Audio Connectors Amphenol
  • Brand: Amphenol
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Amphenol Audio Connectors

User manual for the Amphenol AC Series XLR Male Cable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Amphenol product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Amphenol user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Amphenol product will considerably shorten its lifespan!



Product description

The satin nickel AC Series XLR Male Cable Connector with Standard Metal Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a zinc diecast shell, compact 2.5mm solder bucket connections, and Jaws style cable clamps to suit 3 to 8mm cables. It offers an overmolded cable support boot and socket contacts designed for better contact resistance. Precision machined pin contacts are standard. This AC series connector is RoHS compliant.
  • Number of Contacts: 3
  • Maximum Wire Gauge Stranded Wire: 14 AWG
  • Termination: Solder
  • Flammability Rating of Plastics: UL 94 V-0
  • Environmental: Complies with EU RoHS 2 directive 2011/65/EU
UPC: 884957019205 In the Box Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell (Satin Nickel)
  • Limited 90-Day Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Amphenol AC3MM Specs

    Electrical Characteristics Service Voltage RMS: 133 V (Not suitable for domestic applications above 50 V)
    Test Voltage AC RMS: 1400 V
    Current Carrying Capacity: Solder 15 A
    Printed Circuit Board (PCB): 15 A
    Typical Contact Resistance: ≤ 3 m Ω
    Insulation Resistance: ≥ 1000 M Ω
    Climatic Characteristics Protection Class: IP 40
    Operating Temperature: -13°F to 167°F (-25˚C to 75˚C)
    Materials Connector Shell: Diecast Zinc Alloy
    Shell Finish: Nickel
    Insulators: UL94 V-0 PA66, 30% Glass filled
    Boot: UL 94 V-0 Noryl N 190 / Santoprene
    Boot Finish: Black
    Cable Clamp: Standard Solder JAWS: UL 94 V-0 Modified PPO Resin (Black)
    Sleeve: Noryl N 190
    Male Contact: Stamped solder phosphor bronze
    Plating: Tin
    Mechanical Specifications Insertion and Withdrawal Force: ≥10 N - ≤30 N
    Typical Cable Retention Force: 50 lb to 100 lb (22 kg to 44 kg)
    Cable O.D. Range: 0.118 to 0.314" (3 to 8 mm)
    Mechanical Operations: 1000 mating cycles Weight - Metal: 0.07 lb (31 g)
    Package Weight 0.08 lb
    Box Dimensions (LxWxH) 5.05 x 4.0 x 1.3"
