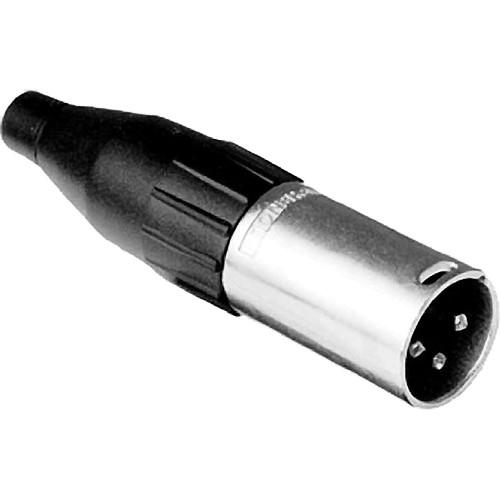

User Manual for Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell Click to enlarge the picture
Contents of the user manual for the Amphenol AC Series XLR Male Cable
- Product category: Audio Connectors Amphenol
- Brand: Amphenol
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphenol Audio Connectors
|
User manual for the Amphenol AC Series XLR Male Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphenol product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphenol user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphenol product will considerably shorten its lifespan!
|
Product description The satin nickel AC Series XLR Male Cable Connector with Standard Metal Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a zinc diecast shell, compact 2.5mm solder bucket connections, and Jaws style cable clamps to suit 3 to 8mm cables. It offers an overmolded cable support boot and socket contacts designed for better contact resistance. Precision machined pin contacts are standard. This AC series connector is RoHS compliant. - Maximum Wire Gauge Stranded Wire: 14 AWG
- Flammability Rating of Plastics: UL 94 V-0
- Environmental: Complies with EU RoHS 2 directive 2011/65/EU
UPC: 884957017843 In the Box Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell (Satin Nickel) Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol AC Series XLR Male Cable Connector with Standard Metal Shell in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol AC3M Specs | Electrical Characteristics | Service Voltage RMS: 133 V (Not suitable for domestic applications above 50 V)
Test Voltage AC RMS: 1400 V
Current Carrying Capacity: Solder 15 A
Printed Circuit Board (PCB): 15 A
Typical Contact Resistance: ≤ 3 m Ω
Insulation Resistance: ≥ 1000 M Ω | | Climatic Characteristics | Protection Class: IP 40
Operating Temperature: -13°F to 167°F (-25˚C to 75˚C) | | Materials | Connector Shell: Diecast Zinc Alloy
Shell Finish: Nickel
Insulators: UL94 V-0 PA66, 30% Glass filled
Boot: UL 94 V-0 Noryl N 190 / Santoprene
Boot Finish: Black
Cable Clamp: Standard Solder JAWS: UL 94 V-0 Modified PPO Resin (Black)
Sleeve: Noryl N 190
Male Contact: Stamped solder phosphor bronze
Plating: Tin | | Mechanical Specifications | Insertion and Withdrawal Force: ≥10 N - ≤30 N
Typical Cable Retention Force: 50 lb to 100 lb (22 kg to 44 kg)
Cable O.D. Range: 0.118 to 0.314" (3 to 8 mm)
Mechanical Operations: 1000 mating cycles Weight - Metal: 0.07 lb (31 g) | | | | Package Weight | 0.075 lb | | Box Dimensions (LxWxH) | 5.039 x 3.622 x 0.551" |
