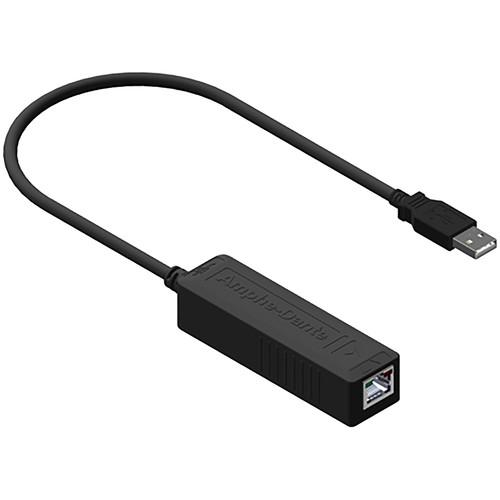

User Manual for Amphenol Amphe-Dante RJ45 Audio Adapter with USB I O Click to enlarge the picture
Contents of the user manual for the Amphenol Amphe-Dante RJ45 Audio Adapter with
- Product category: Networked Audio Systems Amphenol
- Brand: Amphenol
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphenol Networked Audio Systems
|
User manual for the Amphenol Amphe-Dante RJ45 Audio Adapter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphenol product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphenol user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphenol product will considerably shorten its lifespan!
|
Product description When you need a straightforward and rock-solid solution for routing two channels of digital signal between your computer and a Dante network, consider the Amphenol Amphe-Dante RJ45 Audio Adapter with USB I/O. This 19.7" long bidirectional USB/Dante adapter interfaces laptop or desktop computers via its USB 2.0 Type-A connector, and streams digital data at 24-bit / 48 kHz resolution to and from a Dante network via its shielded metal RJ45 connector. The heavy-duty, overmolded PVC housing protects the internal circuitry, resists tampering and breakage, and provides enhanced cable strain relief.No batteries or external power adapters are required; the adapter operates on USB power or PoE from your qualified Dante-compatible router or device. Activity such as booting, clock status, runtime errors, and more are indicated by the RJ45's integrated LEDs. - Ideal for routing two channels of digital signal between a computer and a Dante audio network
- Well suited for use with laptop and desktop computers
- 24-bit digital audio transmission at 48 kHz
- Rugged housing ensures reliability for high-end use in tours, rental deployments, and system installations
- Operates via USB power or a PoE power source compliant with IEEE 802.3af or better
In the Box Amphenol Amphe-Dante RJ45 Audio Adapter with USB I/O Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol Amphe-Dante RJ45 Audio Adapter with USB I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol RJD32U1-0050 Specs | USB Connector | 1 x USB 2.0 Type-A | | Network Port | 1 x RJ45 (Dante I/O) | | Bit Depth | 24-Bit | | Sample Rate | 48 kHz | | Network Speed | 100 Mb/s | | Network Interface | Latency from 1 ms | | Network Transport Protocol | Dante Audio over IP, AES67 RTP | | Protection Class | IP40 | | Operating Temperature | 23 to 140°F / -5 to 60°C | | Insertion and Withdrawal Force | ≥10 N to ≤35 N | | Power Consumption | <2 W | | PoE Power Requirements | USB or Class 1 IEEE 802.3af POE PD Compliant | | Construction Material | PVC 60P | | Length | 19.7" / 50 cm | | Dimensions | RJ45 (L x W x H): 4.0 x 1.1 x 0.9" / 10.1 x 2.8 x 2.4 cm | | Weight | 3.9 oz / 110 g |
