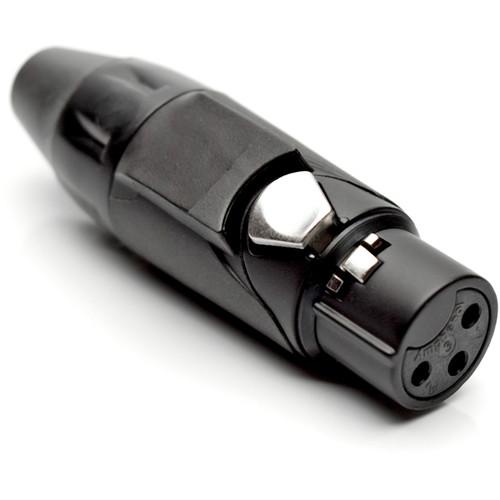

Product description The Amphenol AX3FB0M-AU is a cable connector with a 3-pole XLR female connection point. It's designed for use in audio applications, providing a 14 AWG wire gauge suitable for cable diameters between 3 and 8mm. The connector features gold contacts, a die-cast zinc alloy shell, and a black finish. For purposes of differentiation, this connector features a black mark sleeve. UPC: 884957046812 In the Box Amphenol AX3FB0M-AU 3-Pole Female XLR Connector with Gold Contacts and Black Finish (Black Mark Sleeve) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol AX3FB0M-AU 3-Pole Female XLR Connector with Gold Contacts and Black Finish in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol AX3FB0M-AU Specs | Gender | Female | | Poles | 3x | | Contact Plating | Gold, stamped | | IP Rating | IP40 | | Maximum Current Capacity | 15 A | | Termination | Solder | | Wire Gauge | 14 AWG maximum | | Flammability Rating | UL94V-0 | | Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | | Service Voltage RMS | 133 V (not suitable for domestic applications above 50 V) | | Test Voltage RMS | 1400 VAC | | Contact Resistance | <3 MOhms, typical | | Insulation Resistance | <1 GOhm | | Operating Temperature Range | -13 to 157°F / -25 to 75°C | | Cable Retention Force | 48.5 to 97.0 lb / 22.0 to 44.0 kg | | Cable O.D. | 0.1 to 0.3" / 3 to 8 mm | | Insertion / Withdrawal Force | >10 N to <30 N | | Mating Cycles | 1000 | | Housing Material | Die-cast zinc alloy | | Finish | Black | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 3.6 x 0.9 x 0.6" |
