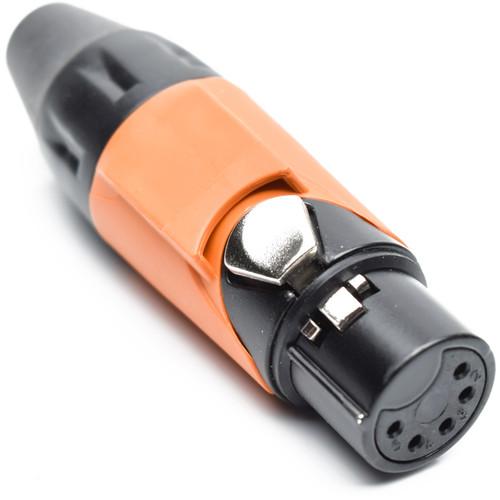

User Manual for Amphenol AX5FB3M-AU 5-Pole Female XLR Cable Connector with Gold Contacts and Black Finish Click to enlarge the picture
Contents of the user manual for the Amphenol AX5FB3M-AU 5-Pole Female XLR Cable
- Product category: Audio Connectors Amphenol
- Brand: Amphenol
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphenol Audio Connectors
|
User manual for the Amphenol AX5FB3M-AU 5-Pole Female XLR Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphenol product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphenol user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphenol product will considerably shorten its lifespan!
|
Product description The Amphenol AX5FB3M-AU 5-Pole Female XLR Cable Connector with Gold Contacts and Black Finish (Orange Mark Sleeve) is a one-piece ground/latch spring design with channel I.D capability. Featuring a colored I.D sleeve, a black-shell finish, and a chuck style cable clamp, this AX series 5-Pole Female XLR cable connector is equipped with gold-plated contacts and fits 3mm to 8mm cable diameters. The cable connector can be used for audio and video applications and provides enhanced EMI performance. - One piece ground/latch spring design incorporating twin-wipe contacts for a direct connection path from mating shell to ground that provides a solid connection and enhanced EMI performance.
- Ergonomic sleeve design for a natural grip.
- Channel I.D. capability with colored sleeves.
- Oversized ergonomic latch for quick and easy mating.
- Leading first mate last break pin 1 on socket connectors.
- Chuck style cable clamp to suit 3mm to 8mm outer diameter cable with integrated split to allow inclusion after soldering.
- Concealed latching point for improved aesthetics, sealing, and strength.
- Overmolded boot with flex-bend relief for natural aesthetics, cable protection, and boot retention.
- Concentric socket contact design provides optimal contact resistance.
- Precision-machined pin contacts as standard.
- Compact solder buckets to reduce termination time and material wastage during the soldering process.
- Zinc diecast shell housing is built for durability and is offered with a black finish.
UPC: 884957048083 In the Box Amphenol AX5FB3M-AU 5-Pole Female XLR Cable Connector with Gold Contacts and Black Finish (Orange Mark Sleeve) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol AX5FB3M-AU 5-Pole Female XLR Cable Connector with Gold Contacts and Black Finish in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol AX5FB3M-AU Specs | | | Poles | 5 | | Termination Type | Solder | | Maximum Wire Gauge | Stranded Wire Solder: 18 AWG | | Flammability Rating | UL94V-0 (for insulator plastics and housings) | | Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | | | | Service Voltage RMS | 133 V (not suitable for domestic applications above 50 V) | | Tested Voltage | 1400 V | | Maximum Current Capacity | Solder: 7.5 A | | Contact Resistance | ≤3 mOhm | | Insulation Resistance | ≥1 GOhm | | | | Protection Class | IP40 | | Operating Temperature | -13 to 167°F / -25 to 75°C | | | | Insertion and Withdrawal Force | ≥10 N to ≤30 N | | Cable Retention Force | 50 to 100 lb / 22 to 44 kg | | Cable O.D. | Range: 0.1 to 0.3" / 3 to 8 mm | | Mechanical Operation | 1000 mating cycles | | Weight | 0.073 lb / 33 g | | | | Shell Material | Diecast Zinc Alloy
Shell Finish: Black | | Insulator | UL94V-0 PA66, 30% glass filled | | Boot/Backshell | UL94V-0 Noryl N190 / Santoprene | | Cable Clamp | Noryl N190 | | Sleeve | Noryl N190 | | Female Connection Type | Stamped Solder: Phosphor bronze
Plating: Gold | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 3.0 x 2.0 x 1.0" |
