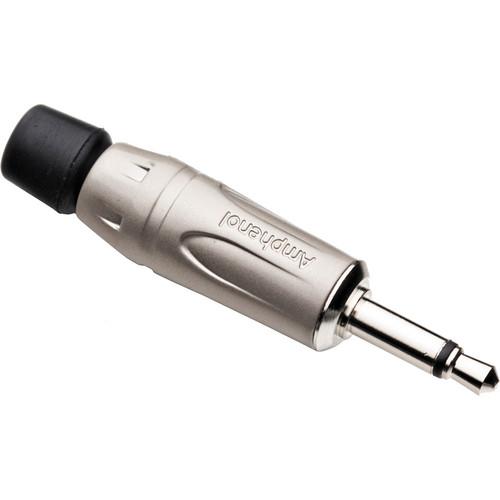

Product description The nickel K Series 3.5mm 2-Pole Mono Phone Plug Connector by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a diecast shell with precision-machined contacts. The connector is offered with a flexible grommet to help protect the cable. This K series connector is RoHS compliant. UPC: 884957035342 In the Box Amphenol K-Series 3.5 mm 2-Pole Mono Phone Plug Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol K-Series 3.5 mm 2-Pole Mono Phone Plug Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol KM2P Specs | | | Shell Material | Diecast Zinc Alloy EZDA No.3 | | Finish | Connector Shell Finish: Satin-nickel | | Insulator | PA66 | | Bushing | Santoprene | | Contacts | Brass | | Plating | Nickel | | | | Contacts | 2-pole | | Termination | Solder | | Wire Gauge | AWG 16 - 1.5 mm² | | Flammability Rating | Rating of Insulated Plastics: UL94V-0 | | Solderability | Complies with IEC 68-2-20 | | Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | | | | Maximum Current Capacity | >0.5 mA (depends on mating connector and cable) | | Contact Resistance | ≤ 20 mOhm (depends on mating connector and cable), typical | | Insulation Resistance | Initial: > 200 MOhm
After damp heat test: > 100 MOhm | | Voltage | Test voltage AC RMS: 250 VAC | | | | Protection Class | IP40 | | Operating Temperature | -4 to +149°F / -20 to 65°C | | | | Insertion / Withdrawal Force | < 20 N / > 3 N (depends on mating connector) | | Mechanical Operation | 1000 mating cycles | | Cable O.D. | 0.118 to 0.196" / 3 to 5 mm | | Weight | 0.3 oz / 8 g | | | | Package Weight | 0.025 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 0.1" |
