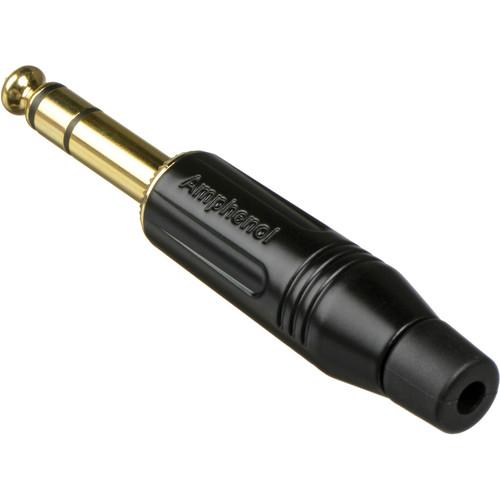

Product description The black M Series 1/4" TRS Straight Cable Connector with Gold Plated Contacts by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a diecast shell with precision machined contacts and offers improved solderability. The connector is offered with a flexible grommet to help protect the cable. This M series connector is RoHS compliant. - Number of Contacts: 3 Pole Tip Ring Sleeve (Stereo)
- Maximum Wire Gauge - Stranded Wire: 3 Pole (Stereo): AWG 18˜1mm
- Flammability rating of insulating plastics: UL 94 V-0
- Solderability, complies with: IEC 68-2-20
- Environmental complies with EU RoHS 2 directive 2011/65/EU
UPC: 884957025442 In the Box Amphenol M Series 1/4" TRS Straight Cable Connector with Gold Plated Contacts (Black) Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol M Series 1 4" TRS Straight Cable Connector with Gold Plated Contacts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol ACPS-GB-AU Specs | Electrical Characteristics | Current Carrying Capacity: 10 A (Depends on mating connector and cable)
Typical Contact Resistance: Depends on mating connector
Insulation Resistance (initial): > 2 G Ω
After Damp Heat Test: ≥1 G Ω
Dielectric Withstand Voltage: 2 Pole, 1.5 k V dc, 3 Pole: 1 k V dc | | Climatic Characteristics | Protection Class: IP 40
Operating Temperature: -13° to 167°F (-25° to 75°C) | | Mechanical Specifications | Insertion and Withdrawal Force: ≥10 N - ≤30 N
Weight - Thermoplastic Backshell: 0.061 lb (28 g)
Weight - Metal Backshell: 0.077 lb (35 g)
Typical Cable Retention Force: 50 to 100 lb (22 to 44 kg) Dependent on cable material and diameter
Cable O.D. - Standard Jaw: Straight 0.118 to 0.236" (3 to 6 mm)
Right Angle: 0.118 to 0.216" (3 to 5 mm)
Mechanical Operations: 1000 | | Materials | Connector Shell Material: Diecast Zinc Alloy EZDA No.3
Shell Finish: Matte Black
Insulators: UL94 V-0 PBT Resin or modified PPE resin - Black
Cable Bushing: Santoprene
Contacts / Plating for Plugs: Brass / Ni over Cu (Copper)
Contacts / Plating for Jacks: Brass / SN (Tin) over CU (Copper) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 0.1" |
