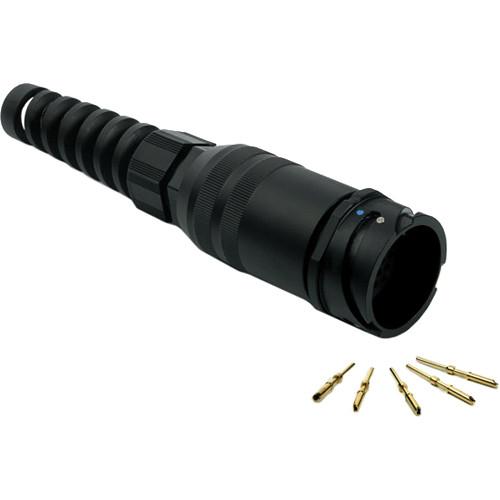

Product description The black MP-41 Series Inline Receptacle 37-Pin Male Connector with Dust Cap by Amphenol Audio Products is for soldering to studio-quality cables. This connector is engineered for critical multi-channel recording and broadcast applications such as in theater, TV, live stage events and more. It features an aluminum alloy connector, gold plated contacts and an audible mating feature to ensure a positive connection. The multipin connector is offered with cable glands to help protect the wire. The MP-41 series connector is RoHS compliant. A protective dustcap and lanyard are included. - Designed to withstand minor shocks and vibrations
- Termination: Solder / Crimp combination
- Wire Gauge - Stranded Wire: 16 AWG - 20 AWG
- Environmental: Complies with EU RoHS 2 directive 2011/65/EU
In the Box Amphenol MP-41 Series Inline Receptacle 37-Pin Male Connector with Dust Cap Lanyard Dustcap Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol MP-41 Series Inline Receptacle 37-Pin Male Connector with Dust Cap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol MP-4101-37P-C Specs | Electrical Characteristics | Operating Voltage at Sea level - DC: 250 V
Operating Voltage at Sea level - AC: 200 V
Test Voltage AC RMS: 1000 V
Current Carrying Capacity: 13 A
Typical Contact Resistance: 3.46 m Ω
Insulation Resistance: 5000 M Ω | | Climatic Characteristics | Protection Class: IP67 (when mated)
Operating Temperature: -67° to 257°F (-55° to 125°C)
Environmental: Complies with EU RoHS 2 directive 2011/65/EU | | Mechanical Specifications | Cable Retention: PG gland
Mechanical Operations: 2000 mating cycles | | Materials | Connector / Shell Finish: Aluminum alloy / black
Insert: Synthetic insert to MIL-R-3065
Male / Female Pin Contact: Brass
Male / Female plating: Gold plated | | Clamping Characteristics | PG Gland: 21
Cable Clamping Range: 0.51 to 0.70" (13 to 18 mm) | | Dimensions | Length x Diameter: 8.3 x 2.0" (210 x 50.9 mm) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.9 x 4.8 x 1.8" |
