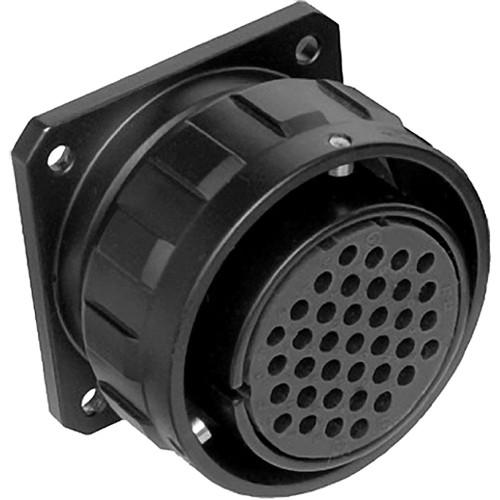

User Manual for Amphenol MP-41 Series Panel Plug 150-Pin Female Connector with Dust Cap Click to enlarge the picture
Contents of the user manual for the Amphenol MP-41 Series Panel Plug 150-Pin
- Product category: Audio Connectors Amphenol
- Brand: Amphenol
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphenol Audio Connectors
|
User manual for the Amphenol MP-41 Series Panel Plug 150-Pin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphenol product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphenol user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphenol product will considerably shorten its lifespan!
|
Product description The black MP-41 Series Panel Plug 150-Pin Female Connector with Dust Cap by Amphenol Audio Products is for soldering to studio-quality cables. This connector is engineered for critical multi-channel recording and broadcast applications such as in theater, TV, live stage events and more. It features an aluminum alloy connector, gold plated contacts and an audible mating feature to ensure a positive connection. The multipin connector is offered with cable glands to help protect the wire. The MP-41 series connector is RoHS compliant. A protective dustcap and lanyard are included. - Designed to withstand minor shocks and vibrations
- Wire Gauge - Stranded Wire: 18 AWG
- Environmental: Complies with EU RoHS 2 directive 2011/65/EU
In the Box Amphenol MP-41 Series Panel Plug 150-Pin Female Connector with Dust Cap Dustcap Lanyard Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol MP-41 Series Panel Plug 150-Pin Female Connector with Dust Cap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol MP-4164-150S-C Specs | Electrical Characteristics | Operating Voltage at Sea level - DC: 250 V
Operating Voltage at Sea level - AC: 200 V
Test Voltage AC RMS: 1000 V
Current Carrying Capacity: 7.5 A
Typical Contact Resistance: 11.25 m Ω
Insulation Resistance: 5000 M Ω | | Climatic Characteristics | Protection Class: IP 67 (when mated)
Operating Temperature: -67° to 257°F (-55° to 125°C)
Environmental: Complies with EU RoHS 2 directive 2011/65/EU | | Mechanical Specifications | Cable Retention: PG gland
Mechanical Operations: 2000 mating cycles | | Materials | Connector / Shell Finish: Aluminum alloy / black
Insert: Synthetic insert to MIL-R-3065
Male / Female Pin Contact: Brass
Male / Female Plating: Gold plated | | Clamping Characteristics | PG Gland: 36
Cable Clamping Range: 0.74 to 1.25" (19 to 32 mm) | | Dimensions | L x W x H: 2.7 x 2.7 x 1.5" (69.8 x 69.8 x 38.5 mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.7 x 5.5 x 2.1" |
