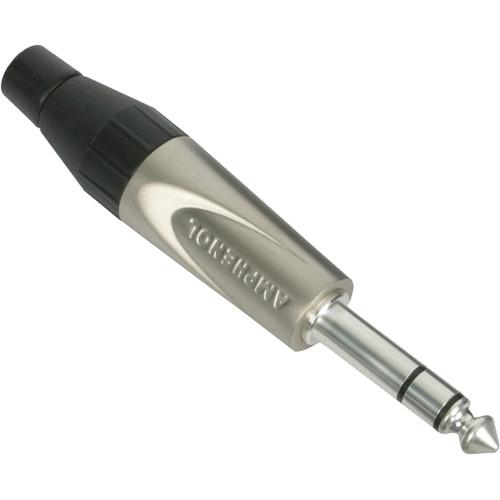

User Manual for Amphenol T-Series 1 4" Stereo Cable Connector Click to enlarge the picture
Contents of the user manual for the Amphenol T-Series 1 4" Stereo Cable
- Product category: Audio Connectors Amphenol
- Brand: Amphenol
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphenol Audio Connectors
|
User manual for the Amphenol T-Series 1 4" Stereo Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphenol product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphenol user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphenol product will considerably shorten its lifespan!
|
Product description The satin nickel T Series 1/4" Stereo Cable Connector by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a jaws cable clamp, diecast shell with precision machined contacts and offers improved solderability with a increased solder area. The connector is offered with a thermoplastic backshell. This T series connector is RoHS compliant. - Number of Contacts: 3 Pole Tip Ring Sleeve (Stereo)
- Maximum Wire Gauge - Stranded Wire: 3 Pole (Stereo): AWG 18˜1mm
- Flammability Rating of Insulating Plastics: UL 94 V-0
- Solderability: Complies with IEC 68-2-20
- Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
UPC: 884957033164 In the Box Amphenol T-Series 1/4" Stereo Cable Connector (Satin Nickel) Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphenol T-Series 1 4" Stereo Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphenol TS3P Specs | Electrical Characteristics | Current Carrying Capacity: 10 A (Depends on mating connector and cable)
Typical Contact Resistance: Depends on mating connector
Insulation Resistance (initial): > 2 G Ω
After Damp Heat Test: ≥1 G Ω
Dielectric Withstand Voltage: 2 Pole, 1.5 kVdc, 3 Pole: 1 k V dc | | Climatic Characteristics | Protection Class: IP 40
Operating Temperature: -13° to 167°F (-25° to 75°C) | | Mechanical Operation | Insertion and Withdrawal Force: ≥10 N - ≤30 N
Weight - Thermoplastic Backshell: 0.061 lb (28 g)
Weight - Metal Backshell: 0.077 lb (35 g)
Typical Cable Retention Force: 50 to 100 lb (22 to 44 kg) Dependent on cable material and diameter
Cable O.D. - Standard Jaw: Straight 0.118 to 0.236" (3 to 6 mm)
Right Angle: 0.118 to 0.216" (3 to 5 mm)
Mechanical Operations: 1000 | | Materials | Connector Shell Material: Diecast Zinc Alloy EZDA No.3 Shell Finish: Satin Nickel
Insulators: UL94 V-0 PBT Resin or modified PPE resin - Black
Boot / Backshell: UL94 V-0 PBT Resin or modified PPE resin - Black / Metal CuZn39Pb3
Cable Clamp: UL 94 V-0 PBT Modified PPO Resin - Black
Cable Bushing: Santoprene
Contacts / Plating for Plugs: Brass / Ni over 2 μm Ni | | | | Package Weight | 0.06 lb | | Box Dimensions (LxWxH) | 5.05 x 4.05 x 0.65" |
