User Manual for Amphibico Turtle Underwater Video Housing for Sony HDR-CX110 XR150 HD Camcorder Click to enlarge the picture
Contents of the user manual for the Amphibico Turtle Underwater Video Housing for
- Product category: Camcorders & Housings Amphibico
- Brand: Amphibico
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphibico Camcorders & Housings
|
User manual for the Amphibico Turtle Underwater Video Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphibico product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphibico user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphibico product will considerably shorten its lifespan!
|

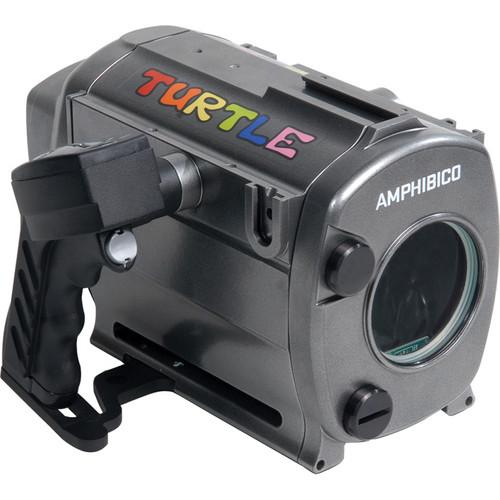

Product description The Turtle Underwater Video Housing for Sony HDR-CX110 / XR150 HD Camcorder (Grey) from Amphibico is a durable underwater case enabling you to shoot beneath the water's surface with your Sony HDR-CX110 or XR150 camcorder. It has a depth rating of 330' (100.6 m). The housing provides access to all key camcorder functions, including Record / Standby, Photo Mode, Telephoto Variable Speed Zoom, Wide Angle Variable Speed Zoom, Autofocus, Manual Focus, one-touch White Balance and Power On / Off. The easily-operated electronic right grip control is ergonomically-designed for comfort and functionality (left-handed grip available separately).
The Turtle is constructed of marine grade aluminum that's anodized for corrosion resistance, along with stainless steel hardware. It has a built-in flat glass port, which will accommodate an optional internal color correction filter to help restore hues that are otherwise absorbed by the water. The large 3.5" digital LCD viewfinder is a color display located at the rear of the housing with an angle of 10° for clearer, easier viewing of HD video and still images at arm's length.
Another useful feature on the Turtle housing is the electronic wet sensor moisture alarm. Should any water find its way past the o-ring seals, the alarm will be activated, signaling you to head to the surface. - Depth Rating
- Safe to use at depths up to 330' (100.6 m)
- Controls
- Electronic controls provide access to all key camcorder functions, including Record / Standby, Photo Mode, Telephoto Variable Speed Zoom, Wide Angle Variable Speed Zoom, Autofocus, Manual Focus, one-touch White Balance and Power On / Off. The easily-operated electronic right grip control is ergonomically-designed for comfort and functionality (left-handed grip available separately). A green LED light flashes when recording
- Construction
- Made from marine grade aluminum that's anodized for corrosion resistance, along with stainless steel hardware
- Lens Port
- The built-in flat glass
- Color Correction Filters
- The port will accommodate an optional internal color correction filter to help restore hues that are otherwise absorbed by the water
- Viewfinder
- Large 3.5" digital LCD viewfinder is a color display located at the rear of the housing with an angle of 10° for clearer, easier viewing of HD video and still images at arm's length
- Moisture Alarm
- Electronic wet sensor moisture alarm is activated when water leaks through O-ring seals. A red LED light flashes to alert you to the breach
- Optional Hydrophone
- Available for recording sound underwater to accompany your video
- Environmental Impact
- Apart from all of these benefits, in purchasing this housing, you will be making a positive impact on the marine ecosystem: A $50.00 donation in your name will be sent to SOLO (Save Our Leatherback Operation) to aid Dr. Larry McKenna, founder of this non-profit organization, and his team in their tireless efforts to protect the majestic Leatherback turtle against endangerment and possible extinction
In the Box Amphibico Turtle Underwater Video Housing for Sony HDR-CX110 / XR150 HD Camcorder (Gray) Camera Saddle O-Ring Kit Instruction Manual 2-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphibico Turtle Underwater Video Housing for Sony HDR-CX110 XR150 HD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphibico Turtle Specs | Depth Rating | 330' (100.6 m) | | Control Type | Electronic | | Controls | Record / Standby, Photo Mode, Telephoto Variable Speed Zoom, Wide Angle Variable Speed Zoom, Autofocus, Manual Focus, one-touch White Balance and Power On / Off | | Construction | Marine grade anodized aluminum
Stainless steel | | Lens Port | Built-in flat glass port | | Color Correction Filter | Accepts optional internal filter | | Buoyancy | Negative | | Viewfinder | Rear 3.5" (8.9 cm) digital LCD angled 10°:
Resolution: 320 x 240
Dot Pitch: 0.009 x 0.009" (0.219 x 0.219 mm)
Visual range: 2.8 x 2.1" (70.08 x 52.56 mm)
Viewing angle: 40-60°
Signal System: Parallel RGB system
Brightness: 300 cd/m2
Power consumption: 0.5 W | | Moisture Alarm | Yes - flashing red LED light | | Connectivity | 1x auxiliary port | | Dimensions (W x H x D) | 8.0-10.5 x 6.5 x 10.6" (20.3-26.7 x 16.5 x 26.9 cm)
Width is 8.0" (20.3 cm) with standard one hand grip, 10.5" (26.7 cm) with optional second hand grip added | | Weight | On land: 7.8 lb (3.5 kg)
Underwater: Approx. 0.5 lb (226.8 g) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
