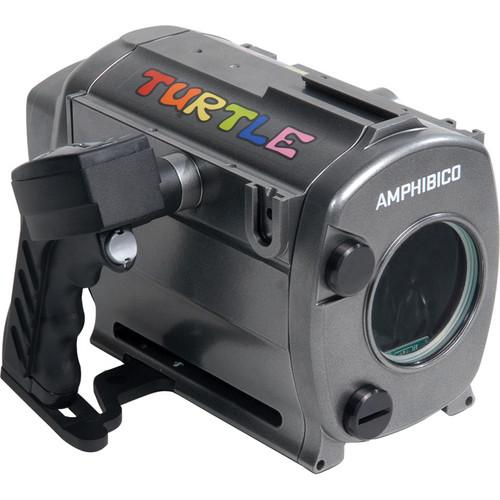

User Manual for Amphibico Turtle Underwater Video Housing for Sony HDR-XR350, CX300 or CX350 Camcorder Click to enlarge the picture
Contents of the user manual for the Amphibico Turtle Underwater Video Housing for
- Product category: Camcorders & Housings Amphibico
- Brand: Amphibico
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Amphibico Camcorders & Housings
|
User manual for the Amphibico Turtle Underwater Video Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Amphibico product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Amphibico user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Amphibico product will considerably shorten its lifespan!
|
Product description This gray Turtle Underwater Video Housing from Amphibico is a durable underwater case enabling you to shoot beneath the water's surface with your Sony HDR-XR350, CX300, or CX350 camcorder. It has a depth rating of 330' and features an electronic moisture alarm to alert you if its watertight O-ring seal has been compromised. The housing is constructed from marine-grade, anodized aluminum with stainless steel hardware.
Your camcorder's lens is accommodated by a fixed flat glass lens port. Access to all key camcorder functions, including record/standby, photo capture, variable-speed zoom, manual focus, auto focus, mode, and white balance, is made possible by electronic controls on the ergonomically designed right-handed grip. A left-handed grip is available separately.
The Turtle accepts optional internal color correction filters to help restore hues that are otherwise absorbed by the water. The large 3.5" digital LCD viewfinder is a color display located at the rear of the housing with an angle of 10° for clearer, easier viewing of HD video and still images at arm's length. - Depth Rating
- Can be used at a maximum depth of 330'
- Controls
- Access to all key camcorder functions, including record/standby, photo capture, variable-speed zoom, manual focus, auto focus (including AF lock), mode, and white balance, is made possible by electronic controls on the ergonomically designed right-handed grip. A left-handed grip is available separately. A green LED light flashes when recording is in progress
- Construction
- Made from durable, marine-grade aluminum, which has been anodized with a hard coat of polyurethane paint. Features marine-grade brass and stainless steel hardware
- Buoyancy
- Negative in salt water
- Lens Port
- Fixed flat glass lens port
- Lighting Connection
- A shoe-mount bracket on each side of housing accepts optional #17556 TLC 1" ball joint for lighting arm attachment
- Moisture Detector
- Electronic moisture alarm with flashing red LED alerts you if watertight O-ring seal has been compromised
- Optional Color Correction Filter
- The Internal Flip Filter helps restore colors that are otherwise absorbed underwater
- Optional Hydrophone
- Available for recording sound underwater to accompany your video
- LCD Viewfinder
- Large 3.5" digital LCD viewfinder is a rear color monitor tilted at a 10° angle for clearer, easier viewing at arm's length
- Environmental Impact
- In purchasing this housing, you will be making a positive impact on the marine ecosystem: A $50.00 donation will be sent to SOLO (Save Our Leatherback Operation) to help Dr. Larry McKenna, founder of this non-profit organization, and his team in their efforts to protect the Leatherback turtle against endangerment and extinction
In the Box Amphibico Turtle Underwater Video Housing for Sony HDR-XR350, CX300 or CX350 Camcorder (Gray) O-Ring Kit Camera Saddle Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Amphibico Turtle Underwater Video Housing for Sony HDR-XR350, CX300 or CX350 Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmphibico VHTURTLGYXR350 Specs | Depth Rating | 330' (100.6 m) | | Control Type | Electronic | | Controls | Access to all key camcorder functions, including record/standby, photo capture, variable-speed zoom, manual focus, auto focus, mode and white balance | | Construction | Marine-grade anodized aluminum with stainless steel hardware | | Lens Port | Fixed flat glass lens port | | Color Correction Filter | Optional Internal Flip Filter | | Buoyancy | Negative in salt water | | Viewfinder | 3.5" (8.9 cm), 320x240 RGB color LCD viewfinder
WxH: 2.75 x 2.1" (7.0 x 5.3 cm)
Dot Pitch: 0.2 x 0.2 mm
Tilt angle: 10° fixed
Viewing angle: 40-60°
Signal system: parallel RGB
Brightness: 300 cd/sq m
Power consumption: 0.5 W | | Lighting | 2 shoe-mount brackets accept optional #17556 TLC 1" ball joints for lighting arm attachment | | Moisture Alarm | Electronic moisture alarm with flashing red LED | | Connectivity | 0.4" (10.2 mm) threaded connector for optional hydrophone to record sound
1 0.5" (12.7 mm) auxiliary port | | Dimensions | 10.6 x 8.0 x 6.5" (27 x 20.3 x 16.5 cm) with single included hand grip
10.6 x 10.5 x 6.5" (27 x 26.7 x 16.5 cm) with optional second hand grip | | Weight | Approx 11 lb (5.0 kg) fully loaded with camcorder and battery
Approx. 7.8 lb (3.5 kg) without camcorder
Less than 0.6 lb (250 g) in salt water |
