AMPLIFI AFi-HD AmpliFi High Density Router

Search your instruction manual in PDF to download

User Manual for AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points

Click to enlarge the picture
AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points Contents of the user manual for the AMPLIFI AFi-HD AmpliFi High Density Router
  • Product category: Whole Home Smart Wi-Fi AMPLIFI
  • Brand: AMPLIFI
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AMPLIFI Whole Home Smart Wi-Fi

AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points
User manual for the AMPLIFI AFi-HD AmpliFi High Density Router contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AMPLIFI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AMPLIFI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AMPLIFI product will considerably shorten its lifespan!



Product description

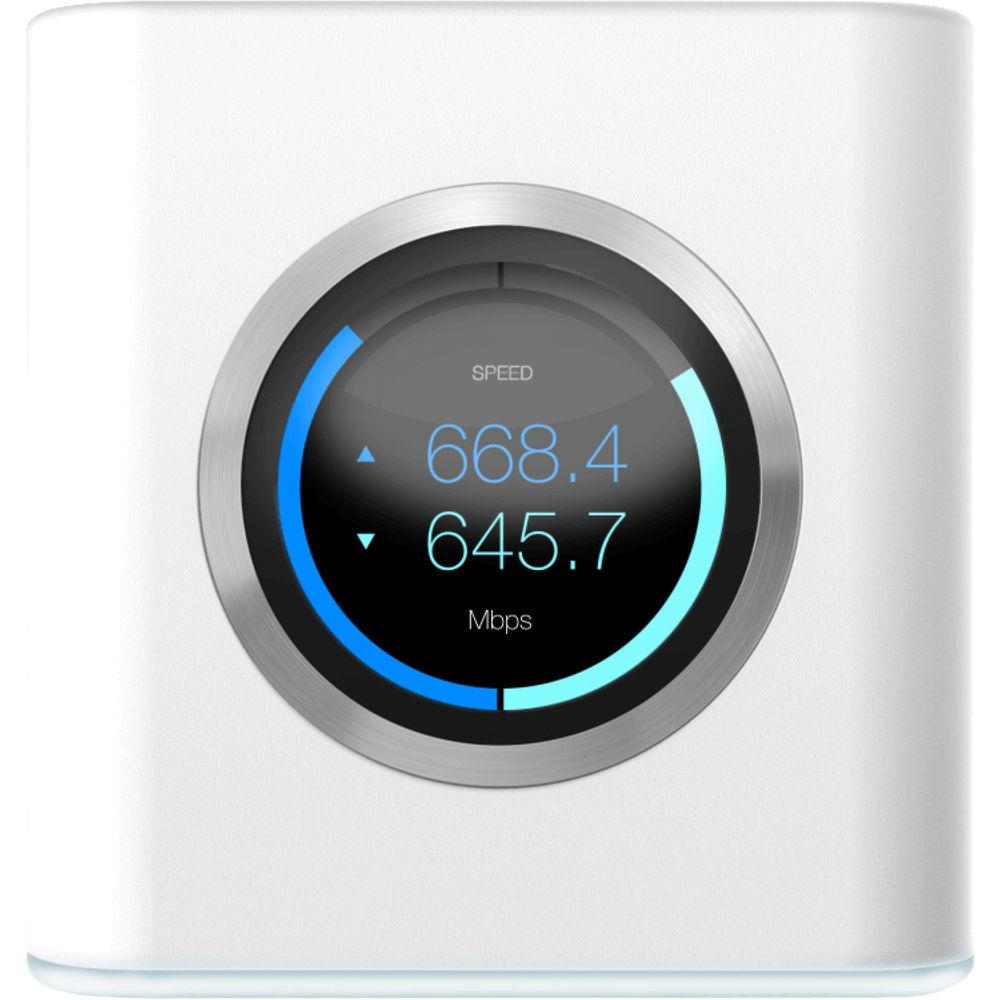

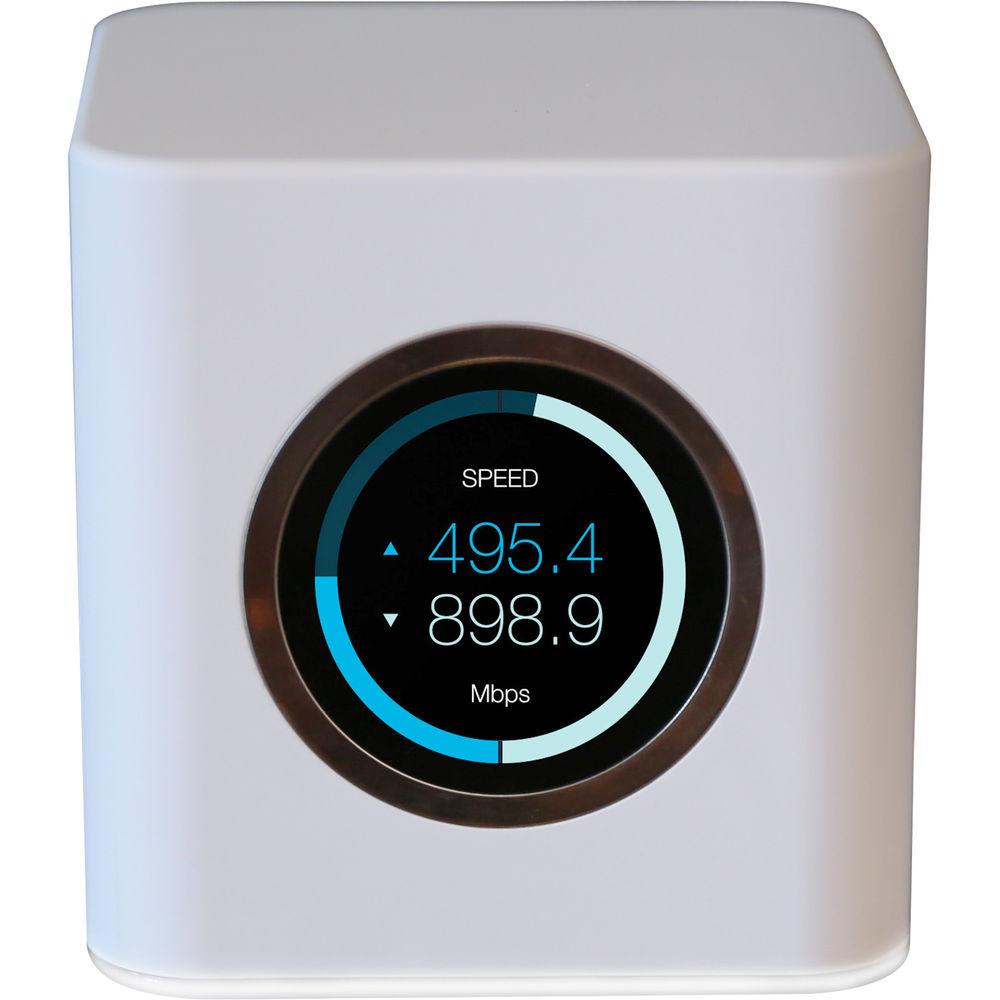

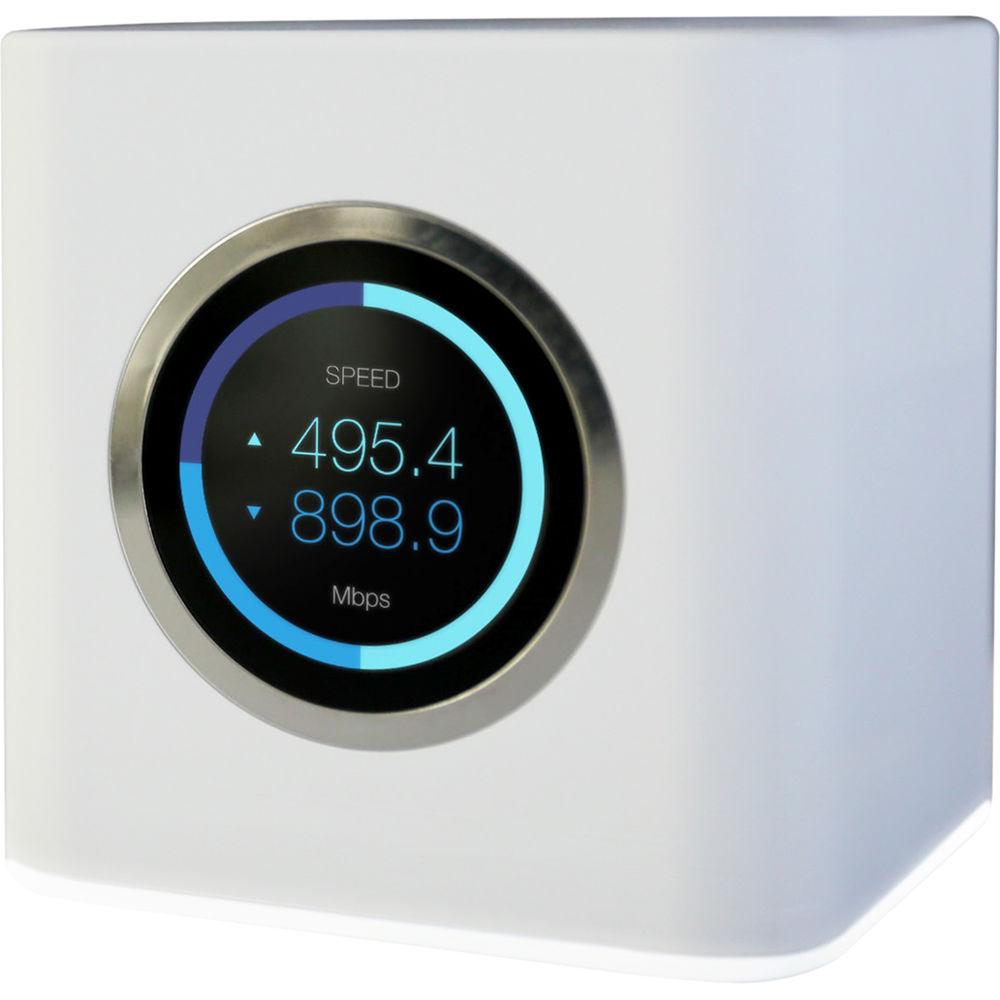

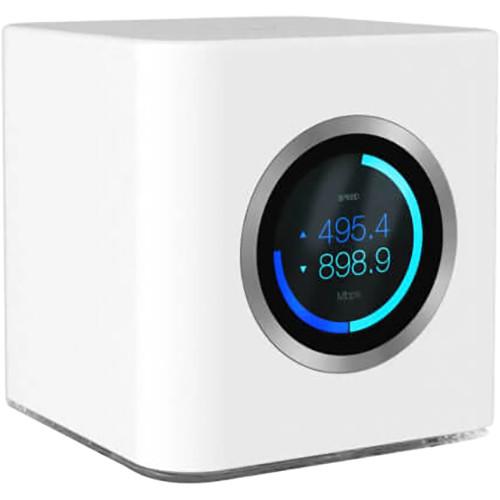

AmpliFi Wi-Fi Systems Help Eliminate Dead Spots Read More Transform your Wi-Fi with the AFi-HD AmpliFi High Density Router with 2 Mesh Points from Uniquiti Networks. This aesthetically pleasing router can be the centerpiece of an end table as it features a white plastic housing complete with a 1.6" display depicting various aspects of the network. Included with this router are two extender antennas designed to assist in extending your wireless network to areas of your home or office that may be out of reach of the router. Each antenna features dedicated signal LEDs to show signal strength along with a magnetic connector from which the top portion of the antenna can be adjusted for optimal signal reception.

The included AmpliFi router comes compatible with 802.11a/b/g/n/ac Wi-Fi network standards and operates on the 2.4 GHz band supporting data speeds of up to 450 Mbps and the 5 GHz band supporting data speeds up to 1300 Mbps. Additionally users benefit from up to 26 dBm transmit power along with a dual-band tri-polarity antenna providing a strong, reliable signal. Along with enhanced wireless connectivity, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports located on the back of the router.

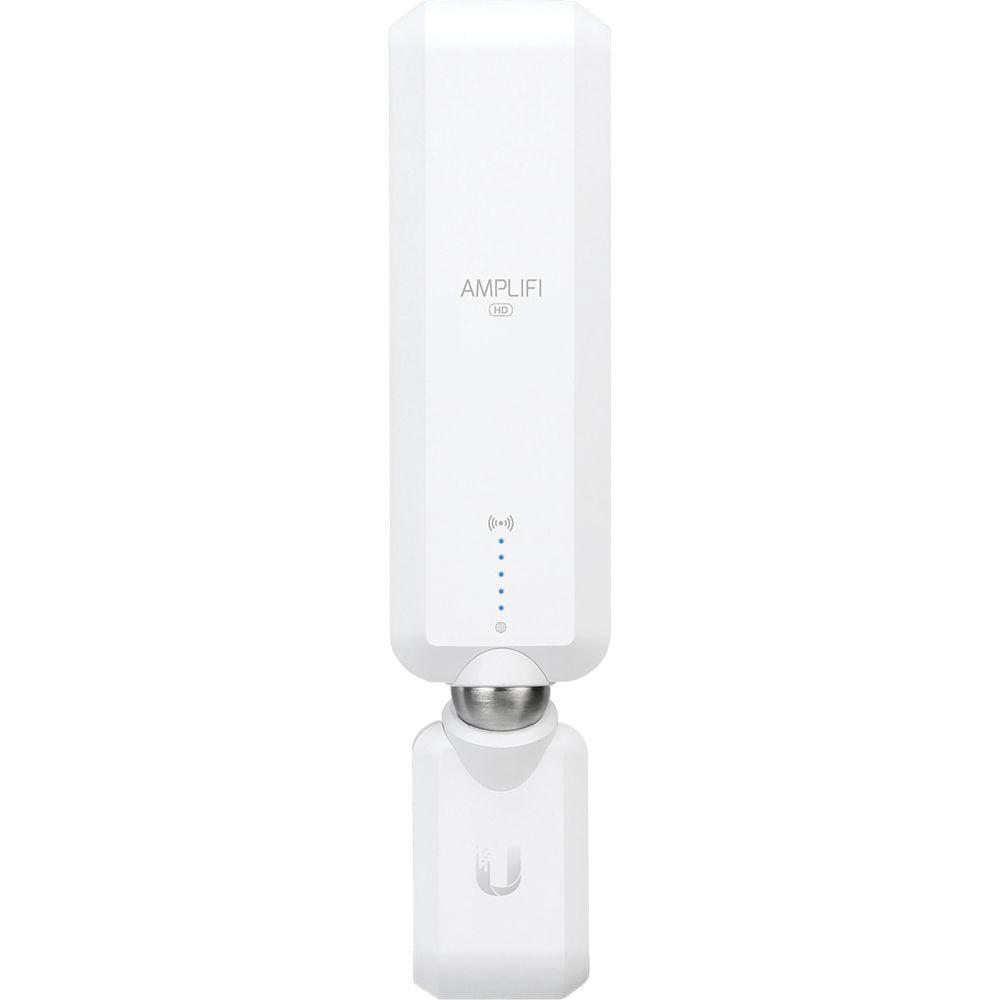

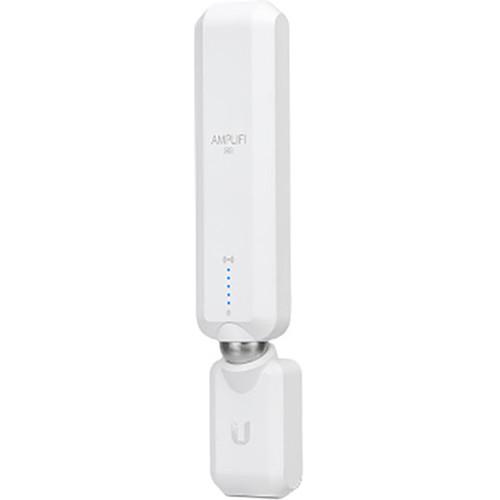

Included with the base station router are two high density wireless network extenders. These extenders operate on the 2.4 GHz band supporting data rates of up to 450 Mbps and the 5 GHz band supporting data rates of up to 1300 Mbps, and they also come compatible with 802.11a/b/g/n/ac Wi-Fi standards. In addition to enhanced Wi-Fi data rates, each extender supports 3x3 MIMO technology along with a maximum transmit power of up to 26 dBm.
    Intuitive Wi-Fi System

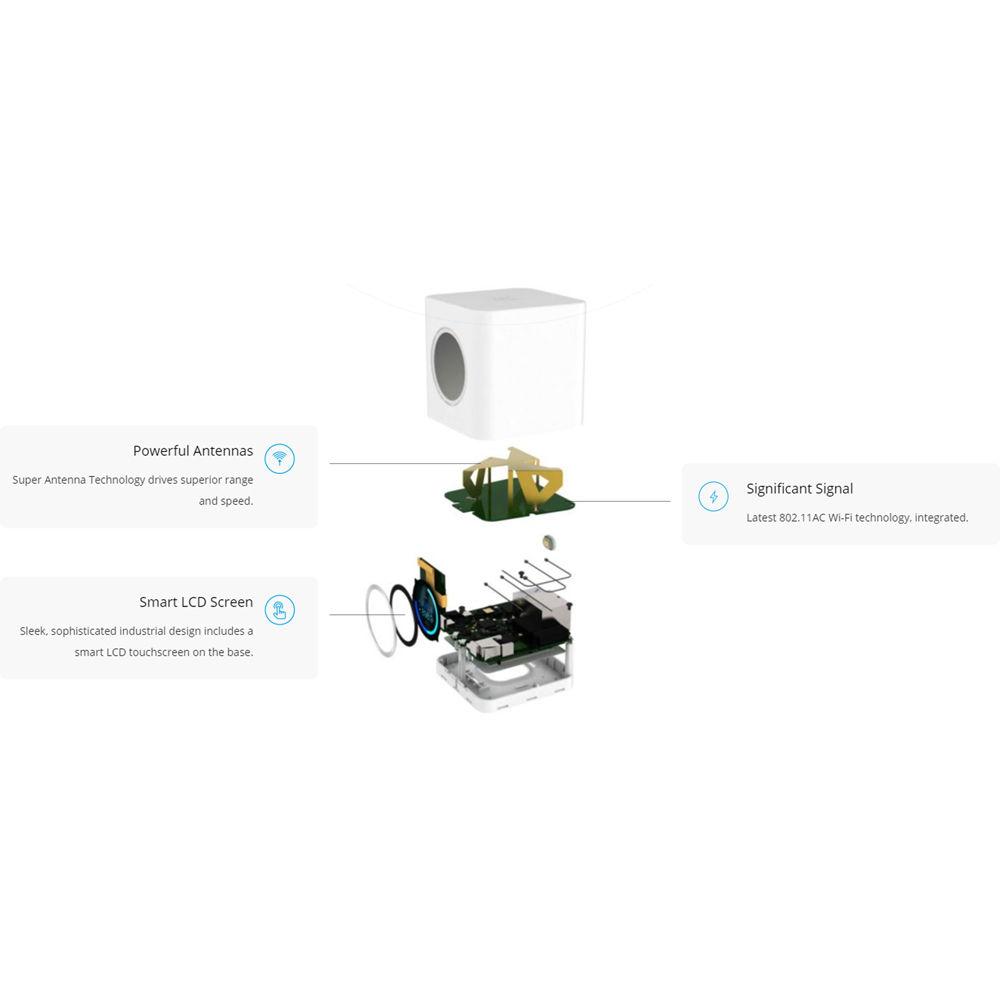

  • AmpliFi is more than a common home router: it's the ultimate Wi-Fi system. With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring ubiquitous Wi-Fi coverage to any home.
    Perfected User Experience

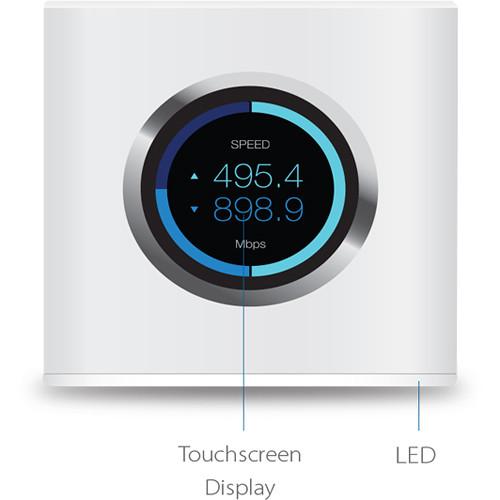

  • One intuitive app allows instant setup, powerful reporting metrics, and guest access. Out of the box, the AmpliFi router and extenders are pre-paired to work seamlessly as a Wi-Fi system. The smart touchscreen display combined with the Bluetooth capabilities of the router provide an instant setup experience using any Android or iOS smartphone.
    AmpliFi High Density

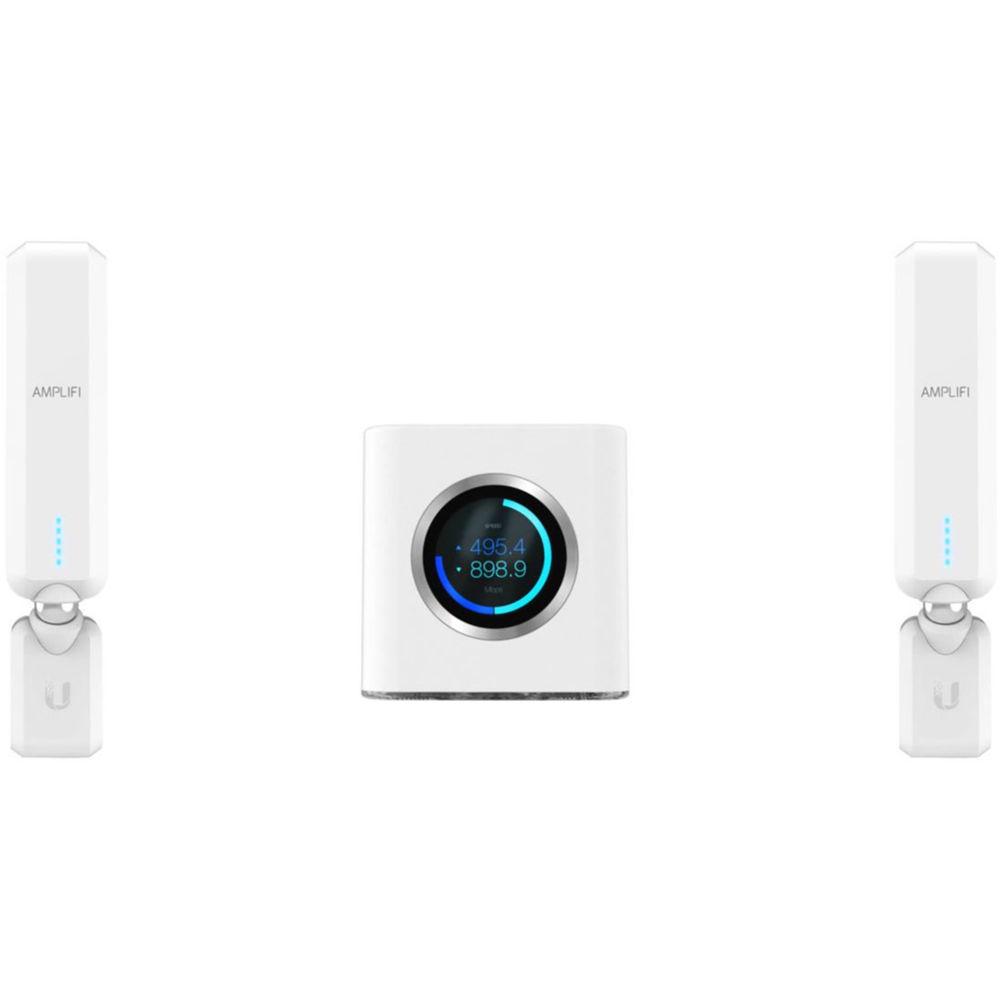

  • The AmpliFi HD (High Density) Router and Extender Kit includes a router base station and two wireless HD extenders for ultimate Wi -Fi performance and coverage throughout your home. The HD Kit provides enhanced wireless performance in an innovative design. The router features an intuitive touchscreen display and the extenders feature a unique adjustable Super Antenna.
UPC: 810354025556 In the Box AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points
  • Router Base Station
  • 2 x Wireless HD Extenders
  • Limited 1-Year Manufacturer Warranty
  • What is Mesh? Lawrence Neves 09/27/2016 Table of Contents




    Upload User Manual

    Have you got an user manual for the AMPLIFI AFi-HD AmpliFi High Density Router with 2 Mesh Points in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AMPLIFI AFI-HD Specs

    Enclosure Characteristics Plastic (PC)
    Management Interface Ethernet or Wi-Fi
    Networking Interface 1 x WAN
    4 x LAN
    Wi-Fi / Gigabit Ethernet
    Power Consumption 11 W (max.)
    Power Method 9 V USB
    Power Supply 9 V, 1.7 A USB adapter
    Voltage 9 V ± 10%
    ESD/EMP Protection ± 24 kV air/contact
    Buttons 1 x Reset to defaults
    Antennas 3 x Dual-band antennas, tri-polarity
    LEDs White LED
    Display 1.6" / 40.6 mm diagonal
    240 x 240, 212 ppi
    G+F touch
    Full color
    Wi-Fi Standards 802.11a/b/g/n/ac
    MIMO 3x3
    Data Rates 2.4 GHz: 450 Mbps
    5 GHz: 1300 Mbps
    Power Save Supported
    Wireless Security WPA2-PSK AES/TKIP
    Temperature & Humidity Operating Temperature: 14 to 131°F / -10 to 55°C
    Operating Humidity: 5 to 95% non-condensing
    Certifications FCC / CE / IC
    Suggested Max. TX Power 26 dBm
    Supported Data Rates (Mbps) 802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b: 1, 2, 5.5, 11 Mbps
    802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    Dimensions 3.91 x 3.85 x 3.92" / 99.5 x 97.8 x 99.6 mm
    Weight 14.46 oz / 410 g
    Enclosure Characteristics White color PC materials with soft touch paint
    Management Interface Wi-Fi
    Networking Interface Wi-Fi, BLE 4.0
    Power Consumption 7 W (max.)
    Power Method AC input
    Power Supply 9 V, 1.5 A
    ESD/EMP Protection ±24 kV air/contact
    Buttons Reset
    Antennas 1 x Dual-band antenna
    LEDs 5 Blue LEDs (link/signal strength 1-4)
    Power Save Supported
    Wireless Security WPA2-PSK AES/TKIP
    Temperature & Humidity Operating Temperature: 14 to 131°F / -10 to 55°C
    Operating Humidity: 5 to 95% non-condensing
    Certifications FCC / CE / IC
    Suggested Max. TX Power 26 dBm
    MIMO 3x3
    Data Rates 2.4 GHz: 450 Mbps
    5 GHz: 1300 Mbps
    Wi-Fi Standards 802.11a/b/g/n/ac
    Supported Data Rates 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
    802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    Dimensions Base Dimensions: 1.65 x 3.02 x 1.04" / 42.0 x 76.7 x 26.5 mm
    Body Dimensions: 1.81 x 7.05 x 1.06" / 46 x 179 x 27 mm
    Weight Base Weight: 3.52 oz / 100 g
    Body Weight: 3.70 oz / 105 g
    Package Weight 6.6 lb
    Box Dimensions (LxWxH) 11.8 x 11.5 x 5.4"
