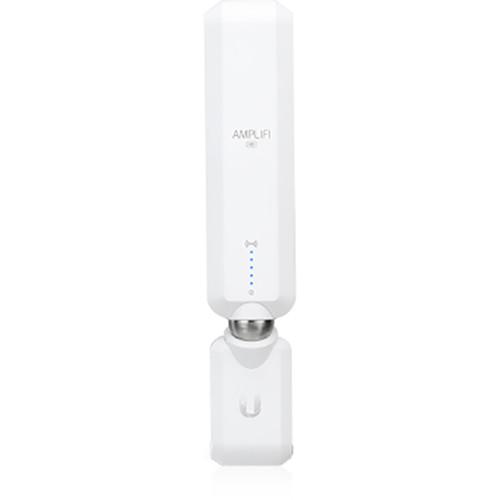

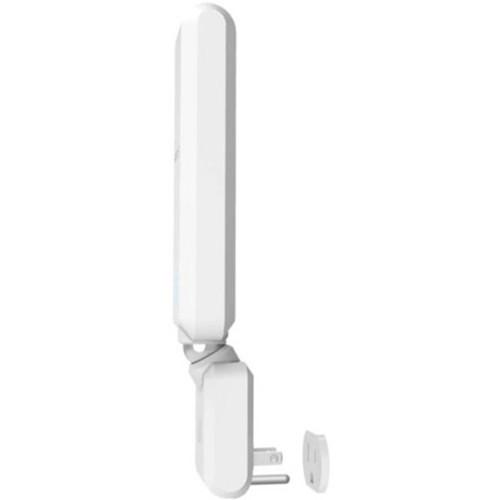

User Manual for AMPLIFI AFI-P-HD AmpliFi High Density Home Mesh Point Click to enlarge the picture
Contents of the user manual for the AMPLIFI AFI-P-HD AmpliFi High Density Home
- Product category: Whole Home Smart Wi-Fi AMPLIFI
- Brand: AMPLIFI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMPLIFI Whole Home Smart Wi-Fi
 |
User manual for the AMPLIFI AFI-P-HD AmpliFi High Density Home contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMPLIFI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMPLIFI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMPLIFI product will considerably shorten its lifespan!
|

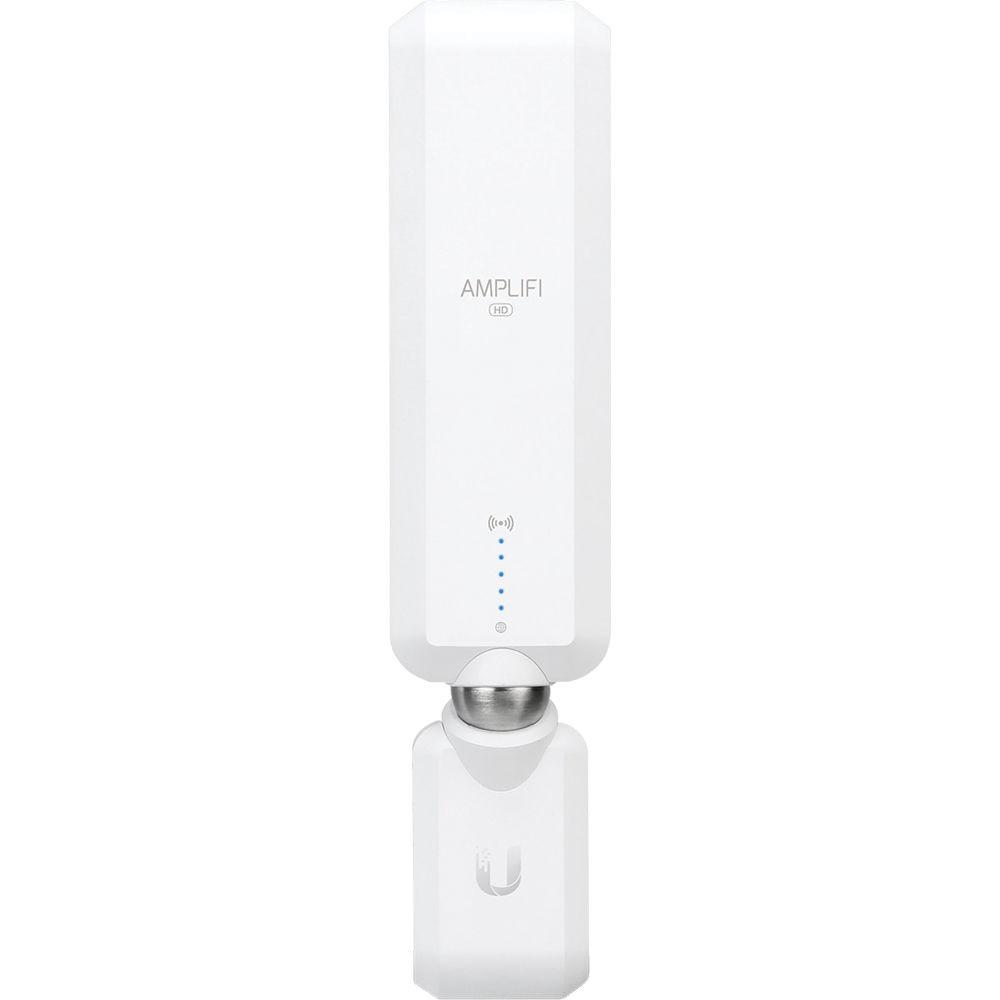

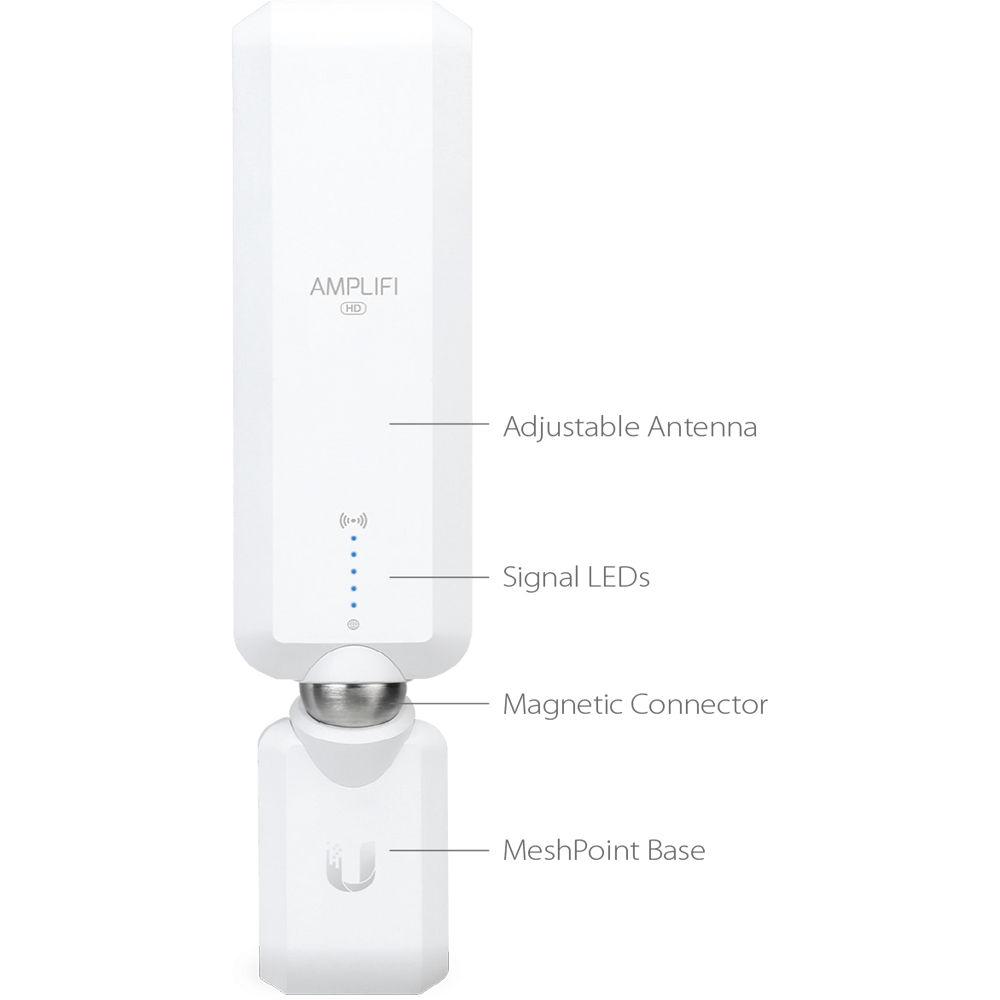

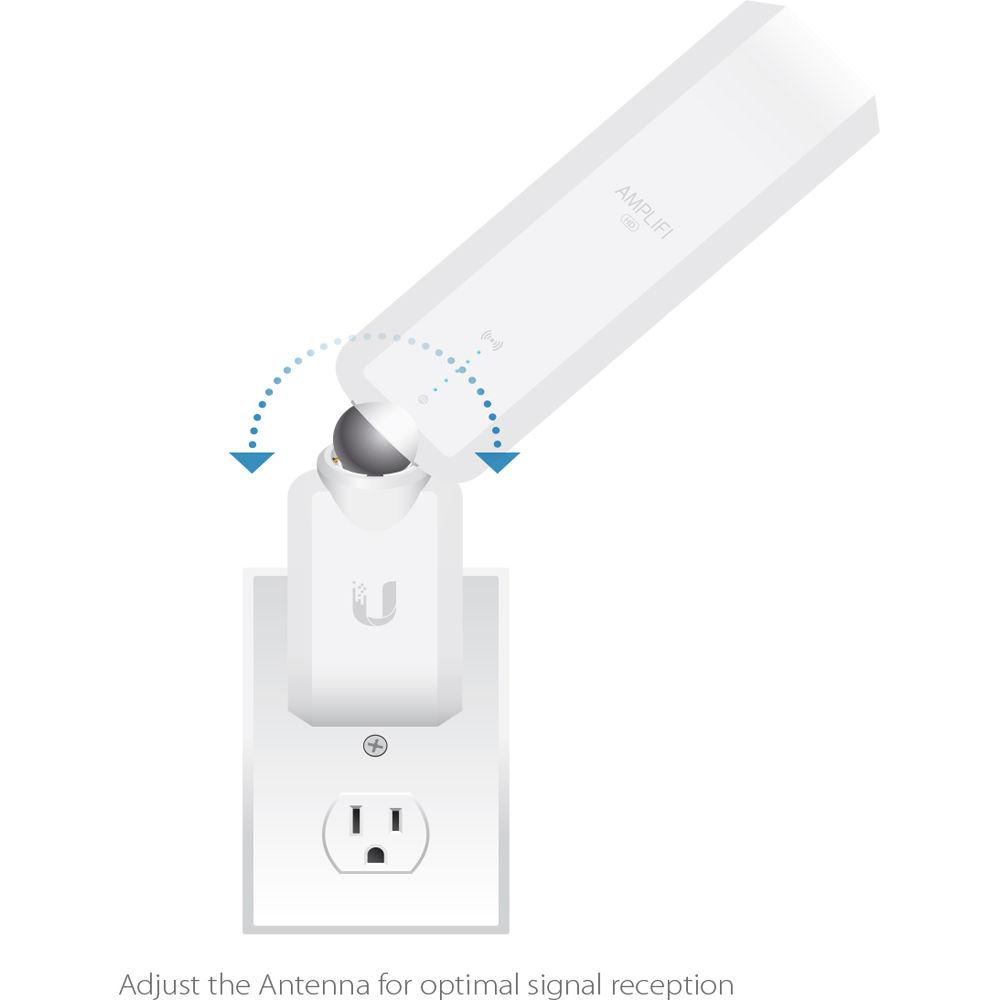

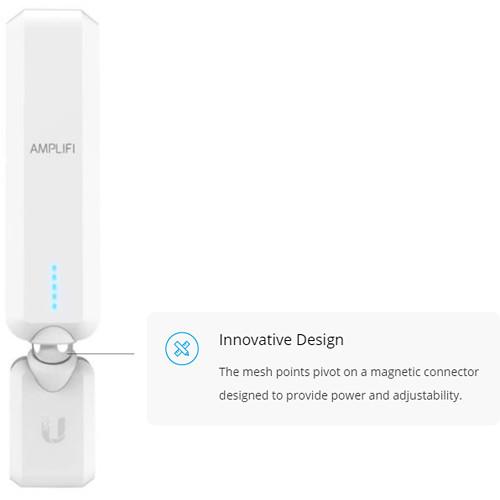

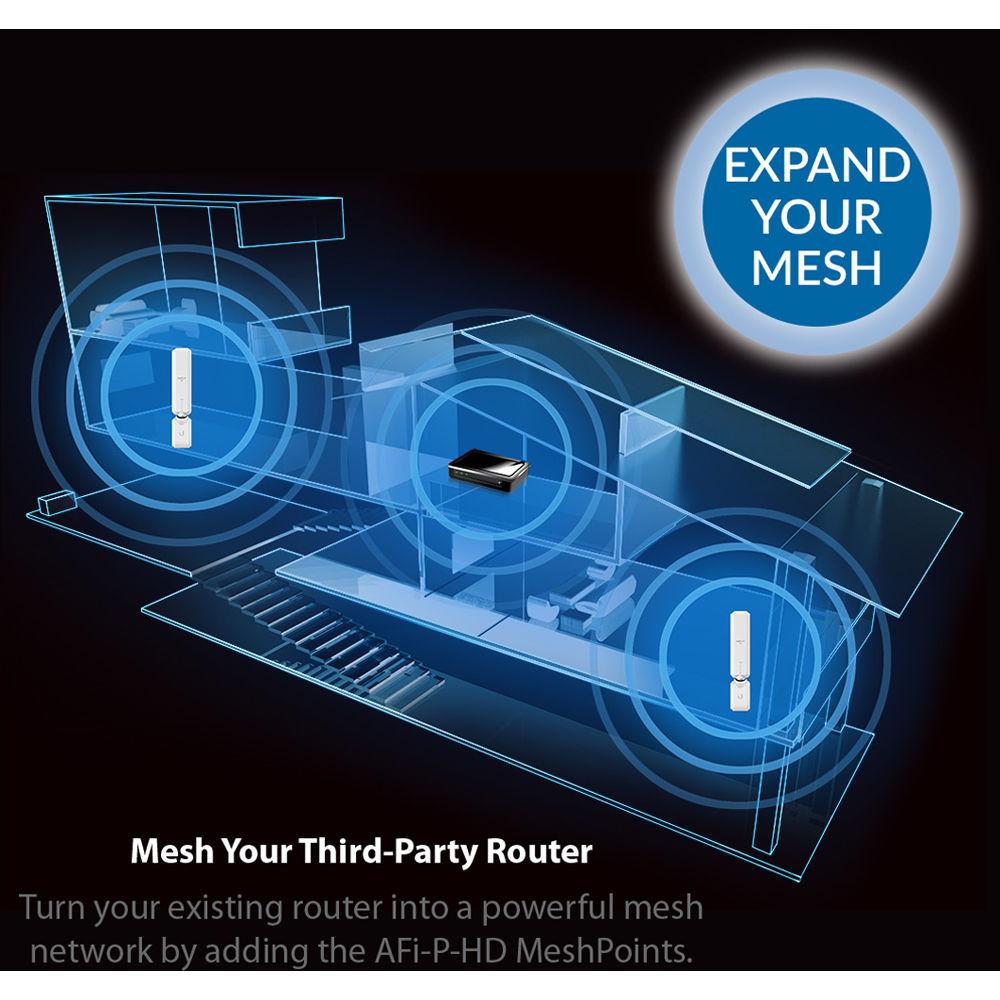

Product description What is Mesh? Read More Extend the reach of your AmpliFi mesh network with the AFI-P-HD AmpliFi High Density Home Mesh Point from Ubiquiti Networks. This antenna features dedicated signal LEDs that indicate signal strength in relation to the base unit and a magnetic connector from which the top portion of the antenna can be adjusted for optimal signal reception. This AmpliFi extender operates on the 2.4 GHz band supporting data rates of up to 450 Mbps and the 5 GHz band supporting data rates of up to 1300 Mbps, and comes compatible with 802.11a/b/g/n/ac Wi-Fi standards. In addition to enhanced Wi-Fi data rates, the AFI-P-HD supports 3x3 MIMO technology along with a maximum transmit power of up to 26 dBm. - Intuitive Wi-Fi System
- AmpliFi is more than a common home router: it's the ultimate Wi-Fi system. With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring ubiquitous Wi-Fi coverage to any home.
- Perfected User Experience
- One intuitive app allows instant setup, powerful reporting metrics, and guest access. Out of the box, the AmpliFi router and extenders are pre-paired to work seamlessly as a Wi-Fi system. The smart touchscreen display combined with the Bluetooth capabilities of the router provide an instant setup experience using any Android or iOS smartphone.
- AmpliFi High Density
- The AmpliFi HD (High Density) Router and Extender Kit includes a router base station and two wireless HD extenders for ultimate Wi -Fi performance and coverage throughout your home. The HD Kit provides enhanced wireless performance in an innovative design. The router features an intuitive touchscreen display and the extenders feature a unique adjustable Super Antenna.

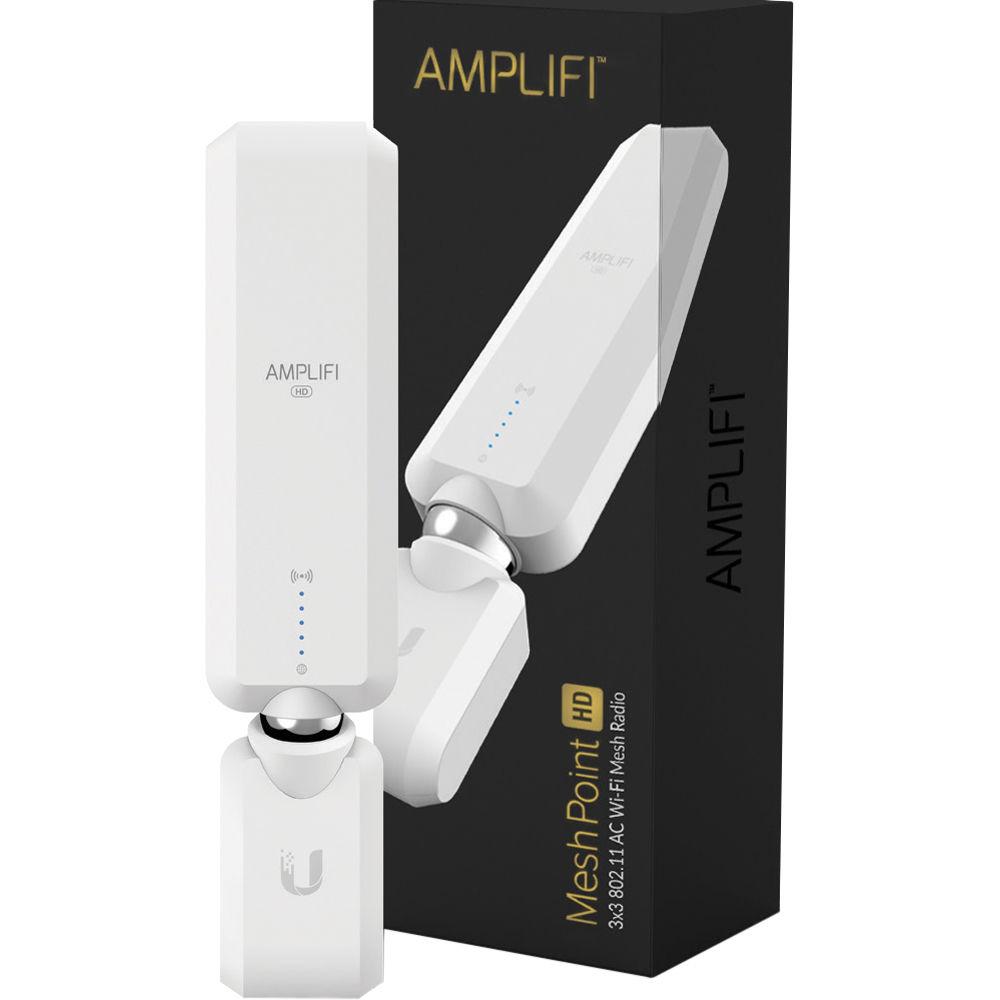

UPC: 810354023859 In the Box AMPLIFI AFI-P-HD AmpliFi High Density Home Mesh Point AC Adapter Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMPLIFI AFI-P-HD AmpliFi High Density Home Mesh Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMPLIFI AFI-P-HD Specs | | | Enclosure Characteristics | White color PC materials with soft touch paint | | Management Interface | Wi-Fi | | Networking Interface | Wi-Fi, BLE 4.0 | | Power Consumption | 11 W (max.) | | Power Method | AC input | | Power Supply | 9 V, 1.5 A | | ESD/EMP Protection | ±24 kV air/contact | | Buttons | Reset | | Antennas | 1 x Dual-band antenna | | LEDs | 5 Blue LEDs (link/signal strength 1-4) | | Power Save | Supported | | Wireless Security | WPA2-PSK AES/TKIP | | Temperature & Humidity | Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95% non-condensing | | Certifications | FCC / CE / IC | | Suggested Max. TX Power | 26 dBm | | MIMO | 3x3 | | Data Rates | 2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps | | Wi-Fi Standards | 802.11a/b/g/n/ac | | Supported Data Rates | 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps | | Dimensions | Base Dimensions: 1.65 x 3.02 x 1.04" / 42.0 x 76.7 x 26.5 mm
Body Dimensions: 1.81 x 7.05 x 1.06" / 46 x 179 x 27 mm | | Weight | Base Weight: 3.52 oz / 100 g
Body Weight: 3.70 oz / 105 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.3 x 3.9 x 3.8" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
