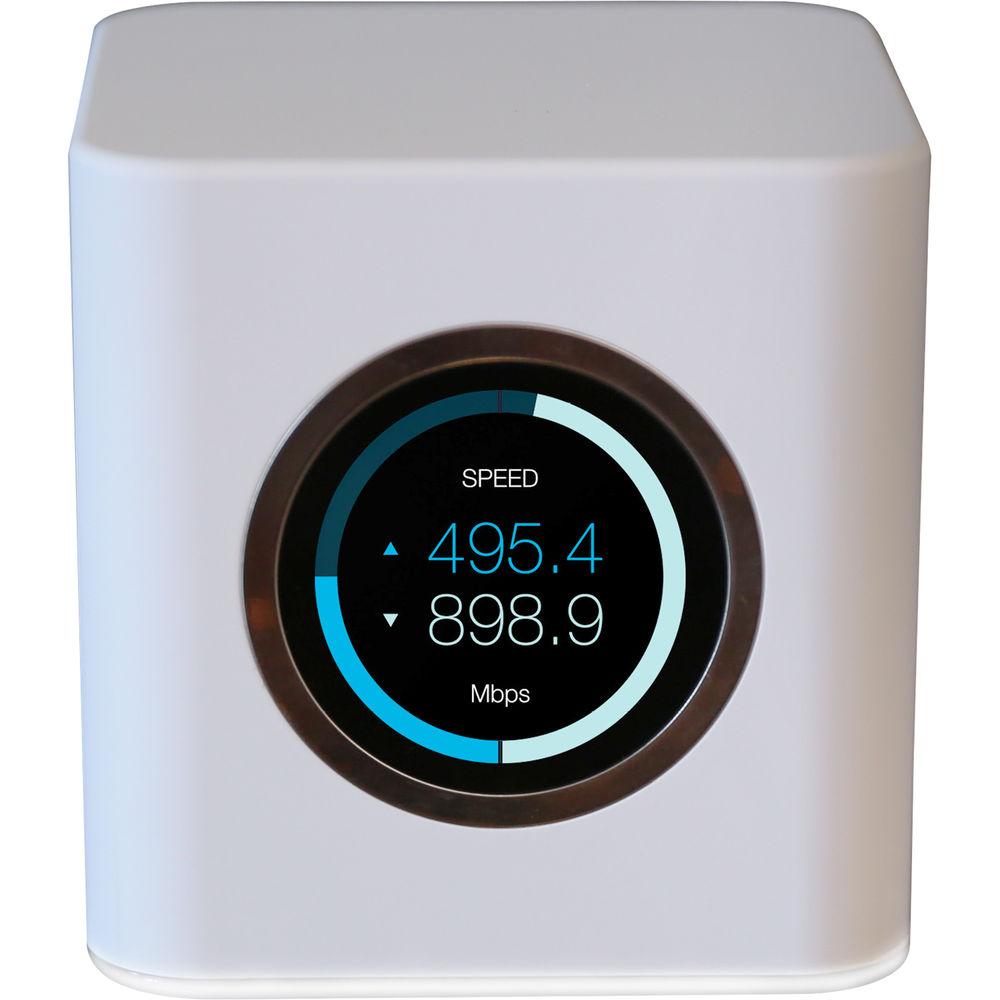

User Manual for AMPLIFI AFi-R AmpliFi High Density Home Wi-Fi Router Click to enlarge the picture
Contents of the user manual for the AMPLIFI AFi-R AmpliFi High Density Home
- Product category: Whole Home Smart Wi-Fi AMPLIFI
- Brand: AMPLIFI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMPLIFI Whole Home Smart Wi-Fi
 |
User manual for the AMPLIFI AFi-R AmpliFi High Density Home contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMPLIFI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMPLIFI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMPLIFI product will considerably shorten its lifespan!
|

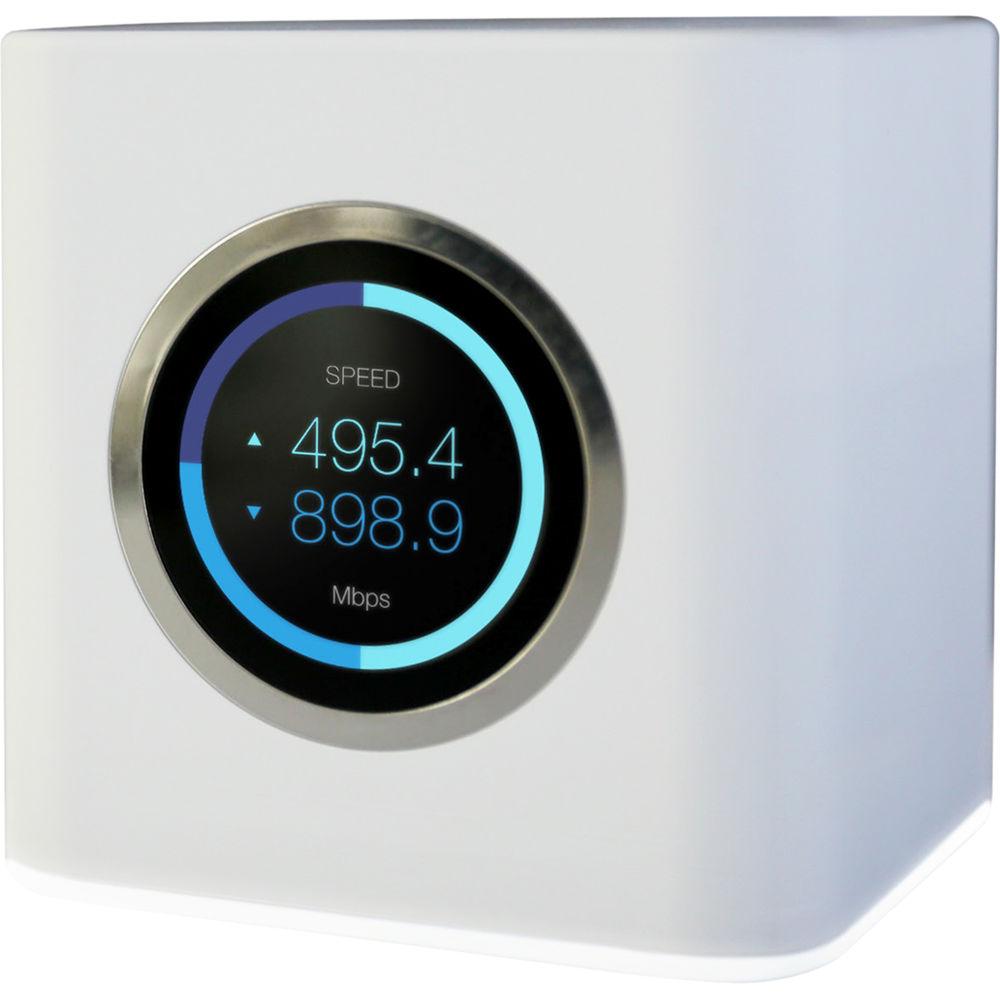

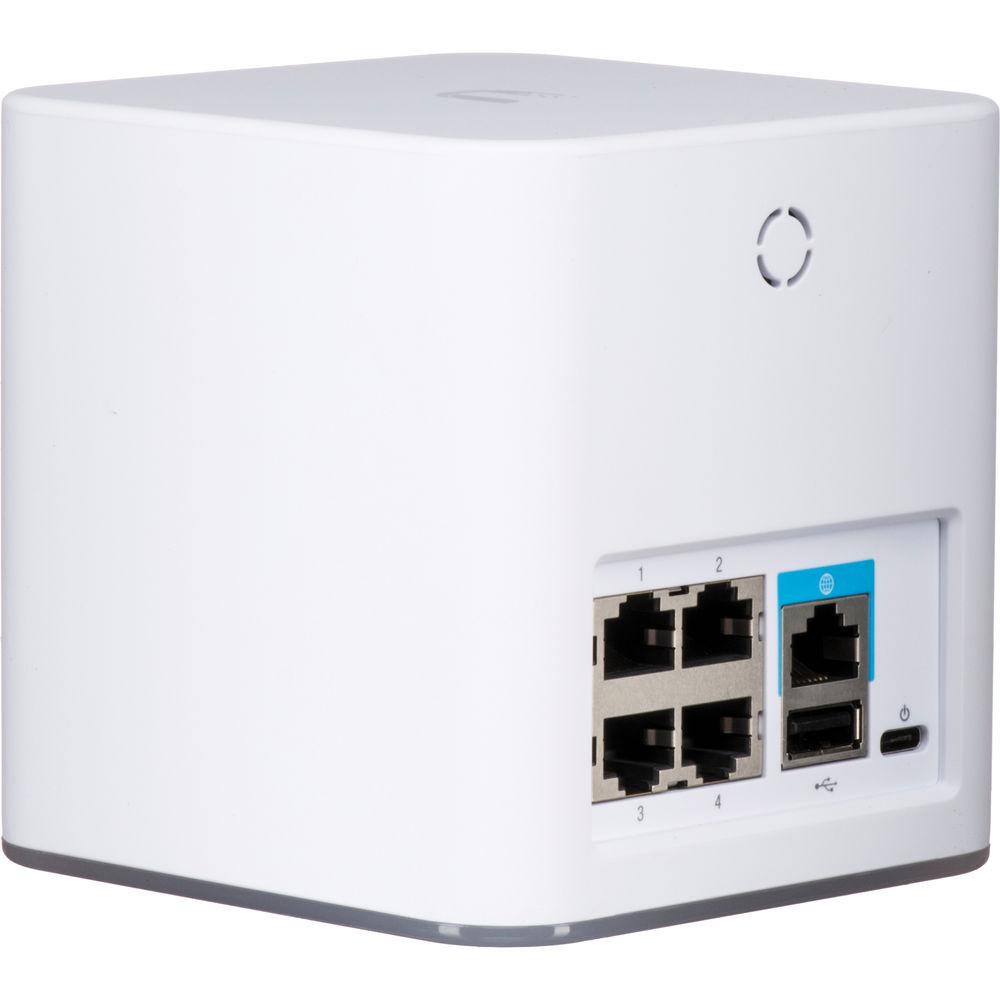

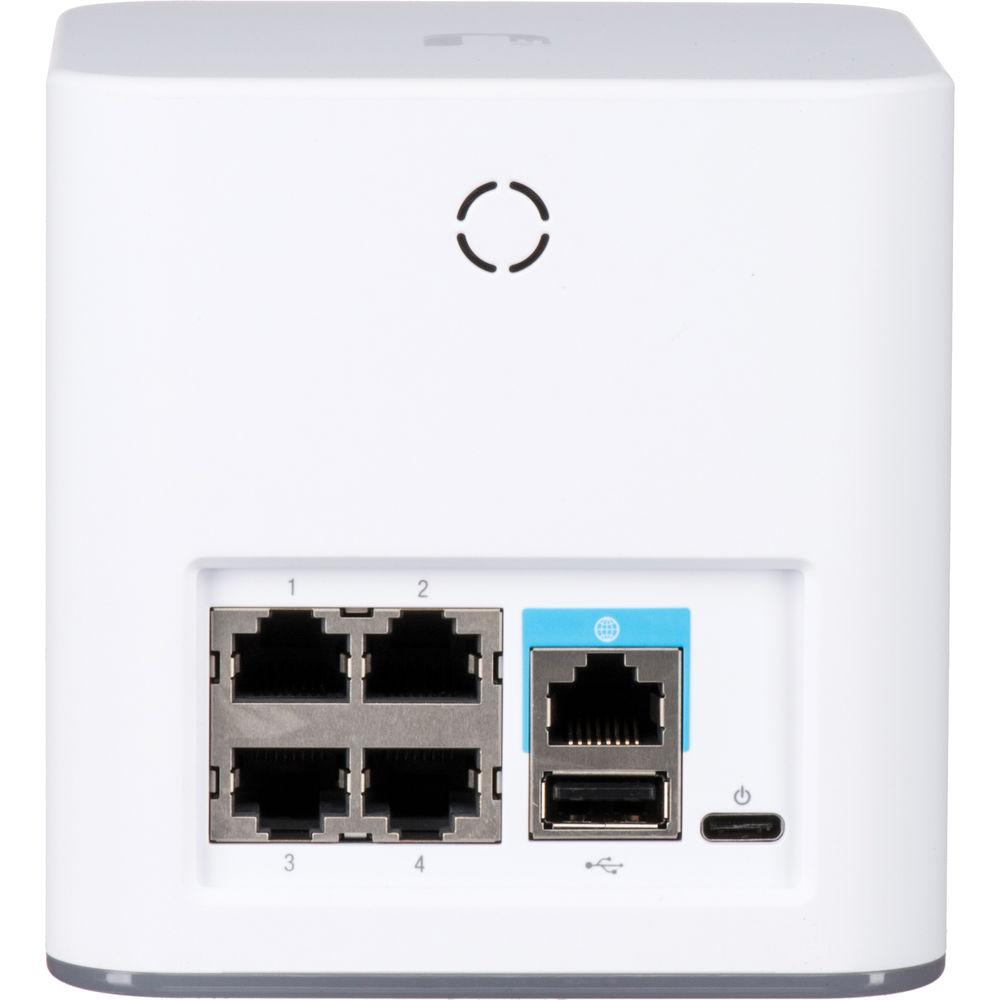

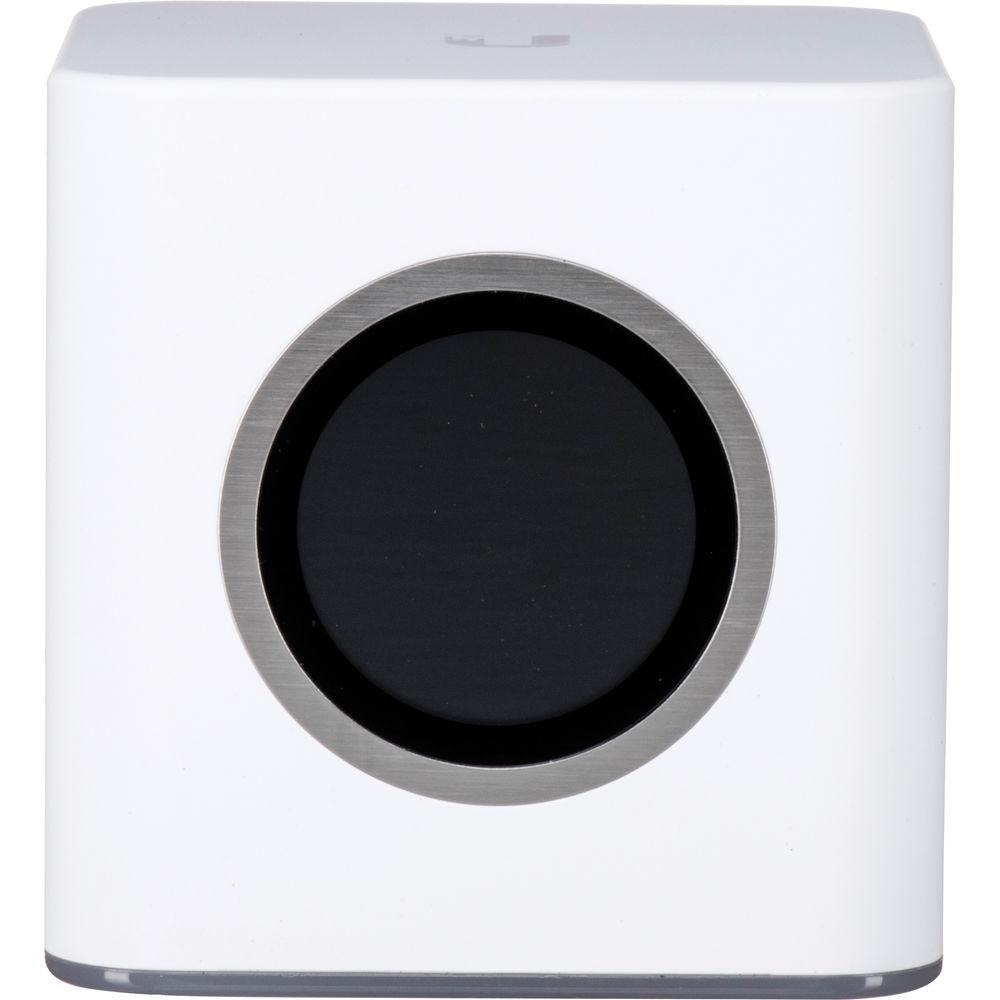

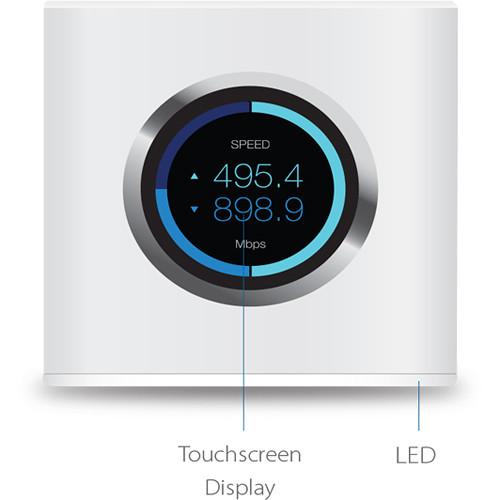

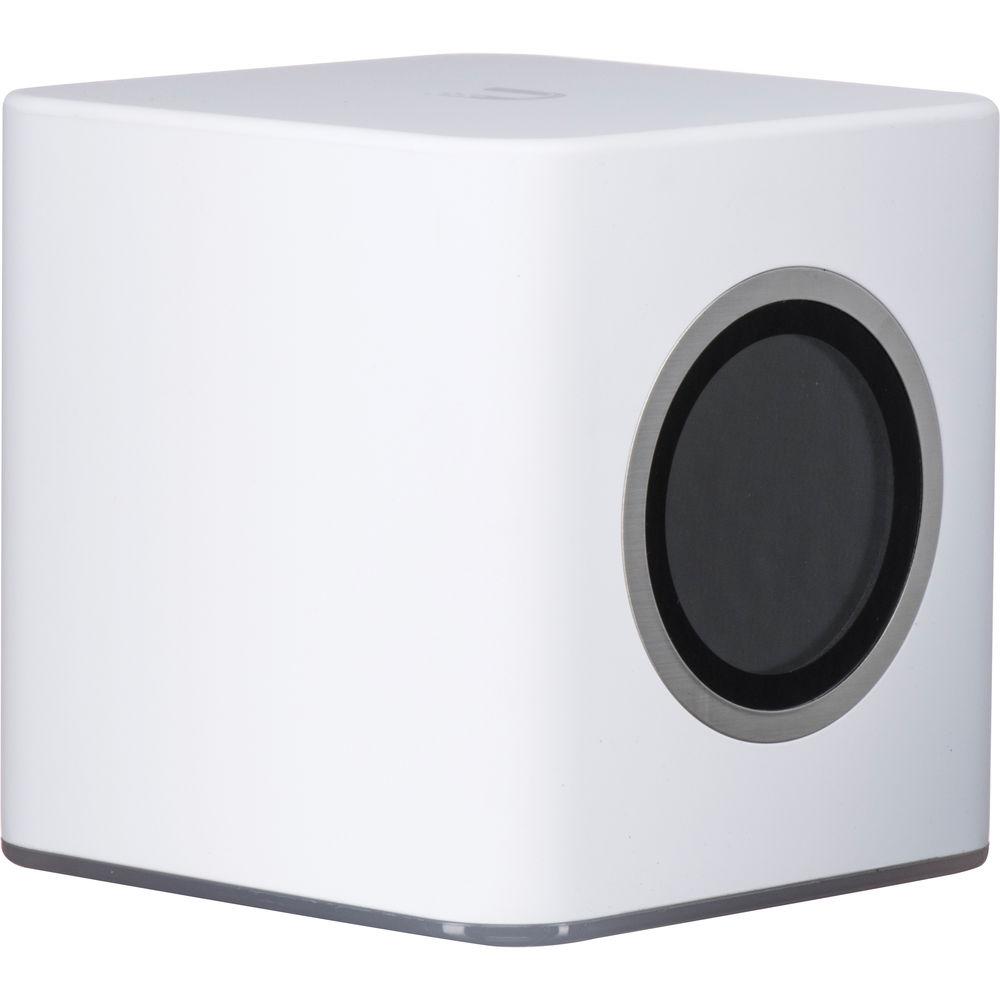

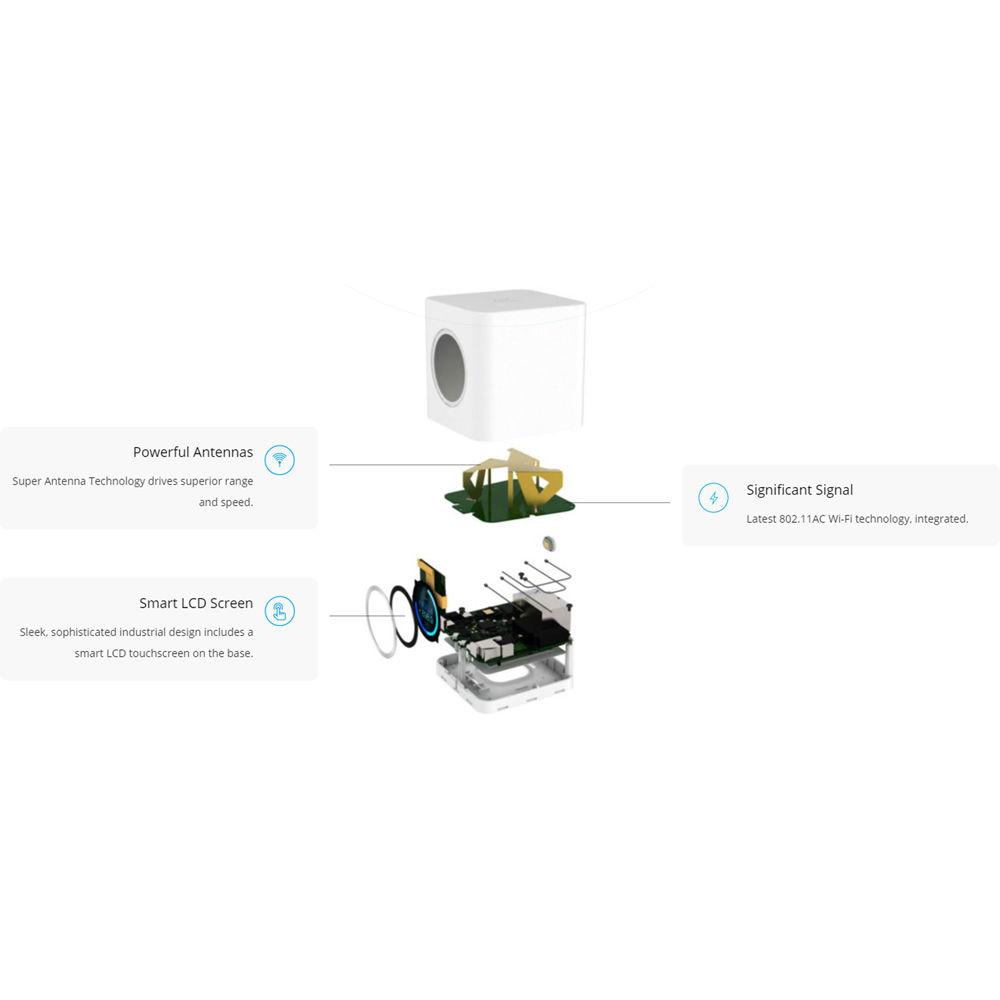

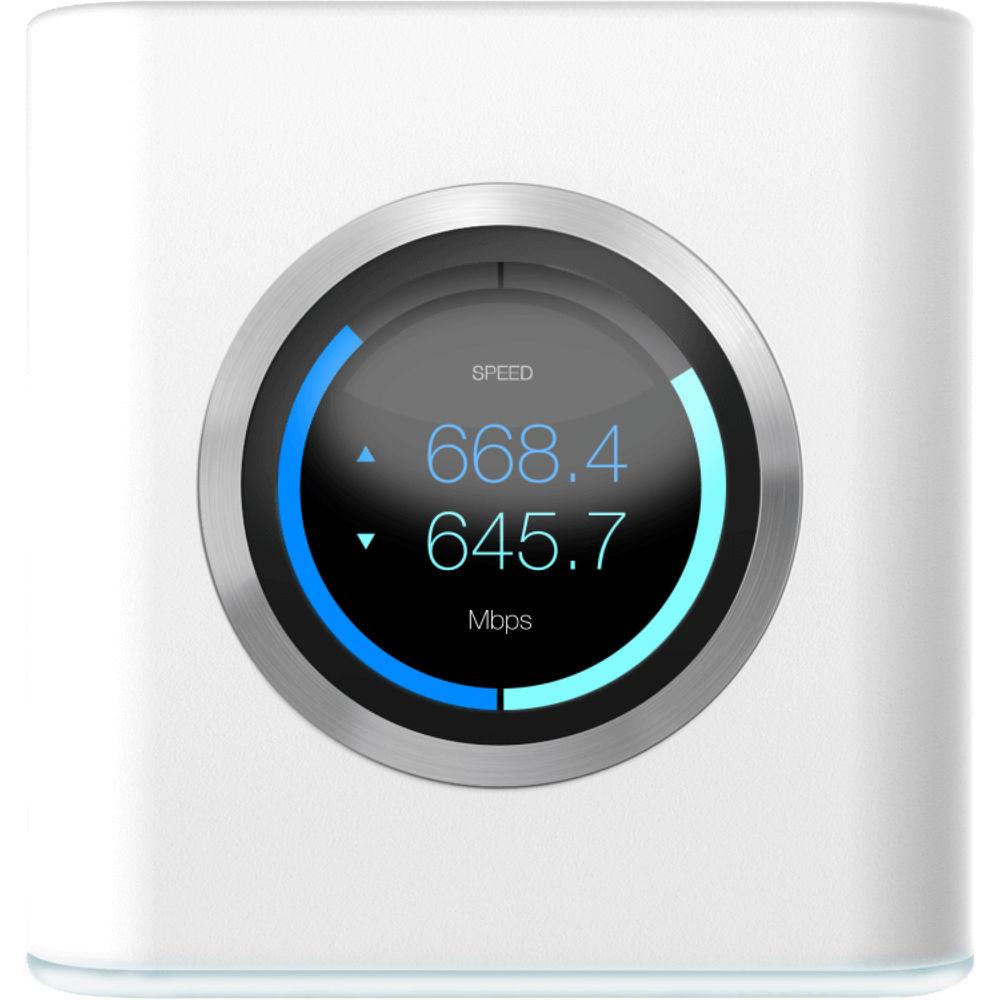

Product description What is Mesh? Read More Transform your Wi-Fi with the AFi-R AmpliFi High Density Home Wi-Fi Router from Ubiquiti Networks. This aesthetically pleasing router can be the centerpiece of an end table as it features a white plastic housing complete with a 1.6" display depicting various aspects of the network. This AmpliFi router comes compatible with 802.11a/b/g/n/ac Wi-Fi network standards and operates on the 2.4 GHz band supporting data speeds of up to 450 Mbps and the 5 GHz band supporting data speeds up to 1300 Mbps. Additionally users benefit from up to 26 dBm transmit power along with a dual-band tri-polarity antenna providing a strong, reliable signal. Along with enhanced wireless connectivity, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports located on the back of the router. - Intuitive Wi-Fi System
- AmpliFi is more than a common home router: it's the ultimate Wi-Fi system. With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring ubiquitous Wi-Fi coverage to any home.
- Perfected User Experience
- One intuitive app allows instant setup, powerful reporting metrics, and guest access. Out of the box, the AmpliFi router and extenders are pre-paired to work seamlessly as a Wi-Fi system. The smart touchscreen display combined with the Bluetooth capabilities of the router provide an instant setup experience using any Android or iOS smartphone.
- AmpliFi High Density
- The AmpliFi HD (High Density) Router and Extender Kit includes a router base station and two wireless HD extenders for ultimate Wi -Fi performance and coverage throughout your home. The HD Kit provides enhanced wireless performance in an innovative design. The router features an intuitive touchscreen display and the extenders feature a unique adjustable Super Antenna.
UPC: 810354026089 In the Box AMPLIFI AFi-R AmpliFi High Density Home Wi-Fi Router Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMPLIFI AFi-R AmpliFi High Density Home Wi-Fi Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMPLIFI AFI-R Specs | | | Enclosure Characteristics | Plastic (PC) | | Management Interface | Ethernet or Wi-Fi | | Networking Interface | 1 x WAN
4 x LAN
Wi-Fi / Gigabit Ethernet | | Power Consumption | 11 W (max.) | | Power Method | 9 V USB | | Power Supply | 9 V, 1.7 A USB adapter | | Voltage | 9 V ± 10% | | ESD/EMP Protection | ± 24 kV air/contact | | Buttons | 1 x Reset to defaults | | Antennas | 1 x Dual-band antenna, tri-polarity | | LEDs | White LED | | Display | 1.6" / 40.6 mm diagonal
240 x 240, 212 ppi
G+F touch
Full color | | Wi-Fi Standards | 802.11a/b/g/n/ac | | MIMO | 3x3 | | Data Rates | 2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps | | Power Save | Supported | | Wireless Security | WPA2-PSK AES/TKIP | | Temperature & Humidity | Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95% non-condensing | | Certifications | FCC / CE / IC | | Suggested Max. TX Power | 26 dBm | | Supported Data Rates (Mbps) | 802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | | Dimensions | 3.91 x 3.85 x 3.92" / 99.5 x 97.8 x 99.6 mm | | Weight | 14.46 oz / 410 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 7.5 x 6.4 x 6.4" |
