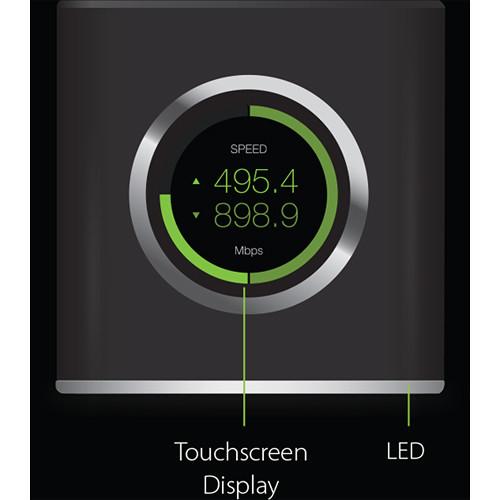

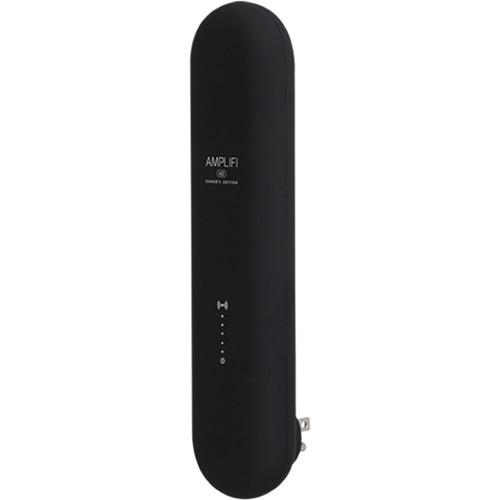

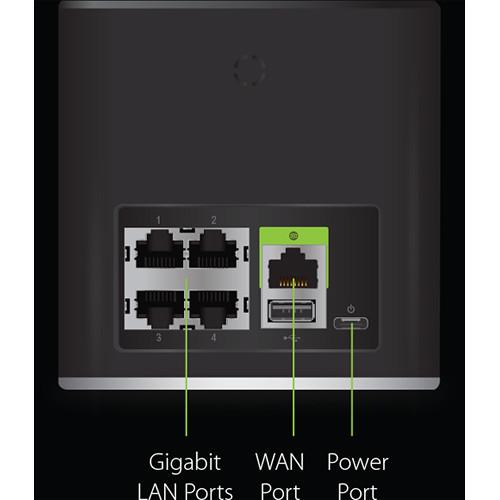

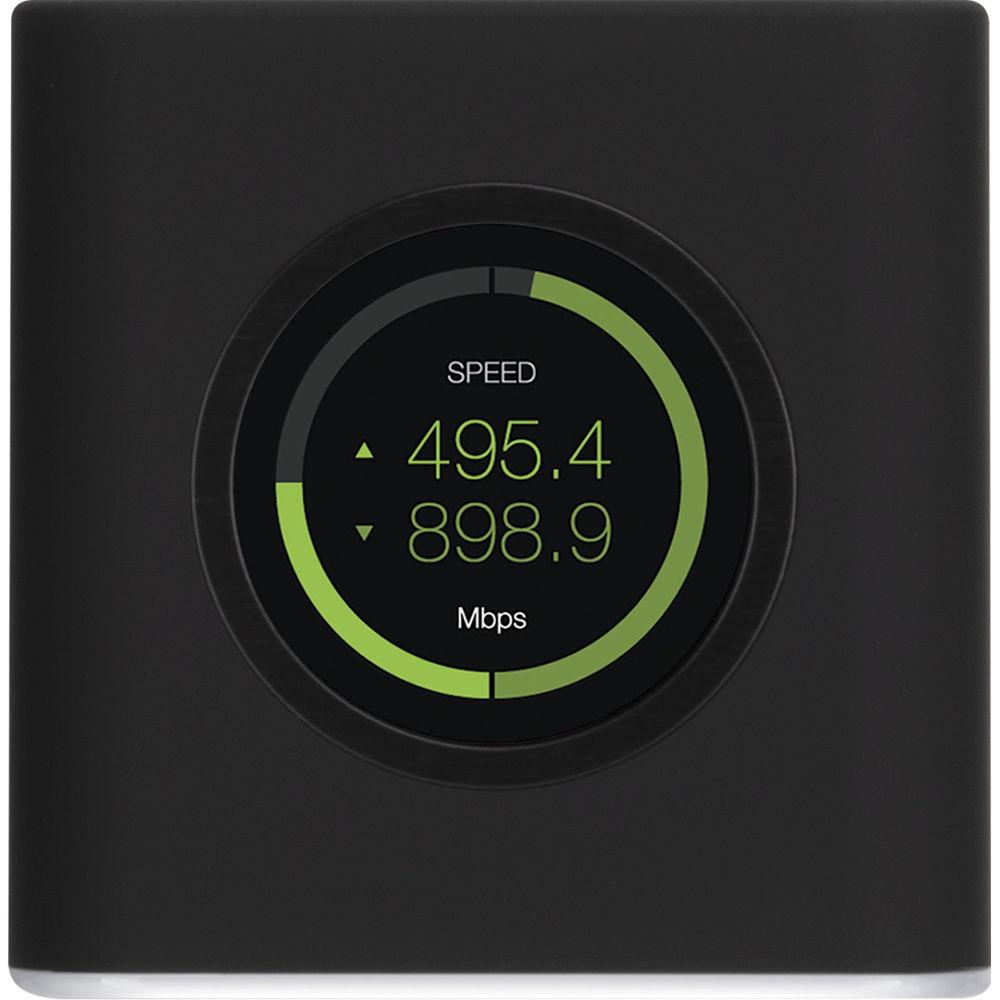

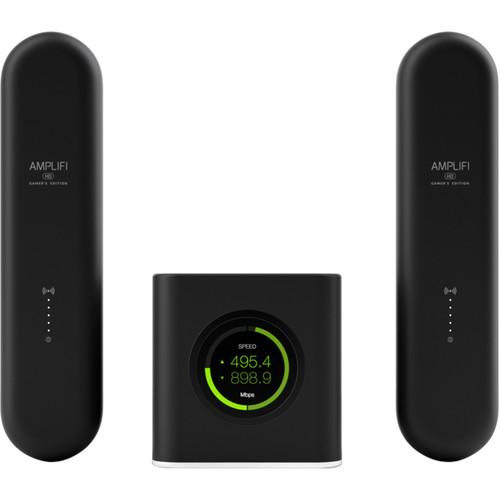

Product description What is Mesh? Read More Boost your online gaming performance with the Gamer's Edition Wi-Fi System from AmpliFi. This whole-home mesh Wi-Fi system includes a base station with a color touchscreen, along with a pair of MeshPoint wireless nodes that plug into standard wall outlets. Capable of up to 5,250 Mb/s of total data throughput, the dual-band Gamer's Edition Wi-Fi System supports the Wi-Fi 5 standard (802.11ac) and features a GeForce NOW QoS mode, which is designed to adjust the network for optimal gaming performance. The Gamer's Edition base station comes equipped with four Gigabit Ethernet LAN ports and a Gigabit Ethernet WAN port, while the MeshPoint nodes feature LED indicators for signal strength. The plug-in nodes can also be rotated up to 270° to optimize antenna orientation. - Optimized for Low Latency
- Optimized for cloud gaming services, including NVIDIA's GeForce NOW free beta, AmpliFi HD Gamer's Edition utilizes multiple self-configuring radios and advanced antenna technology to help deliver whole-home, low-latency Wi-Fi coverage.
- GeForce NOW QoS Mode
- Developed by Ubiquiti with NVIDIA's support, GeForce NOW QoS mode is designed to adjust networks for optimal game streaming performance. The QoS implementation offers gamers a simple solution for detecting latency or frame loss issues, resulting in an optimized experience when other traffic is present on the network.

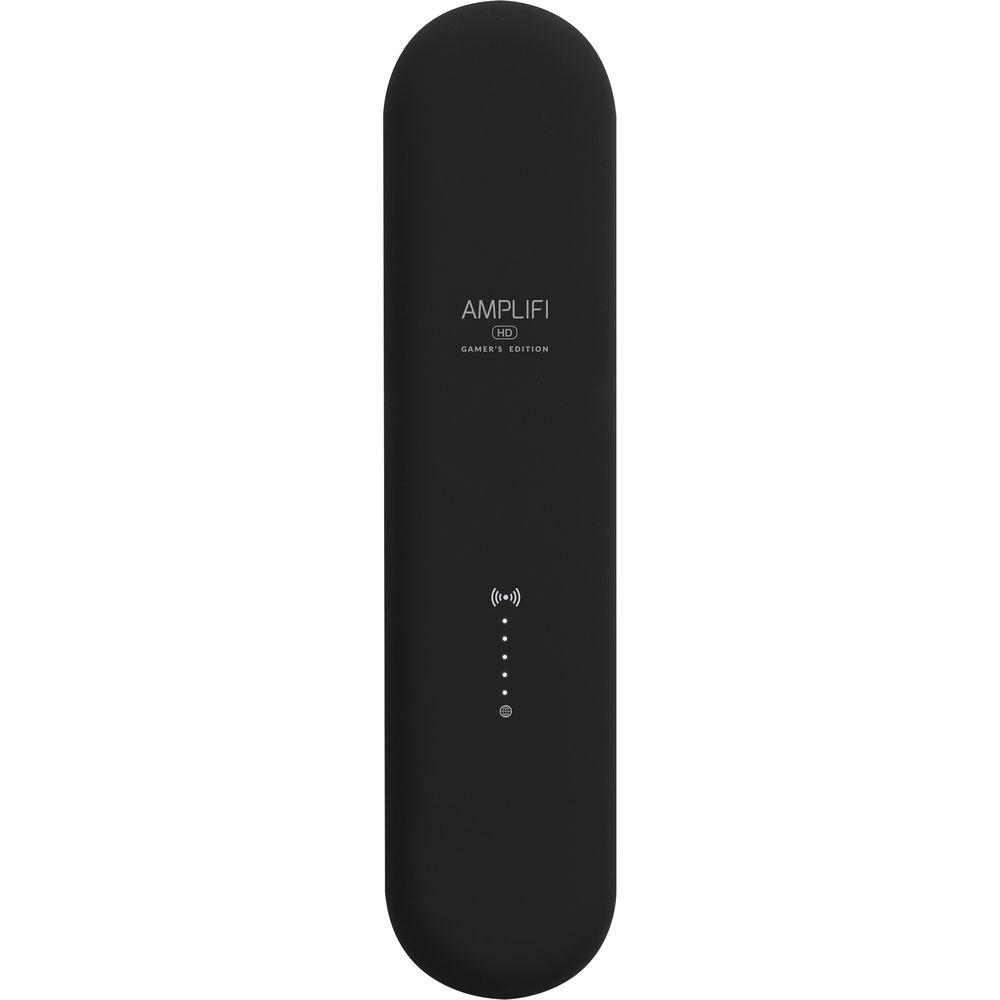

- Adjustable Node Antenna
- Adjust the antenna on the MeshPoint node up to 270° for optimal performance.
- Wi-Fi Mesh Setup

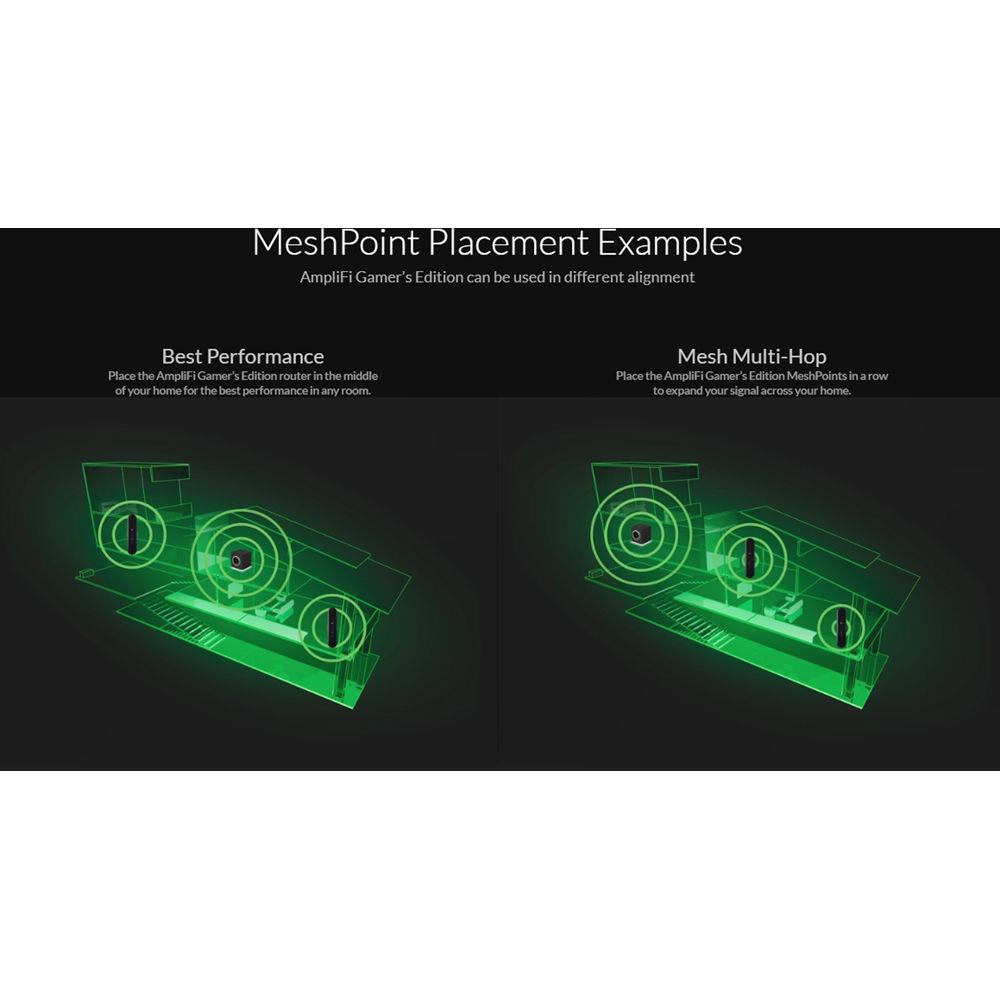

- Create a full mesh network to cover a large home with the AmpliFi HD Gamer's Edition Wi-Fi System. Examples include a central router with flanking MeshPoint nodes, or a mesh multi-hop setup with the router at one end of the house and the nodes placed in the center and opposite end of the home.
- AmpliFi App
- Available for download on Android and iOS smartphones, the AmpliFi app boasts features such as network setup, configuration, reporting metrics, parental controls, remote access, and guest access.

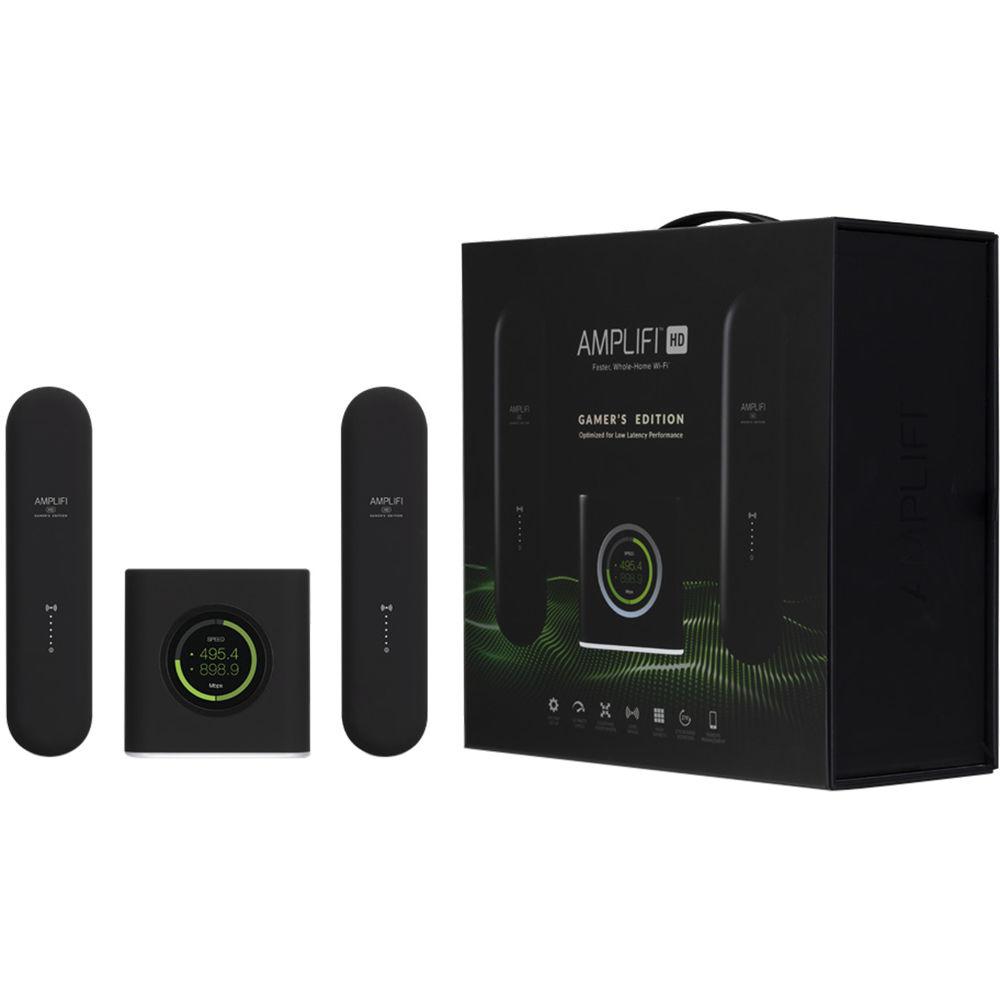

UPC: 817882026697 In the Box AMPLIFI Gamer's Edition Wi-Fi System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMPLIFI Gamer's Edition Wi-Fi System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMPLIFI AFI-G Specs | | | Standards | 802.11ac | | Wi-Fi Bands | 5 GHz and 2.4 GHz (Dual-Band) | | Data Rate | Base Station and Nodes: 1750 Mb/s (Each) | | MIMO | Base Station and Nodes: 6 Chains (Each) | | Wireless Security | WPA2-PSK
AES/TKIP | | Supported Data Rates | 802.11ac: 13-1300 Mb/s
802.11n: 6.5-450 Mb/s
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s
802.11b: 1, 2, 5.5, 11 Mb/s
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s | | | | Antenna | Base Station and Nodes: 1 x Dual-Band Antenna, Tri-Polarity (Each) | | No. of Radios | Base Station and Nodes: 2 (Each) | | Maximum TX Power | Base Station and Nodes: 26 dBm | | Ports | Base Station: 1 x 10/100/1000 Mb/s Ethernet WAN
4 x 10/100/1000 Mb/s Ethernet LAN
1 x USB Type-A | | Display | Base Station: 1.6" / 40.6 mm Diagonal, 240 x 240 Pixels, 212 ppi, G+F Capacitive Touchscreen, Color | | Buttons | Base Station and Nodes: Reset | | ESD/EMP Protection | Base Station and Nodes: ±24 kV Air/Contact | | Maximum Power Consumption | Base Station: 11 W | | Power Save Mode | Supported | | | | Certifications | FCC / CE / IC | | Operating Temperature | 14-131°F / -10-55°C | | Operating Humidity | 5-95% (Noncondensing) | | Dimensions | Base Station: 3.91 x 3.85 x 3.92" / 99.5 x 97.8 x 99.6 mm (Base Station)
Nodes: 8.98 x 2.13 x 2.25" / 228 x 54 x 57.1 mm | | Weight | Base Station: 14.46 oz / 410 g
Nodes: 5.82 oz / 165 g | | | | Package Weight | 5.515 lb | | Box Dimensions (LxWxH) | 11.6 x 11.6 x 5.3" |
