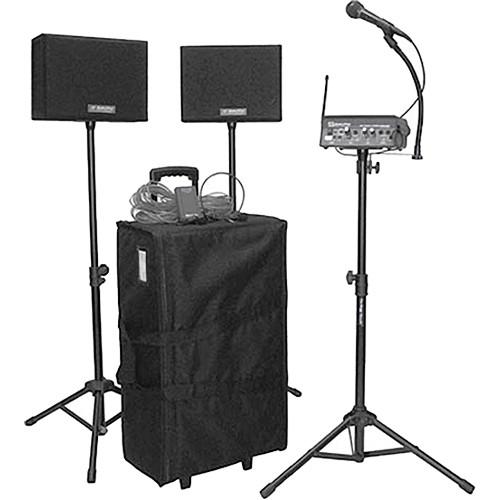

User Manual for AmpliVox Sound Systems SW230A Voice Carrier Portable PA System Click to enlarge the picture
Contents of the user manual for the AmpliVox Sound Systems SW230A Voice Carrier
- Product category: Portable PA Systems AmpliVox Sound Systems
- Brand: AmpliVox Sound Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AmpliVox Sound Systems Portable PA Systems
|
User manual for the AmpliVox Sound Systems SW230A Voice Carrier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AmpliVox Sound Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AmpliVox Sound Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AmpliVox Sound Systems product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The AmpliVox SW230A Voice Carrier Portable PA with Lavalier Microphone is a complete, portable P.A. system that stores in a rolling travel case. This system sets up effortlessly and includes an S805A 50-watt multimedia stereo amplifier, two companion speakers, three tripod stands, a lavalier microphone with 15' cable, a gooseneck microphone stand, a wireless microphone transmitter, built-in wireless receiver, speaker cables and rolling storage case. The S805A features inputs for a microphone and line audio device with individual level and tone control dials. All the components in the system are compact and completely manageable with a single operator. The SW230A Voice Carrier is ideal for mobile presentations, public instruction and more. - Auxiliary input stereo jack with separate volume and tone controls for a CD player, tape player or LCD computer projector.
- Line out jack for a tape recorder. You can record your presentation as it is happening.
- 3 mic inputs (dynamic, condenser with phantom power, WIRELESS) can be used at the same time.
- Dual Wireless Capability - SW805A wireless amplifier with built-in wireless receiver allows 2 people to be wireless simultaneously using a second external wireless mic kit.
- 2 speaker jacks - each can drive 4 to16 ohm speaker loads. Standby mode when jack is empty reduces power drain and prolongs battery life.
In the Box AmpliVox Sound Systems SW230A Voice Carrier Portable PA System S805A Amplifier with Wireless Receiver 16-Channel UHF Microphone Transmitter 2 x Companion Speakers 3 x Tripod Stands Lapel Microphone Gooseneck Microphone Stand Handheld Microphone 15' Microphone Cable 2 x 40' Speaker Cables Rolling Storage Case 6 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AmpliVox Sound Systems SW230A Voice Carrier Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmpliVox Sound Systems SW230A Specs | | | Power | 50W | | Battery | Alkaline or NiCad
Optional S1460 recharger / AC Adapter or S1465 NiCad battery pack | | Input | Line Inputs with Separate Volume and Tone Controls | | Output | Left and Right Output for True Stereo, Line Out Jack for Recording | | | | Construction | Black Carpeted Cabinet | | Speakers | 6 x 8" Oval Speakers | | Dimensions (HxWxD) | Speakers: 10 x 13.5 x 5" (25.4 x 34.3 x 12.7cm)
Amplifier: 3.25 x 8.50 x 8.50" (82.55 x 215.90 x 215.90mm) | | Weight | Total 45 lbs (20.41kg) | | | | Package Weight | 49.9 lb | | Box Dimensions (LxWxH) | 32.0 x 17.0 x 12.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
